Center Lock Assembly for 3 point Sliding door lock XM-50
Use the arrows or swipe left to view all images for this product
Center Lock Assembly for 3 point Sliding door lock XM-50

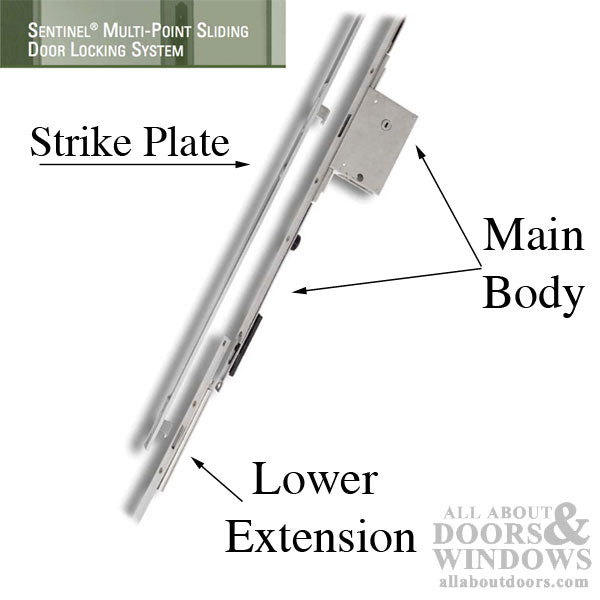

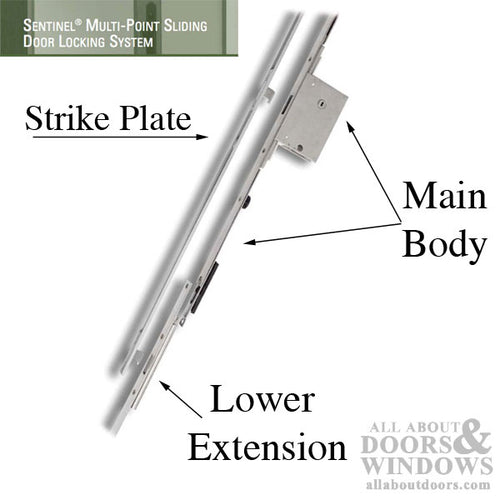

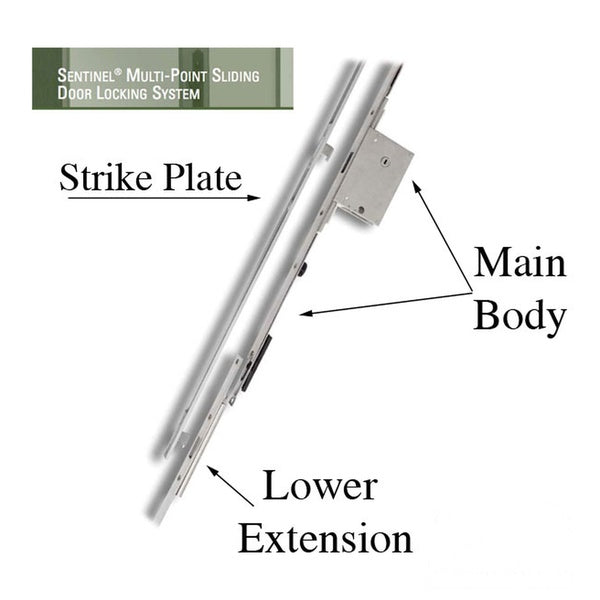

Part Number: $127.40Sliding door center lock assembly for a Multipoint lock with upper and lower attachments.

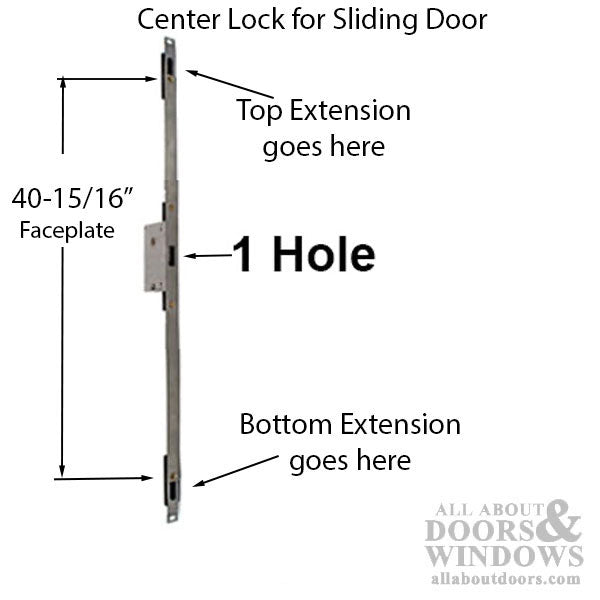

The center lock has only 1 locking point. Lower and upper attachments are added for 2 or 3 point lock.
The Sliding door lock has holes in the faceplate for the hooks to fit into.
The hooks are on the door jamb frame.

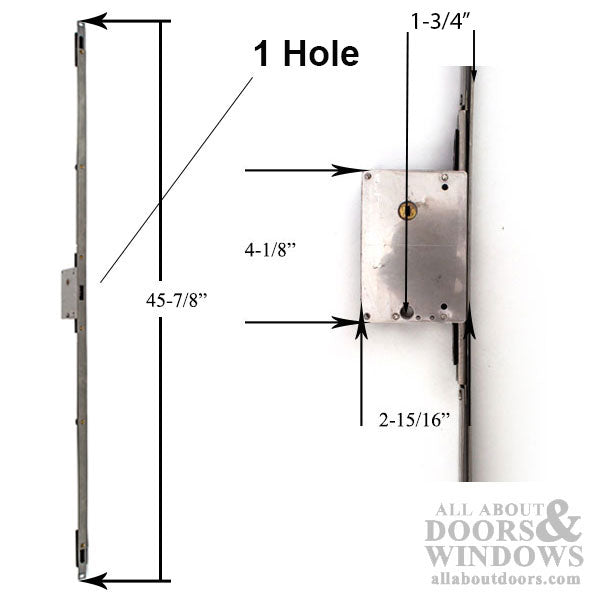

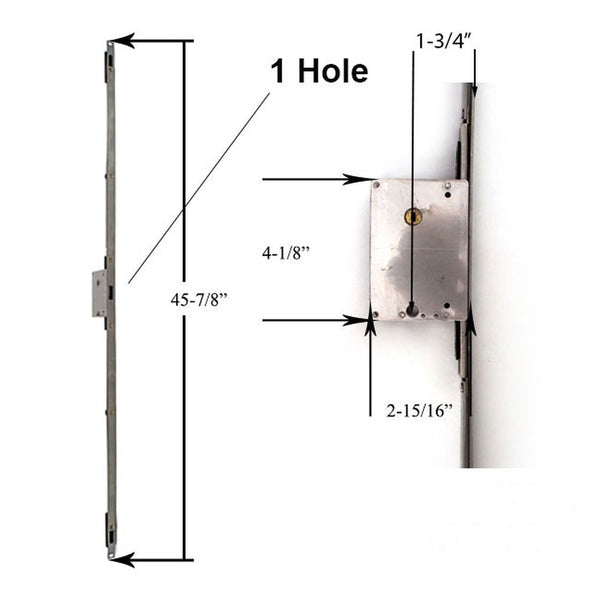

Backset: 1-11/16" (1.692" actual)

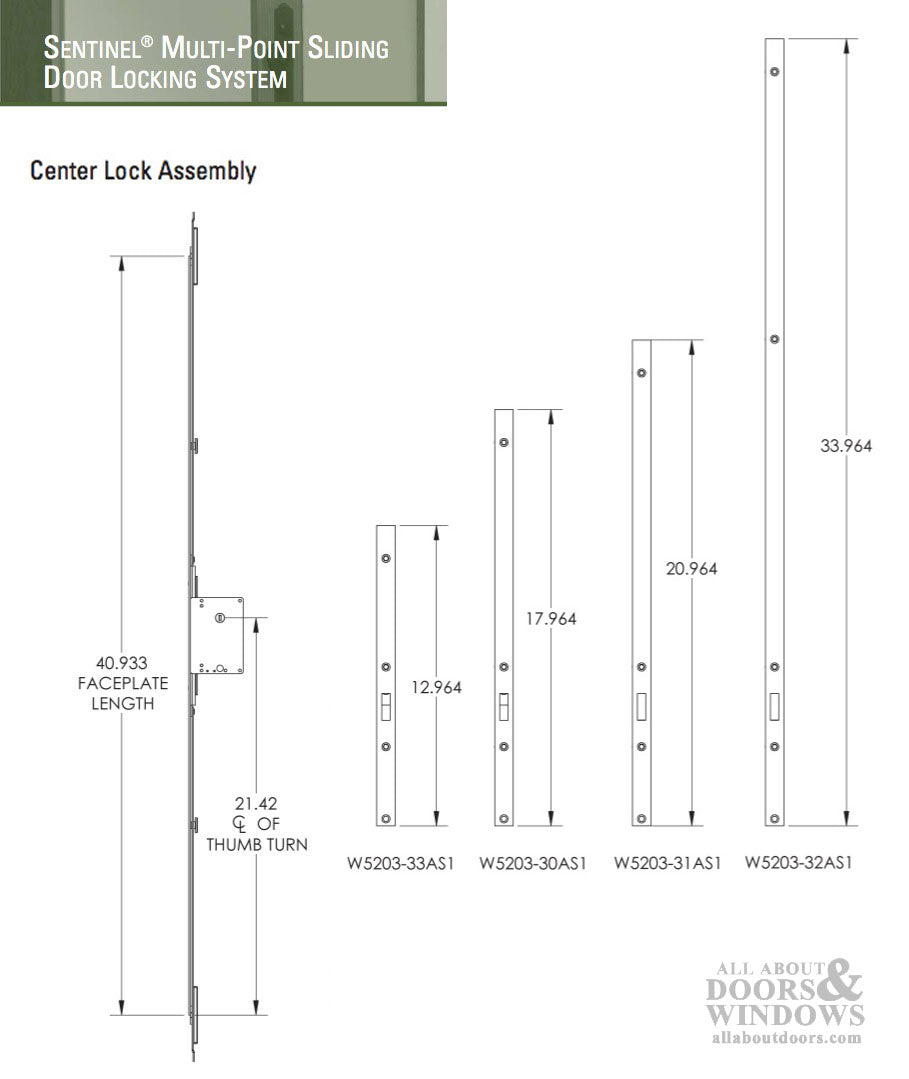

Overall Faceplate Length: 45-7/8"
Faceplate Width: 25/32"
Related Sliding door parts:
40220 - Sliding door Lock 45mm backset
40221 - Extension for 40220
How to Rehand an Ashland Multipoint Lock (Marvin Doors)
Rehanding Ashland Multipoint Locks
