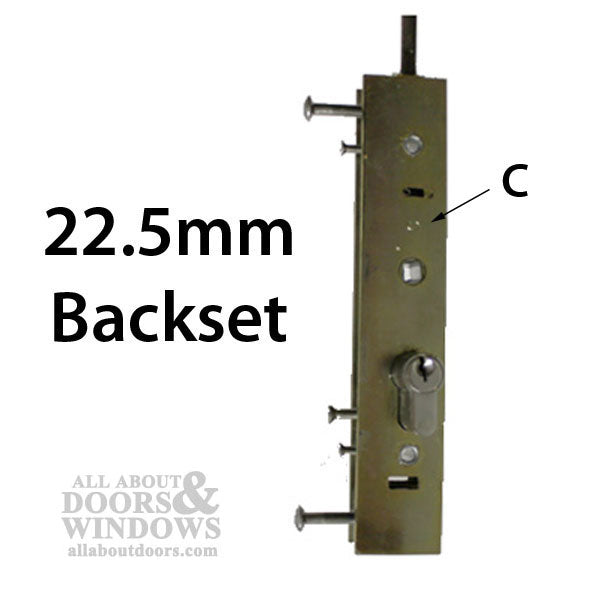

Certainteed Sliding Door Lock 22.5mm - Euro Style Multi 2-point Lock
Use the arrows or swipe left to view all images for this product
Discontinued, replace with 149907

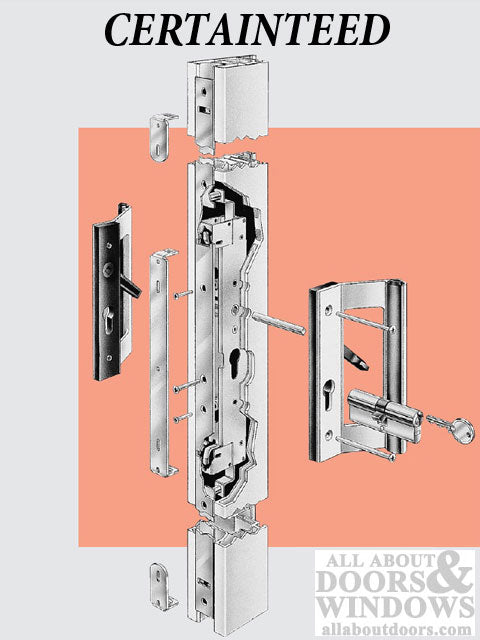

Certainteed Vinyl Sliding Glass door for Rod Version Multi-point lock.
Screws Not Included, shown only for identification of lock

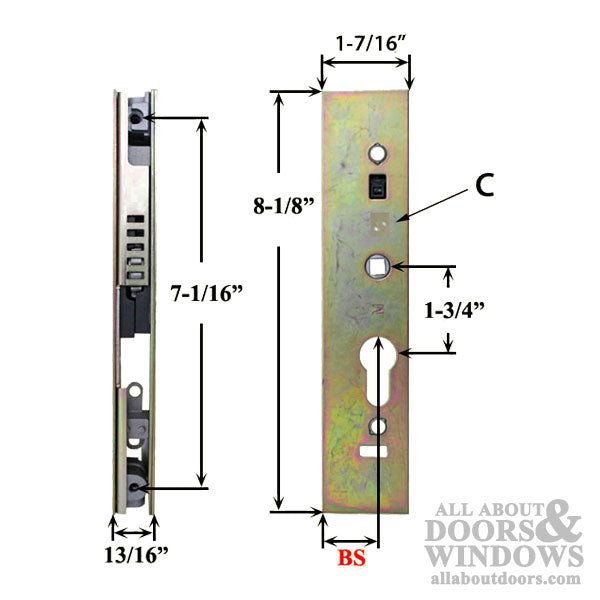

Specifications:
- Cylinder Type: Euro Style 2-3/4 length (70mm) (Sold Separately - Not Included)
- Rod Length: 34-1/4 with threads on one end
- Rod Diameter: 1/4 inch (7mm)
- Handle Spacing: 1-3/4 inch (45mm) Center of handle to center of thumb turn
- Spindle Diameter: 1/4 inch (7mm) Square
- Backset: 7/8 or 0.8858 inch (22.5mm) without face plate
- Locking Bolts: Spaced @ 7-1/16 inch when slid together and away to lock door 8-7/16 Inch
ORIGINAL OPTIONS: NOT Currently Available
- Backset Options: 15.5mm, 18.5mm, 22.5mm, 25mm, 27.5mm Depending on door
- Handle Options: Black, White, Gold, Clear Anodized, Solid Brass
- Keyed or Keyless
- Single or double operating levers
- Shootbolts for head or sill
Priced and sold each
Discontinued, replace with 149907
Certainteed Vinyl Sliding Glass door for Rod Version Multi-point lock.
Screws Not Included, shown only for identification of lock
Certainteed Lock Info:
Cylinder Type: Euro Style 2-3/4 length (70mm) (Sold Separately - Not Included)
Rod Length: 34-1/4 with threads on one end
Rod Diameter: 1/4 inch (7mm)
Handle Spacing: 1-3/4 inch (45mm) Center of handle to center of thumb turn
Spindle Diameter: 1/4 inch (7mm) Square
Backset: 7/8 or 0.8858 inch (22.5mm) without face plate
Locking Bolts: Spaced @ 7-1/16 inch when slid together and away to lock door 8-7/16 Inch
ORIGINAL OPTIONS: NOT Currently Available
Backset Options - 15.5mm, 18.5mm, 22.5mm, 25mm, 27.5mm Depending on door
Handle Options - Black, White, Gold, Clear Anodized, Solid Brass
Keyed or Keyless
Single or double operating levers
Shootbolts for head or sill
RELATED PARTS:
149907 - Certainteed Mortise Lock Body with Adjustable Backset
414040114 - 80mm Keyed Euro Cylinder

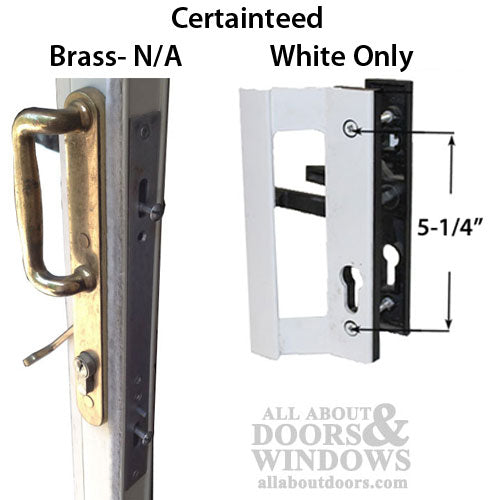

149902 - Original CertainTeed Handles - replacement options available on listing
Priced and sold each
