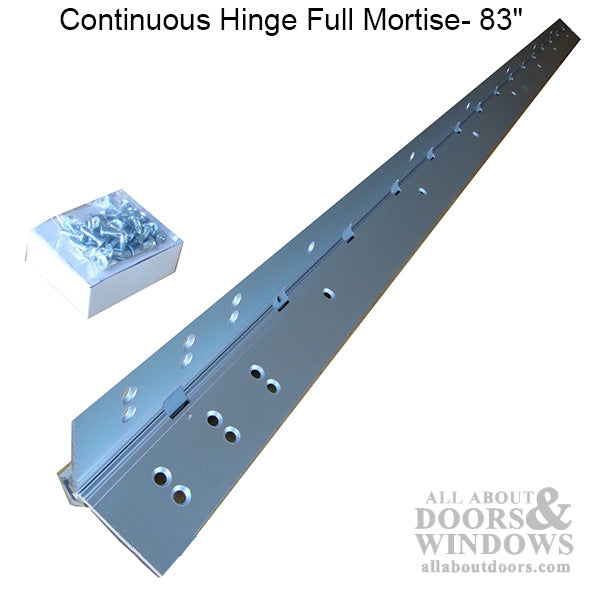

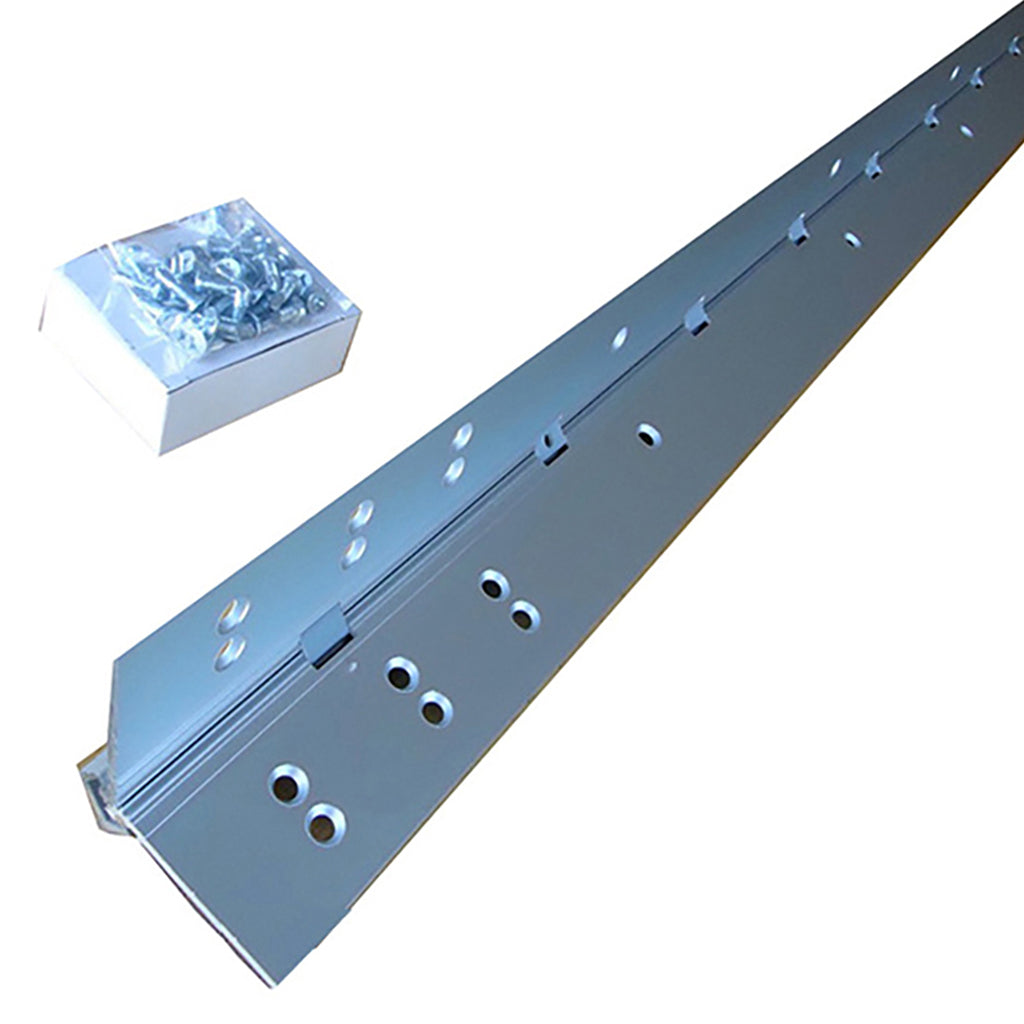

Continuous hinge, 83", Full Mortise, Flush Mount

Part Number:3658304
COLOR: - Aluminum
Please note, this product has been discontinued.
Continuous hinge, 83 inch Full Mortise, Flush Mount with Alignment Stop, 1/4 inch Clearance.

This hinge replaces standard and Pivot hinges to add support and can correct out of square openings

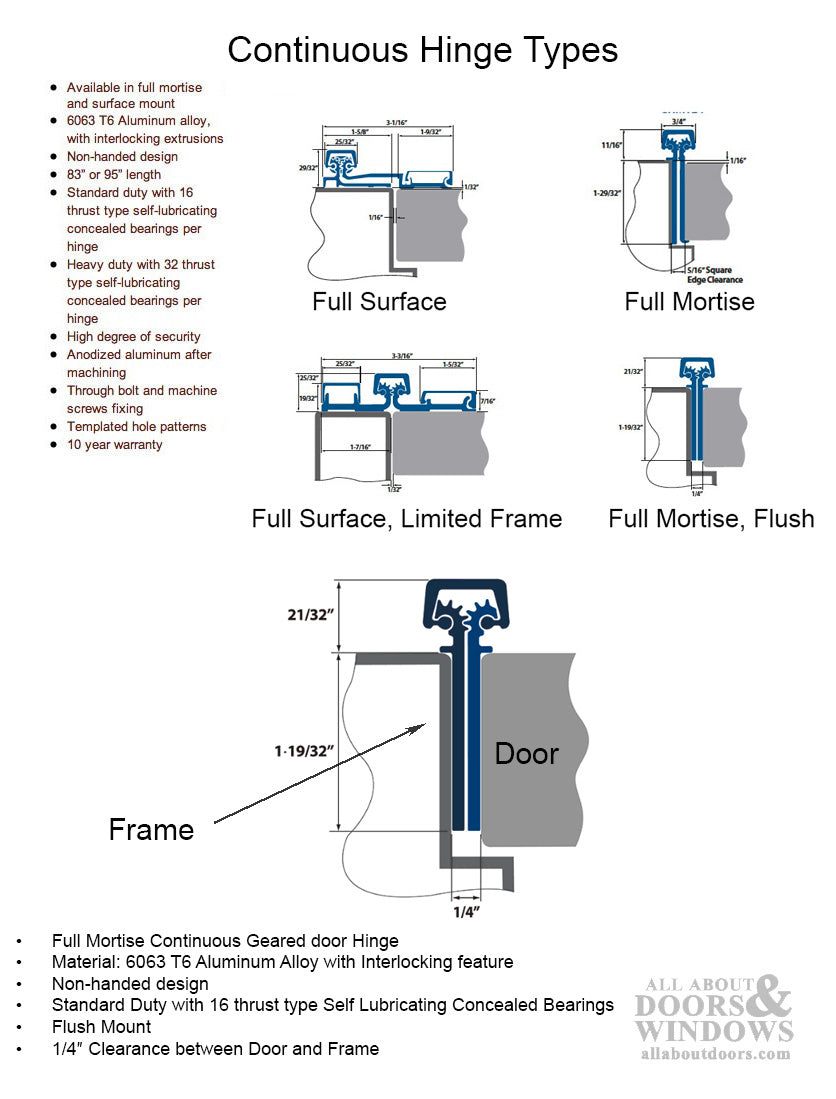

Continuous Hinge, Two Types - Full Mortise or Full Surface, Two Lengths 83 or 95 inch
1. Mortise, Both leaves mount to the inside between door and frame - your hinge application appears to be to tight for the mortise
2. Surface, which both leafs mount to the outside, one to door, one to frame - this looks like what you would use if the frame is wide enough.

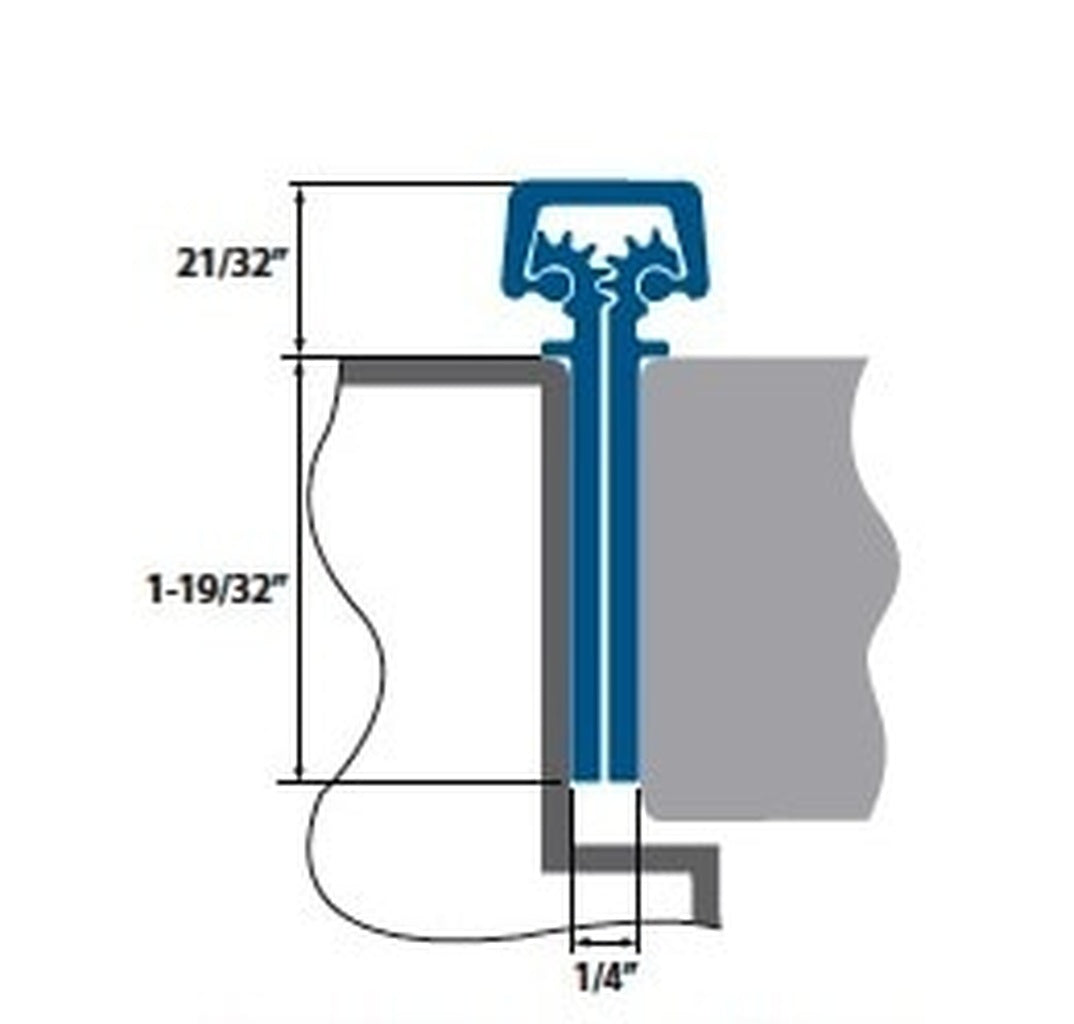

Full Mortise Type Specifications:
Hinge Type: Full Mortise
Clearance between Door and Frame: 1/4 inch
Alignment Stop: Yes, Each leaf
Hinge Width: 1-19/32 inch
Hinge Projection: 21/32 from door panel
Color Finish: Bronze or Aluminum

Cutting To Length:
If the hinge must be cut shorter, cut only one end, using a hacksaw.
The hinge should be in a closed position, either on its side with the cap closest to you or with the cap standing up, so the saw cuts through the cap first.
If you cut off one of the set screw bearings, reinstall it on the hinge.
The hinge must be installed with the cut end on the bottom. This allows any metal chips to work out after installation.
