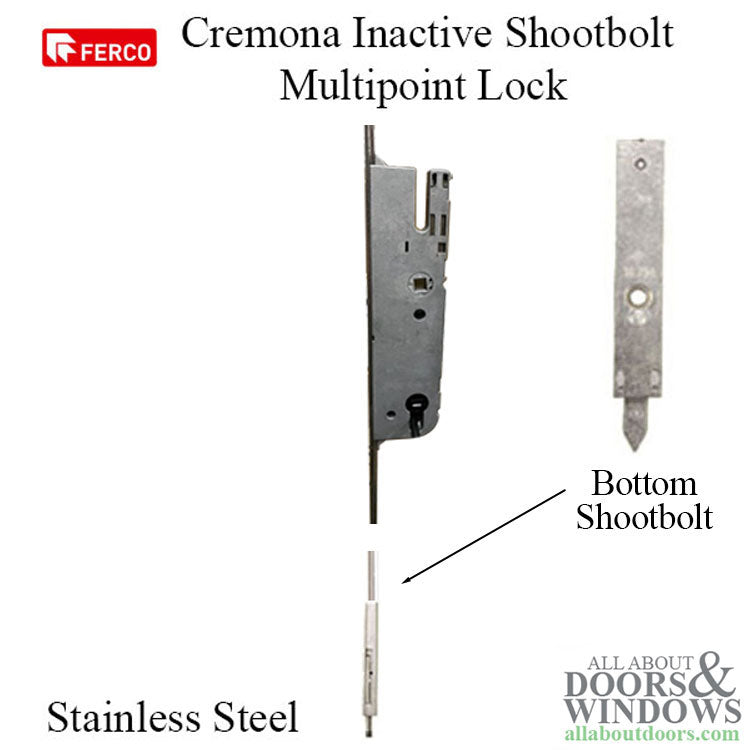

Cremona 35/92 Inactive Shootbolt, Passive Door Shootbolts only, Silver Ferguard
Part Number: Price: $170.80Cremona 35/92 Inactive Multipoint Lock with Bottom Shootbolt attached, No Top Shootbolt
This is for the Inactive / Passive Door only that has an upper and lower Shootbolt
Faceplate has 1 hole for the deadbolt.
There is no hole for latch, this lock requires an astragal and strike plate.

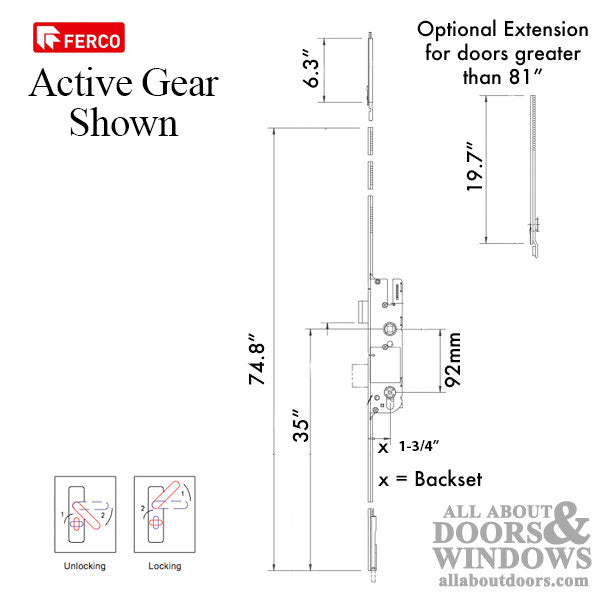

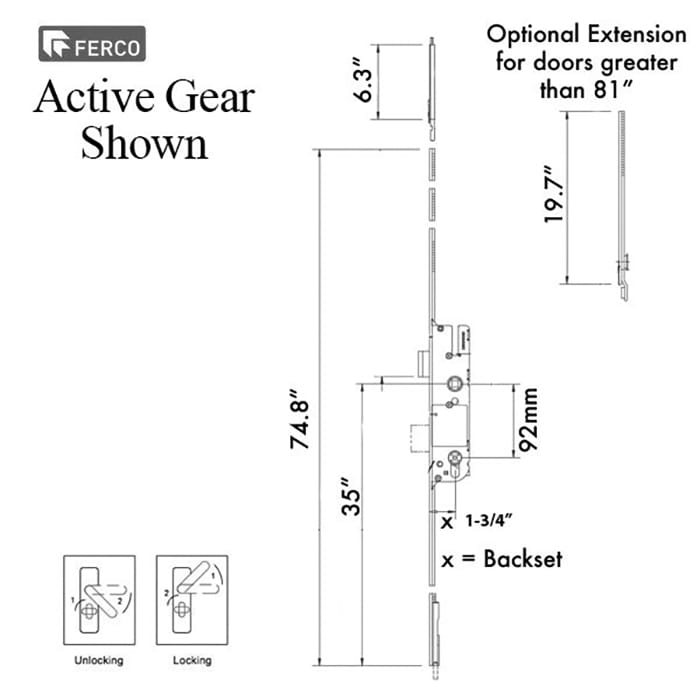

Backset: 1-3/8 inch (35mm)
Handle Height: 35 inch (889)
Overall Length: 74-3/4 inch (1899mm)
Finish: Silver Ferguard
Related Inactive Hardware:
G-16798-00-0 - Reversing Gear, Cremona (top shootbolt)
40325 - Extension, Cremona (doors > 6-8)
9-29525-00-0-0 Brass Sleeves - Round Socket Strike
6-U-0050-00-0 Silver Attachment Screws - 20/bag
This is for the Inactive / Passive Door only that has an upper and lower Shootbolt
Faceplate has 1 hole for the deadbolt.
There is no hole for latch, this lock requires an astragal and strike plate.
Backset: 1-3/8 inch (35mm)
Handle Height: 35 inch (889)
Overall Length: 74-3/4 inch (1899mm)
Finish: Silver Ferguard
Related Inactive Hardware:
G-16798-00-0 - Reversing Gear, Cremona (top shootbolt)
40325 - Extension, Cremona (doors > 6-8)
9-29525-00-0-0 Brass Sleeves - Round Socket Strike
6-U-0050-00-0 Silver Attachment Screws - 20/bag
