Cremona 55/92 Inactive Shootbolt, Passive Door 2 Point lock - Stainless Steel

Part Number:6-UI270-55-0-SS Price: $249.06

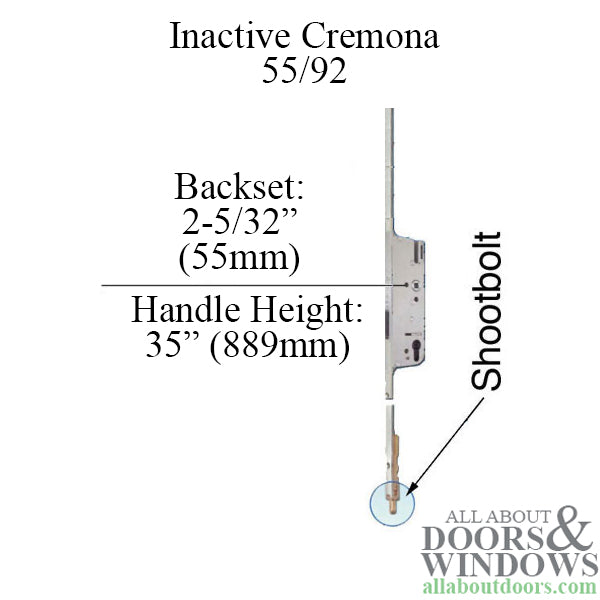

G-U 55/92 Cremona Shootbolt, 2 point mortise lock;  Passive Door



Fixed bottom Shootbolt

Handle Height: 35 inches (889mm)

Length:  74.80 inches  (1900mm)

Key BELOW handle.

Backset: 2-3/16 inch (55mm)

Faceplate Width:  16mm

Color / Finish: Stainless Steel

Cylinder: American Type

The mortise lock case may be stamped with part number 55/92.

SEE additional images.
