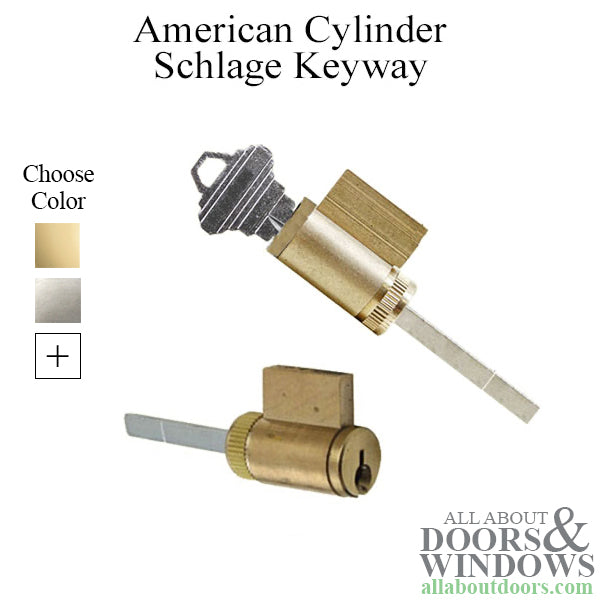

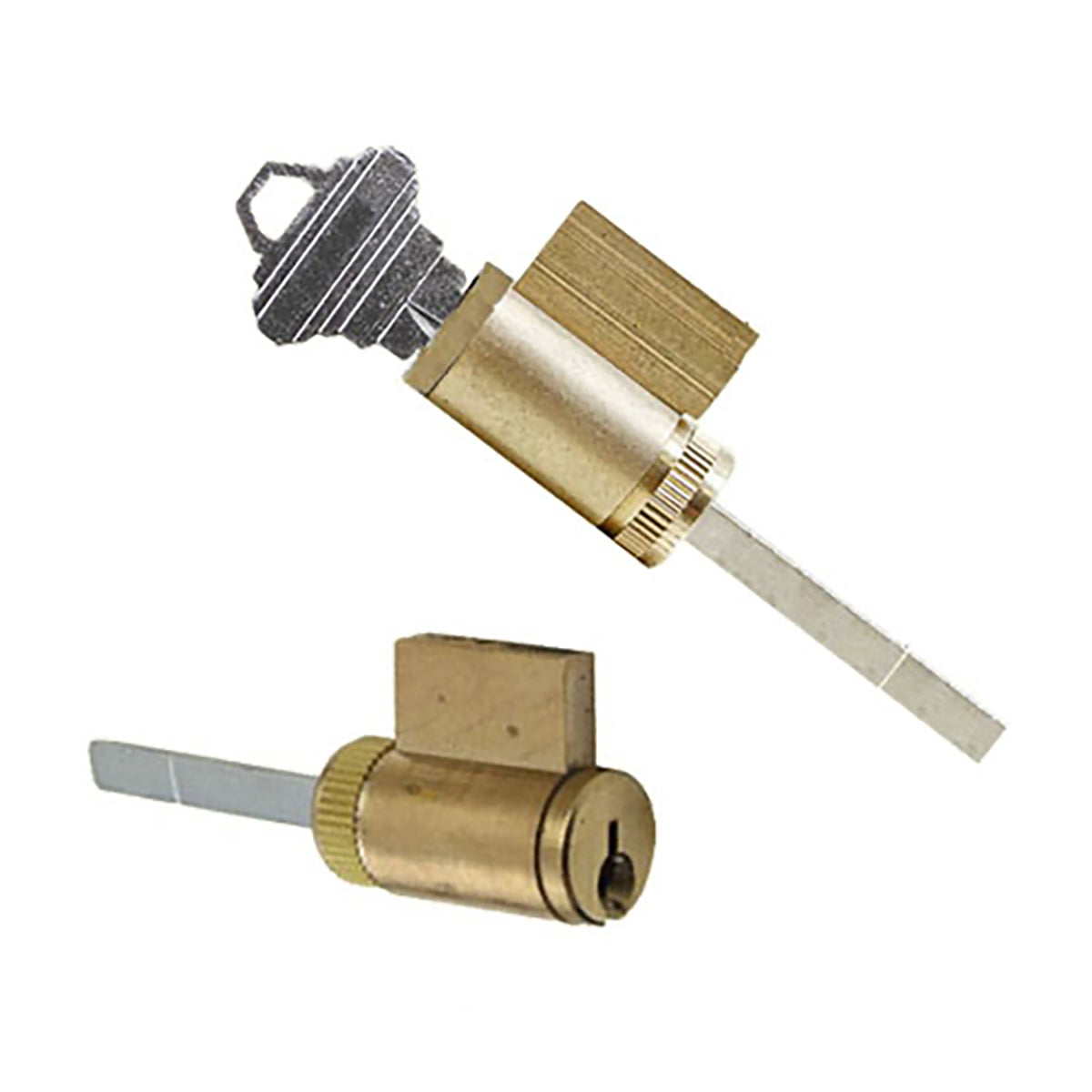

Replacement cylinder for Hinged or sliding patio door handle set.

Type: American Cylinder with Flat Tail piece

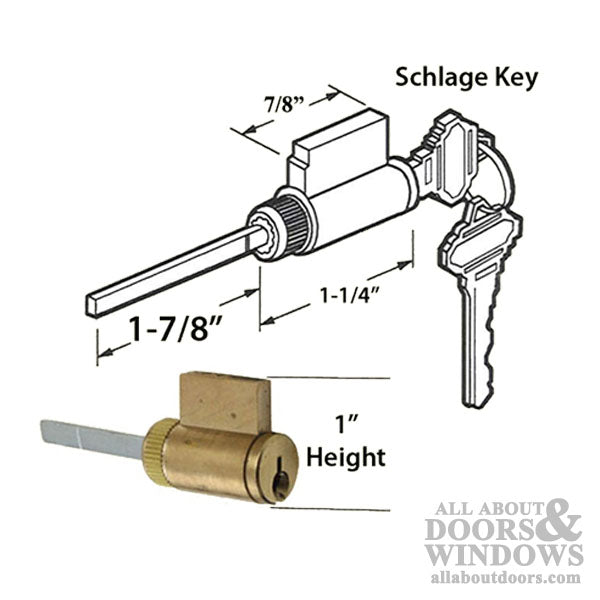

Tail piece length: 1-7/8 inch, with break off mark at 1-3/8
Fits: 2-1/4 or 1-3/4 inch thick doors
Cylinder Height: 1 inch, works with Ashland, Marvin, Pella , G-U, Ferco and others
Keyway: Schlage 5-Pin SC1, Rekeyable
Keys: 2 cut keys with lock

Related Parts:
Standard Cylinders with Break Away Tail Piece 1/4 inch increments
15031 - Schlage Keyway KD
15032 - Schlage Keyway KA
15033 - Weiser Keyway KD ( Kwikset will also work )
15034 - Weiser Keyway KA ( Kwikset will also work )

NOTE:
Tail piece length varies by manufacture, hardware and application.
Yours may not be the same length and will need to be cut shorter.

If you need a longer tail piece, contact office
