Discontinued 72-1/2 - 80-1/4 inch Shootbolt / Tongue, 45mm backset - See Replacement Options
Part Number: 499027599 Price: $0.00Discontinued - Replace with 4990281

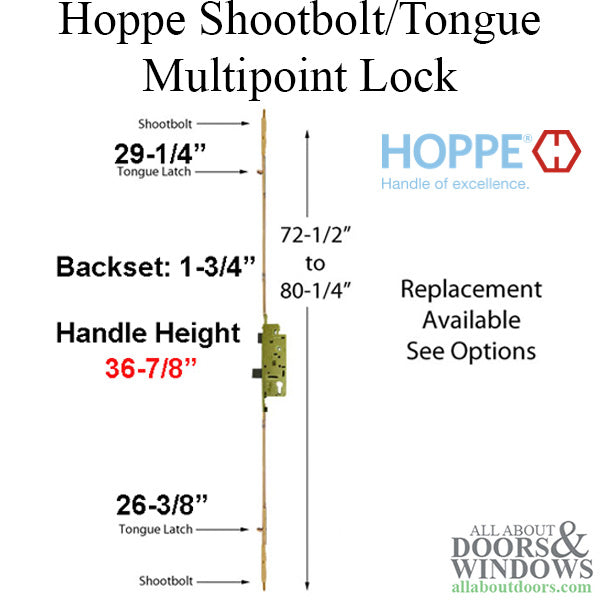

Discontinued Shootbolt / Tongue Version Multipoint Lock made by HOPPE.
It features 5 locking points; 2 Shootbolts, 2 Tongue Latches and a Deadbolt
The Shootbolts are located at both extreme ends of the lock.
One Tongue Latch is located 29-1/2" above the center of the Handle Cylinder
The other Tongue Latch is located 26.42 inches below the center of the Handle Cylinder
This lock is the OLD STYLE and is no longer available.
It must be replaced. (See Replacement Options)

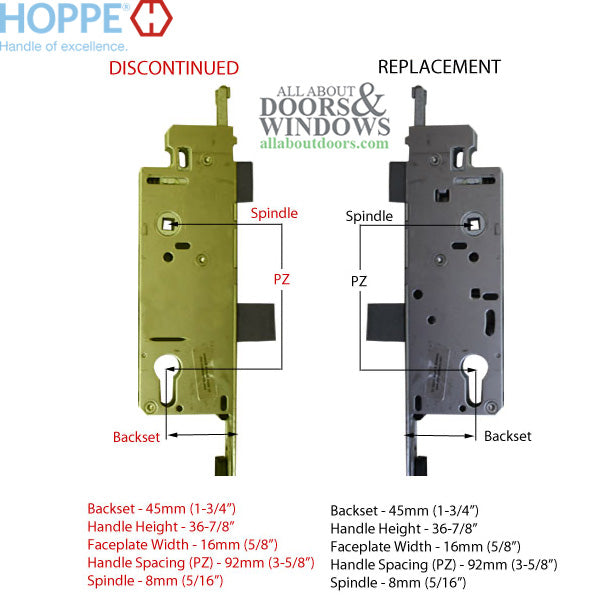

Discontinued Lock Measurements:
Overall Length: 72-1/2 to 80-1/4 inches (lengths may vary)
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36-7/8"
Handle Spacing (PZ): 92mm (3-5/8")
Top Tongue Position: 29-1/2" above the center of Handle Cylinder
Bottom Tongue Position: 26-1/4" below the center of Handle Cylinder
Shootbolts: At extreme top and bottom of lock

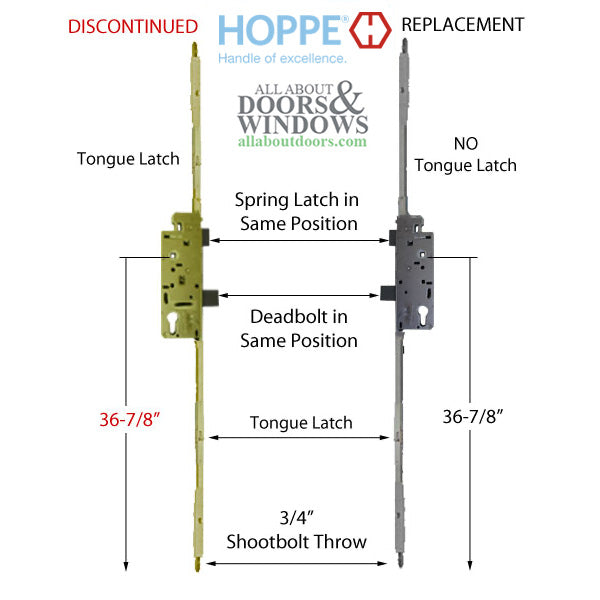

We have developed a Shootbolt / Tongue Replacement Kit for the above mentioned lock.
This is the easiest replacement currently available and will require the least amount of work.
For detailed information on Lock Comparisons and Installation, please see the appropriate Article.
Replacement Options:
4990281 - Shootbolt / Tongue Replacement Kit
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Discontinued Shootbolt / Tongue Version Multipoint Lock made by HOPPE.
It features 5 locking points; 2 Shootbolts, 2 Tongue Latches and a Deadbolt
The Shootbolts are located at both extreme ends of the lock.
One Tongue Latch is located 29-1/2" above the center of the Handle Cylinder
The other Tongue Latch is located 26.42 inches below the center of the Handle Cylinder
This lock is the OLD STYLE and is no longer available.
It must be replaced. (See Replacement Options)
Discontinued Lock Measurements:
Overall Length: 72-1/2 to 80-1/4 inches (lengths may vary)
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36-7/8"
Handle Spacing (PZ): 92mm (3-5/8")
Top Tongue Position: 29-1/2" above the center of Handle Cylinder
Bottom Tongue Position: 26-1/4" below the center of Handle Cylinder
Shootbolts: At extreme top and bottom of lock
We have developed a Shootbolt / Tongue Replacement Kit for the above mentioned lock.
This is the easiest replacement currently available and will require the least amount of work.
For detailed information on Lock Comparisons and Installation, please see the appropriate Article.
Replacement Options:
4990281 - Shootbolt / Tongue Replacement Kit
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
