DISCONTINUED Andersen Emco Keyed 3 Post Storm Door Hardware with Deadbolt for 1-1/2 Inch Doors in Polished Brass
Part Number: 306003 Price: $77.95This item is DISCONTINUED.
The brass inside handle and outside handle is no longer available.
Replace this item with split finish 306000 (black and polished brass).

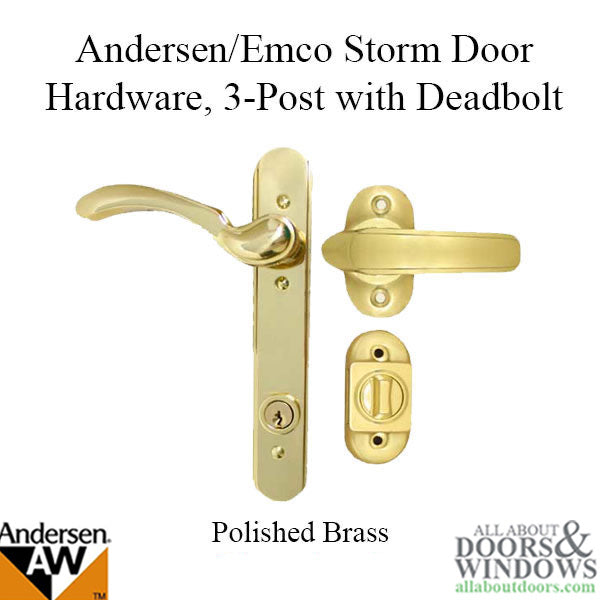

Andersen / Emco keyed 3 post storm door hardware handle set with deadbolt for 1-1/2 inch doors in polished brass.
This original hardware is discontinued and is now replaced with split finish, black and polished brass.
Handle set has 3 posts with hole spacing from top the bottom screw of 5-1/2 inch.
Please note that the bottom hole for the key cylinder is not round, it is oval. The 4th screw is a sheet metal screw that goes in the door.

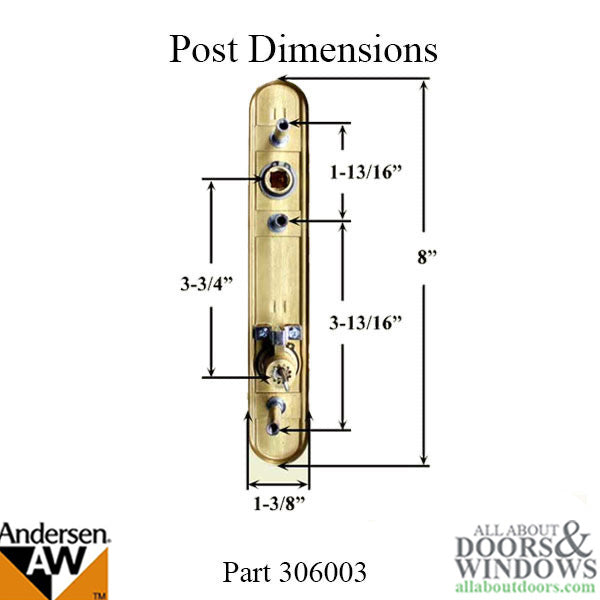

Outside Plate Height: 8 Inch
Outside Plate Width: 1-3/8 Inch
Outside Plate Hole Spacing: 1-3/16 Inch, 3-13/16 Inch

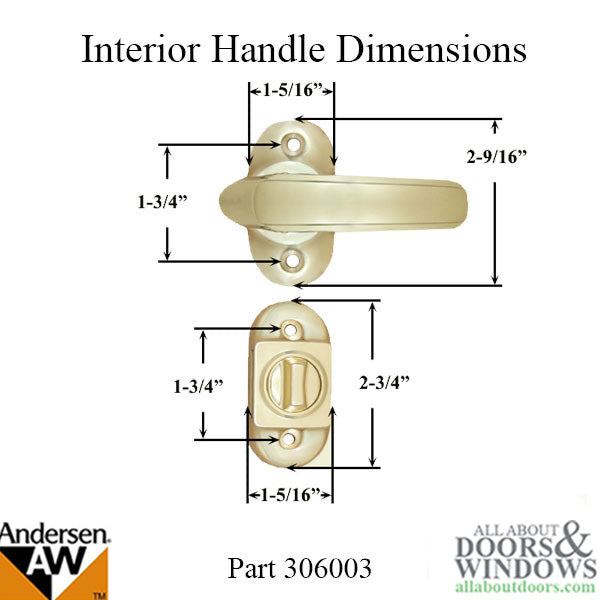

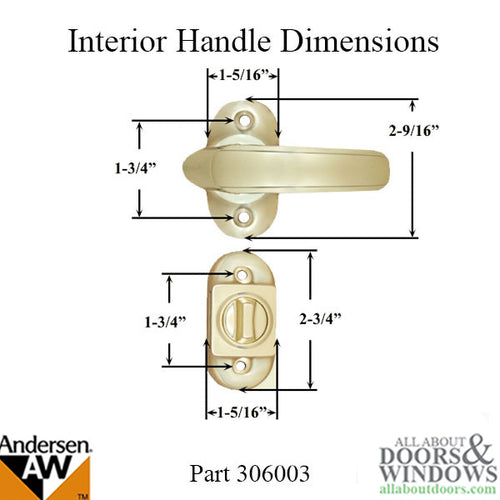

Inside Plate Height: 2-1/2 Inch
Inside Plate Width: 1-5/16 Inch
Inside Plate Hole Spacing: 1-3/4 Inch
Inside Deadbolt Height: 2-3/4 Inch
Inside Deadbolt Width: 1-5/16 Inch
Inside Deadbolt Hole Spacing: 1-3/4 Inch
Finish: Polished Brass
Door Thickness: 1-1/2 Inch
Cylinder: American Style with 1 Inch Flat Tailpiece
Keyway: Rekeyable to SC1 Keyblank 5 Pin Schlage

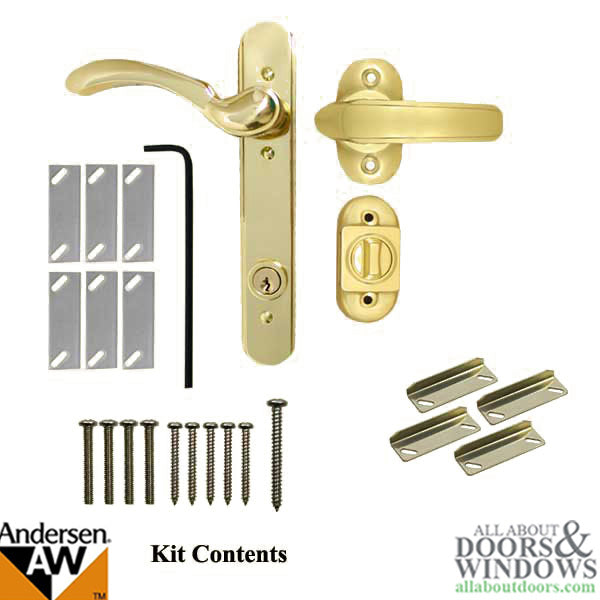

Priced and sold as kit.
The brass inside handle and outside handle is no longer available.
Replace this item with split finish 306000 (black and polished brass).
Andersen / Emco keyed 3 post storm door hardware handle set with deadbolt for 1-1/2 inch doors in polished brass.
This original hardware is discontinued and is now replaced with split finish, black and polished brass.
Handle set has 3 posts with hole spacing from top the bottom screw of 5-1/2 inch.
Please note that the bottom hole for the key cylinder is not round, it is oval. The 4th screw is a sheet metal screw that goes in the door.
Outside Plate Height: 8 Inch
Outside Plate Width: 1-3/8 Inch
Outside Plate Hole Spacing: 1-3/16 Inch, 3-13/16 Inch
Inside Plate Height: 2-1/2 Inch
Inside Plate Width: 1-5/16 Inch
Inside Plate Hole Spacing: 1-3/4 Inch
Inside Deadbolt Height: 2-3/4 Inch
Inside Deadbolt Width: 1-5/16 Inch
Inside Deadbolt Hole Spacing: 1-3/4 Inch
Finish: Polished Brass
Door Thickness: 1-1/2 Inch
Cylinder: American Style with 1 Inch Flat Tailpiece
Keyway: Rekeyable to SC1 Keyblank 5 Pin Schlage
Priced and sold as kit.
