WE HAVE 5 of the Superior Door Locks in stock - SEE G-17567-19
The G-U 20mm faceplate for Superior Doors has been discontinued.
Replace with 499060019

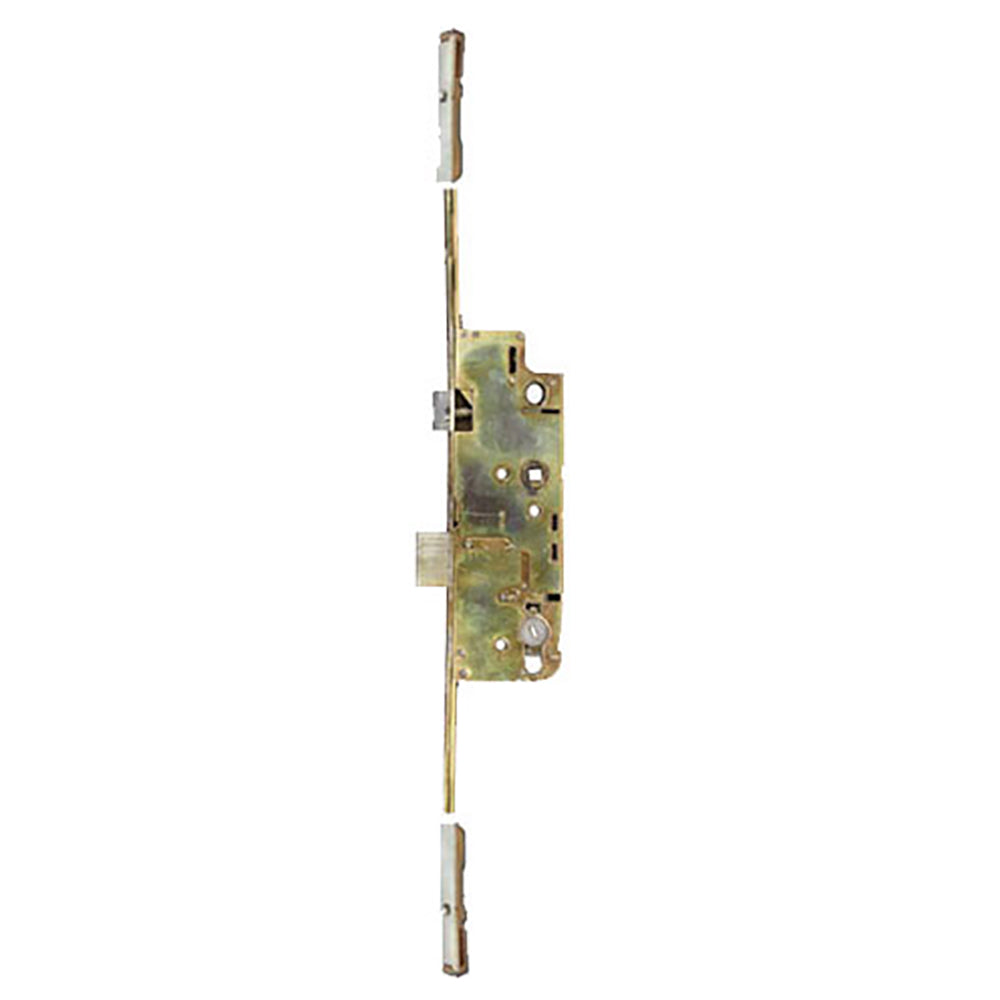

Ferco G-U made some custom 3-point Shootbolt version locks with a wide 20mm faceplate for Superior Door and possibly few other manufactures.
This 20mm faceplate width is no longer offered by Ferco G-U.

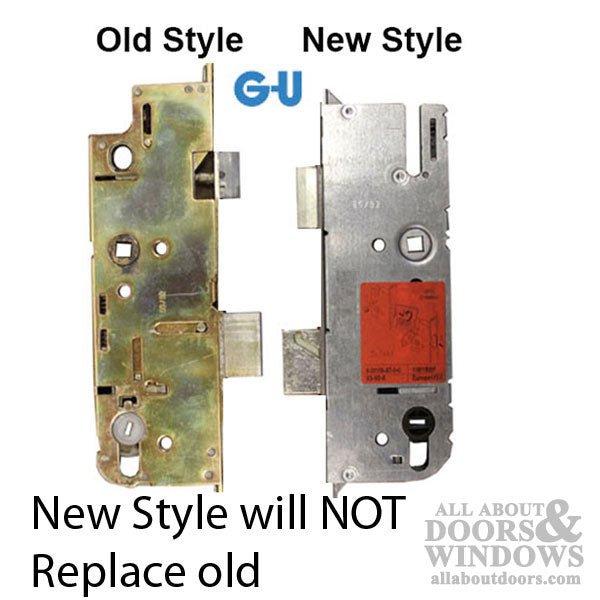

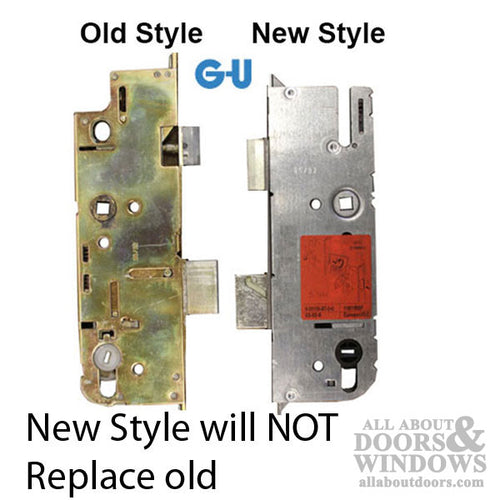

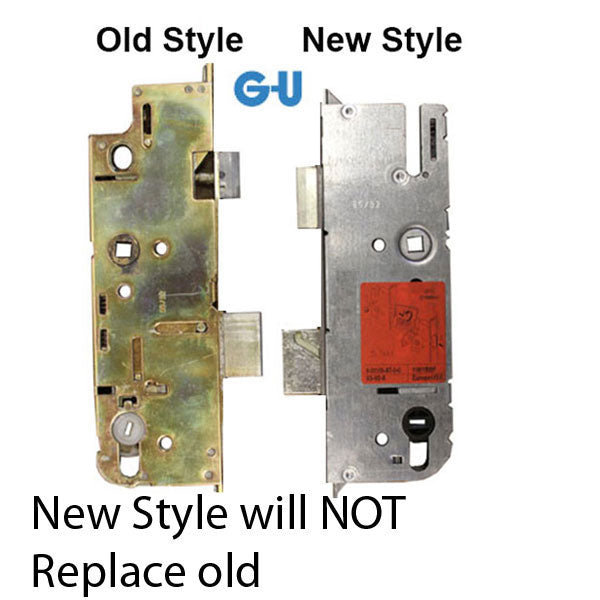

The gear box on the old style and new style are NOT interchangeable with new style locks.
The most common use of this Multipoint lock was on Superior's Vinyl Patio Door.

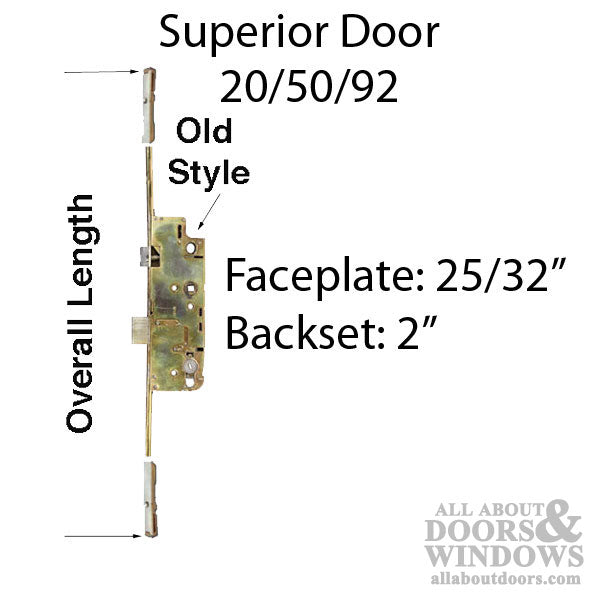

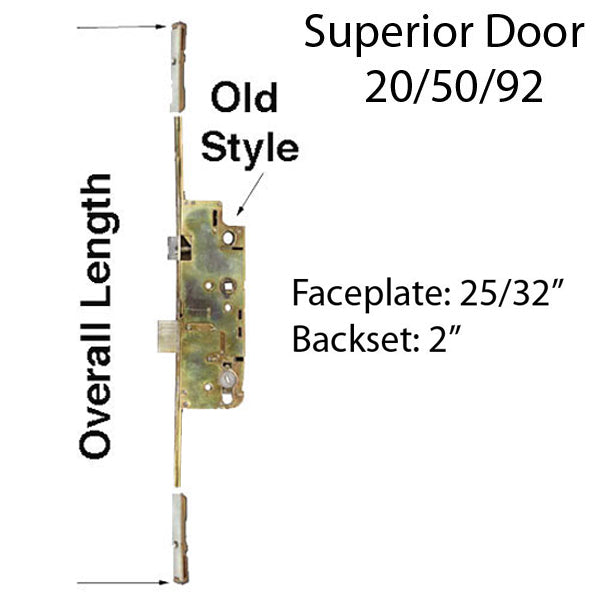

The old style locks have a 2 inch (50mm) backset with a 25/32" (20mm) gold colored faceplate.
Old Style Ferco G-U Lock Case Specifications:
New style is not interchangeable and does not work with old style.
Backset: 2 inch (50mm) NOTE: Replacement is 1-3/4" (45mm)
Faceplate: 25/32 Inch (20mm)
Faceplate Color: Yellow Dichromate
Handle Height: 35 inches (914mm)
Handle Location: Key Below Lever
Replacement Option: Kit 499060019

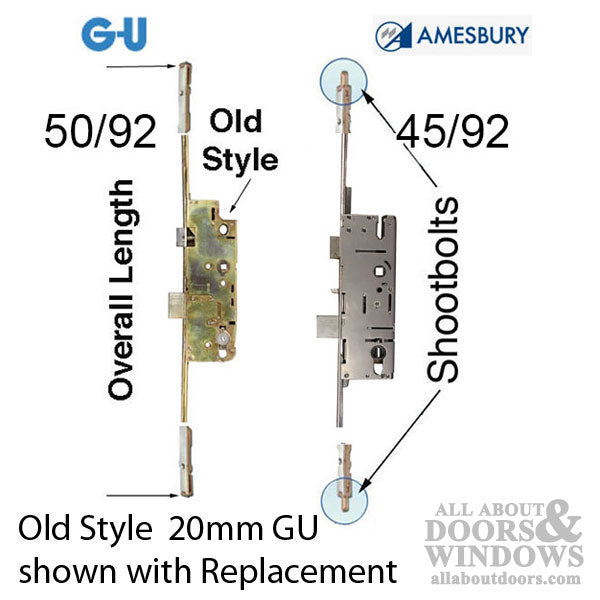

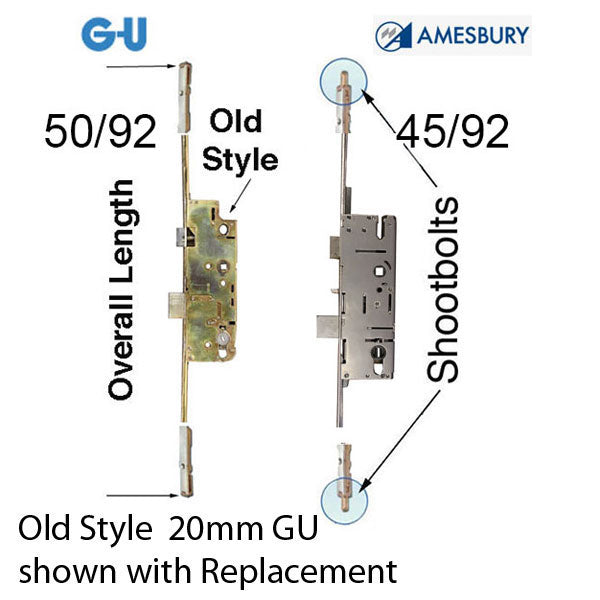

Amesbury Shootbolt 20mm version with 45mm backset (about 3/16" difference from 50mm)
Re-drill handle set screw holes in door and use wider escutcheon plate, if/when needed.
The kit fits door heights with 35" handle height
499060019 - 20-2294 20mm Middle Shoot-bolt Extension, Doors 68" - 81.5"
499060020 - 20-2295 20mm Middle Shoot-bolt Extension, Doors 81" - 94.5"
499060021 - 20-2296 20mm Middle Shoot-bolt Extension, Doors 94" - 107.5"
Note:
Existing handle set can be reused. However, there may be an impression from the existing escutcheon trim plates when moved 3/16 inch; when changing from a 50mm to a 45mm lock.
If you have a wood door and want to cover marks, the best replacement would be our Expressions Handle set trim with a 2" x 12" escutcheon trim plate.
395007 - Traditonal Arch Top, Keyed
395009 - Modern Square top, Keyed
