Wright Storm Door Handle sets fits doors that have the mortise lock in the center. If you door has the lock offset to inside or outside the key cylinder will not fit correctly.
Mortise Lock and Storm Door Hardware with Double Keyed Cylinder
The hardware and mortise lock faceplate are in a Polished Brass finish.
Wright Hardware: Vermont Series Mortise Lock.
Backset: 7/8 inch
Fits 1 to 1-5/8 inch thick door.
Double throw deadbolt
Deadbolt expends 3/8 inch on first turn, then 5/8 inch on second turn.
The Cutout and screw holes for this lock may not be the same as other Wright Hardware.
Solid brass trim plates with curved handles.

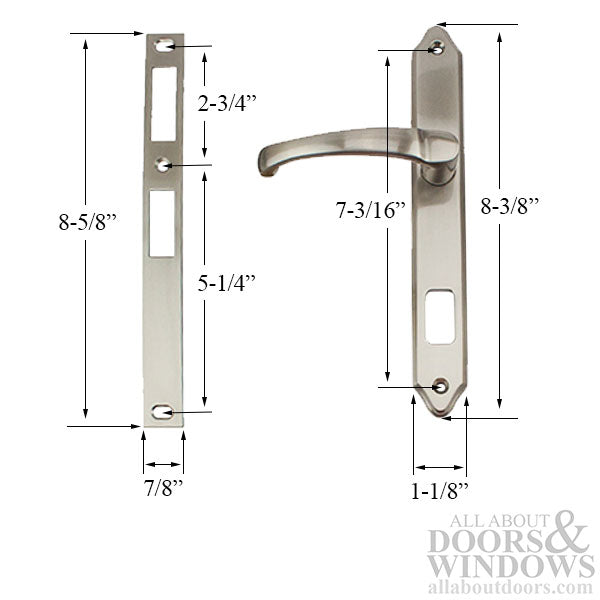

Exterior faceplate screw holes 7-1/8 inches apart.

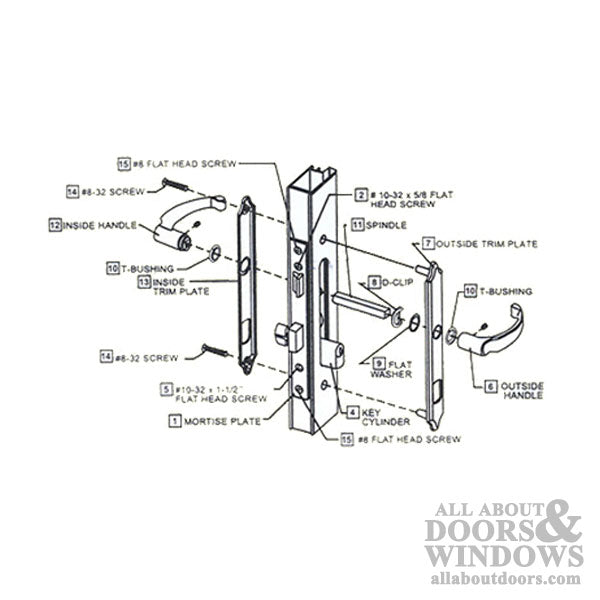

Screws on inside bolt to outside plate, screws visible on inside only.

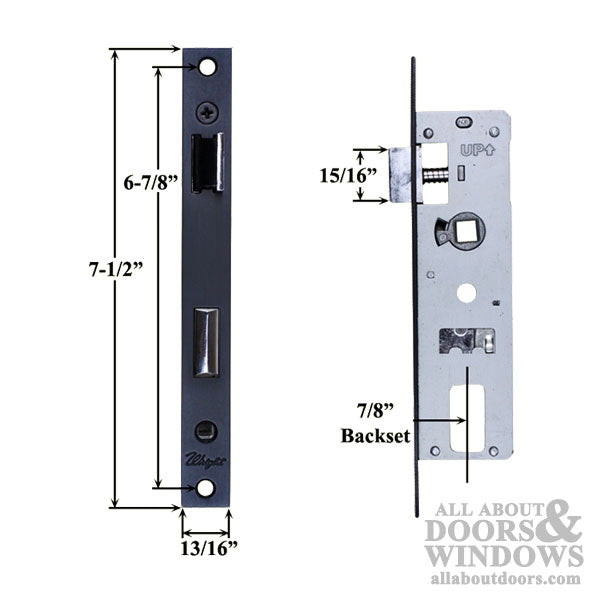

Latch faceplate measures 13/16 x 7-1/2 inches.
Uses key on both sides - double cylinder key lock
Fits Door Thicknesses: 1 Inch, 1-1/4 Inch, 1-1/2 Inch (3 spindle sizes included).
Additional key blanks available as part
#302051Single-cylinder version:
#302043Learn how to
Change Out Your Mortise Lock
