DISCONTUNUED Weiser Bolt Latch, Combo Deadbolt & Spring Latch, 2-3/4 Backset, Square Face, 1" Bolt
Part Number: 4804030 Price: $0.00DISCONTUNUED, NO REPLACEMENT!
Weiserbolt by Weiser Lock - Spring latch becomes a deadbolt latch
Latch Type: Combination Spring latch and Deadbolt
Latch has a standard 1/2 inch throw spring latch that becomes a deadbolt by an additional turn of the key;
Backset: 2-3/4 inch
Square Face Plate
Provides Deadbolt Security when door has only one hole drilled.
Finish/ Color: brass finish.
NOTE:
Weiser had an early model Weiserbolt that was a spring latch with a bevel , when extended became a deadbolt
The current model is a deadbolt that is spring loaded and becomes rigid when extended
As far as I know both can be used for inswing or outswing doors

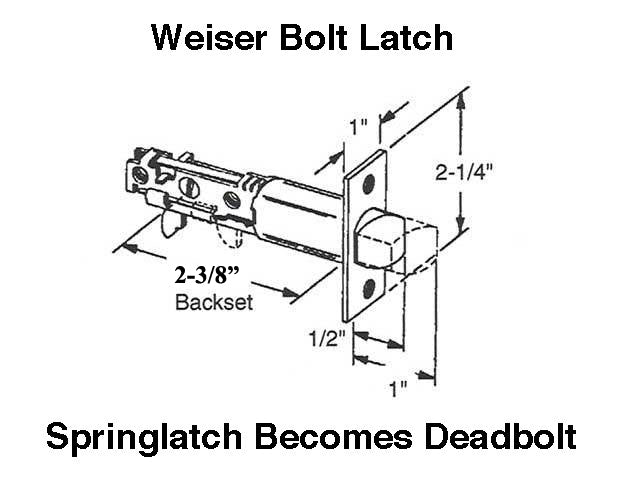

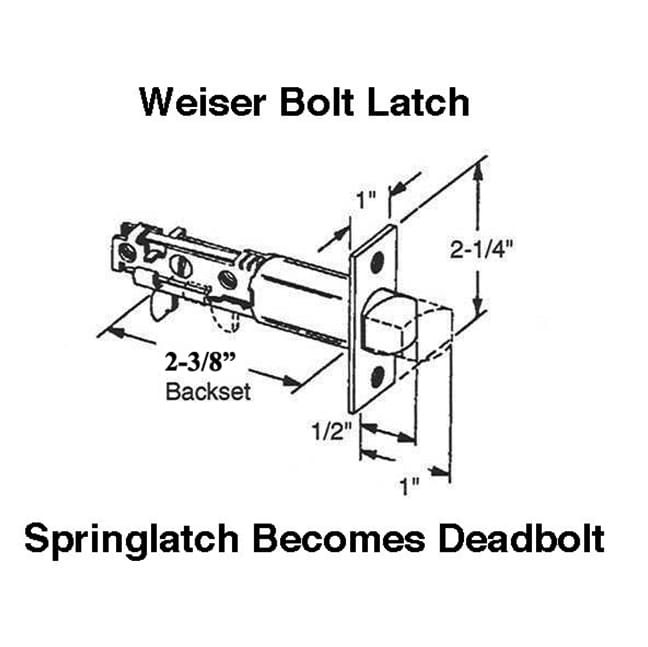

The old style was 2-3/8 or 2-3/4 ( Line Drawing)

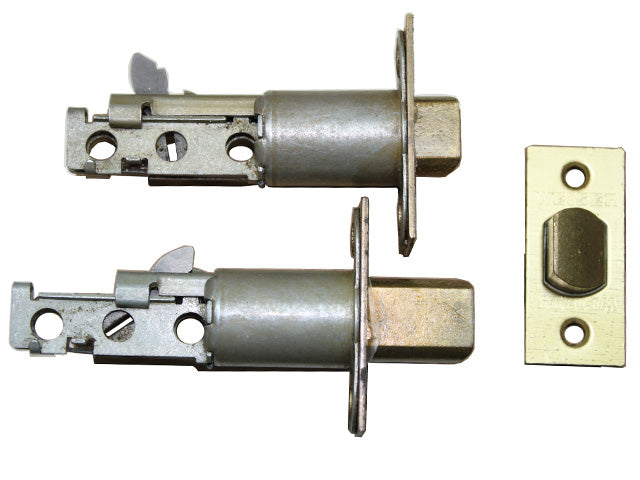

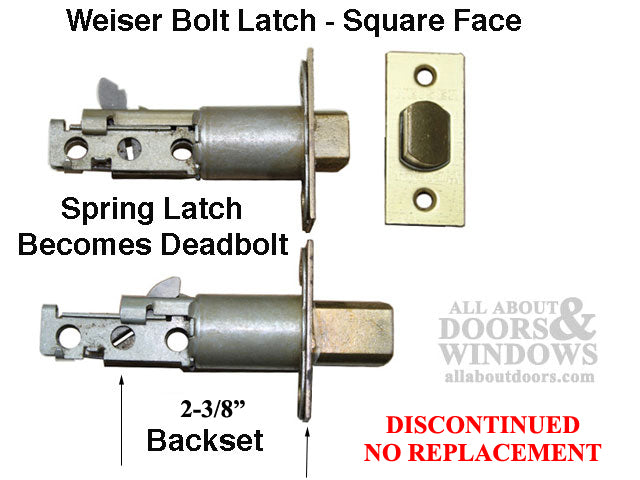

The new style latch is adjustable for both backsets ( color Pictures)
The latch can be inverted on the old or new style to change handing
