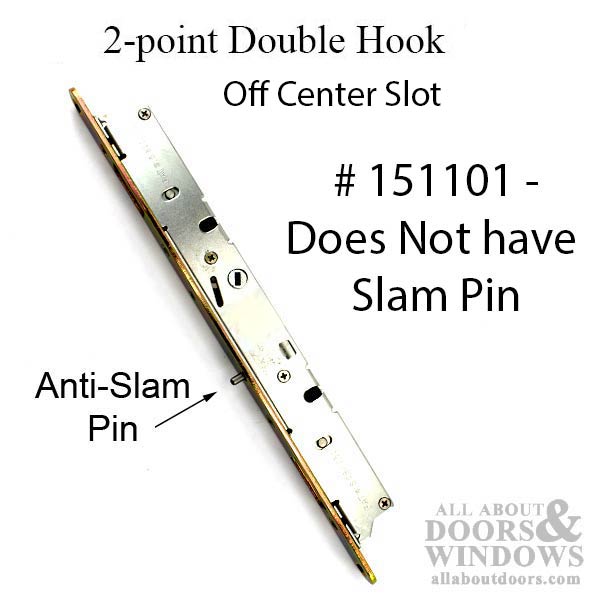

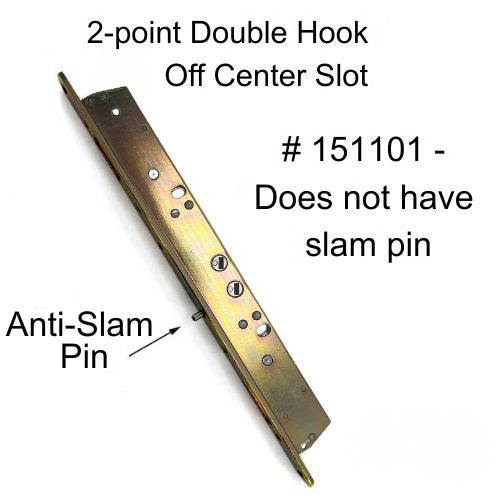

Double Hook Mortise lock for sliding doors, Off-Center Hole for Thumbturn / Key, NO Slam Pin


Hooks: 2, point inward

Key Slot: Off Center

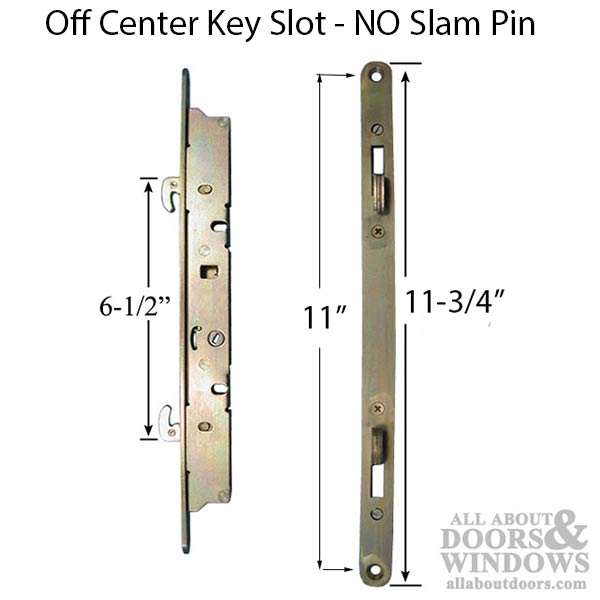

Hook Spacing: 6-1/2" outside edges of hooks and 5-5/8" inside edges of hooks

Slam Pin: No

Installation Screw Holes: 11 Inch

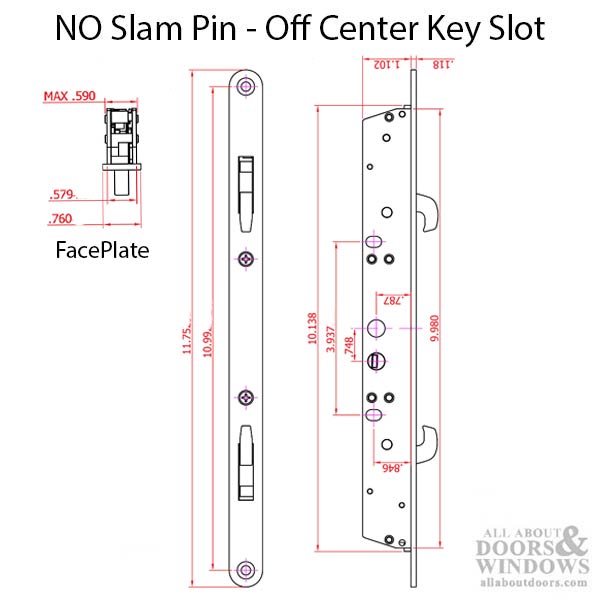

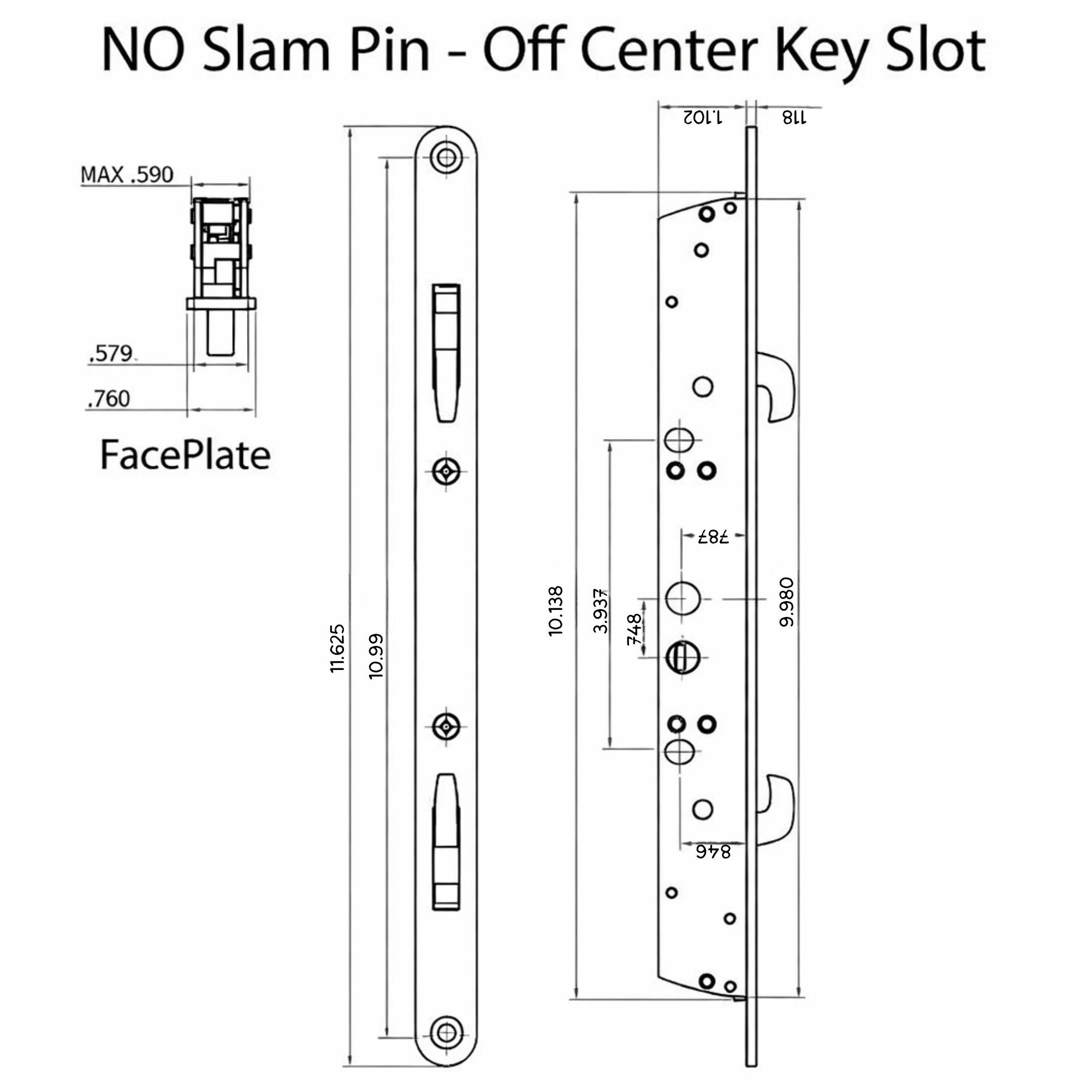

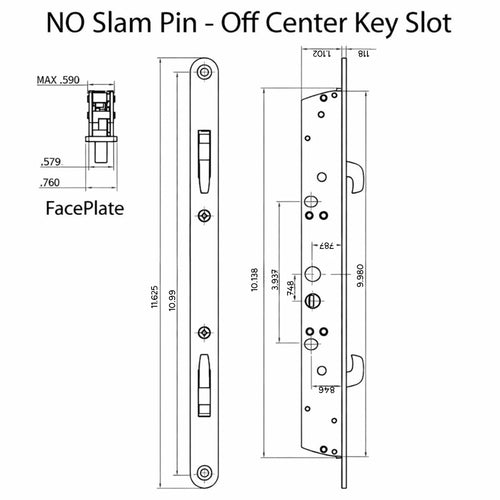

Faceplate Length: 11-3/4 inch

Faceplate Width: 3/4 inch (20mm)

Material: YDI Steel

<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Double Hook Mortise lock for sliding doors, Off-Center Hole for Thumbturn / Key, NO Slam Pin &nbsp;</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial; min-height: 14px;"><br></p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Hooks: 2, point inward</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Key Slot: Off Center</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Hook Spacing: 6-1/2" outside edges of hooks and 5-5/8" inside edges of hooks</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Slam Pin: No</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Installation Screw Holes: 11 Inch&nbsp;</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Faceplate Length: 11-3/4 inch</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Faceplate Width: 3/4 inch (20mm)</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">






</p><p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: Arial;">Material: YDI Steel&nbsp;</p>
