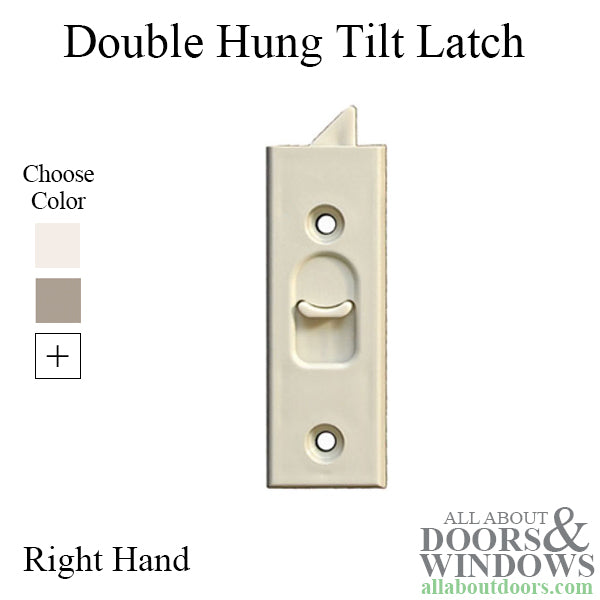

Double Hung Tilt latch - Right

Part Number: 503105-R-TAN
COLOR: - Tan

Right handed Surface mounted Double Hung spring loaded Tilt latches.

Used by Alenco, Weather Shield, Beechworth and others


Application: Single or Double Hung Windows

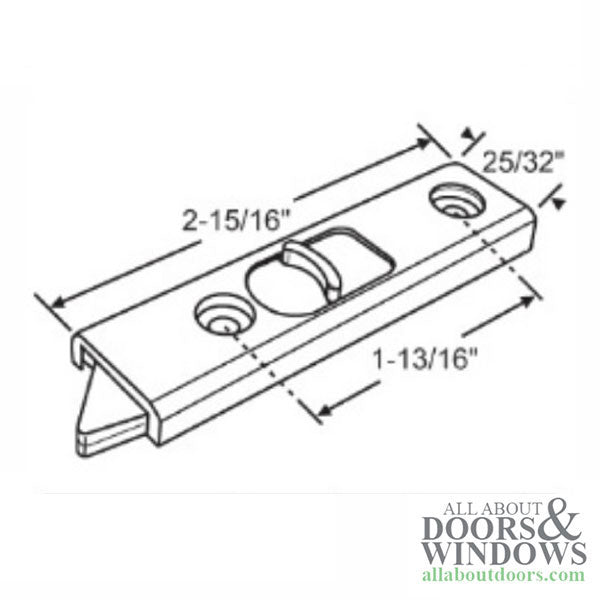

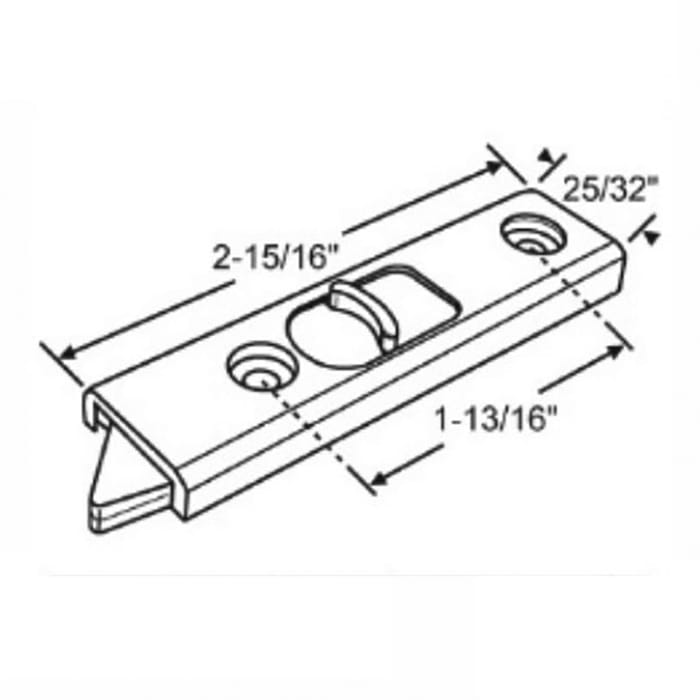

Width: 25/32 inch
Length: 2-15/16 inch
Screw Holes: 1-13/16 inch
Nose Projection: 11/32 inch
Material: Plastic
Color: White or Tan

Sold Each, Right Hand, No Screws
