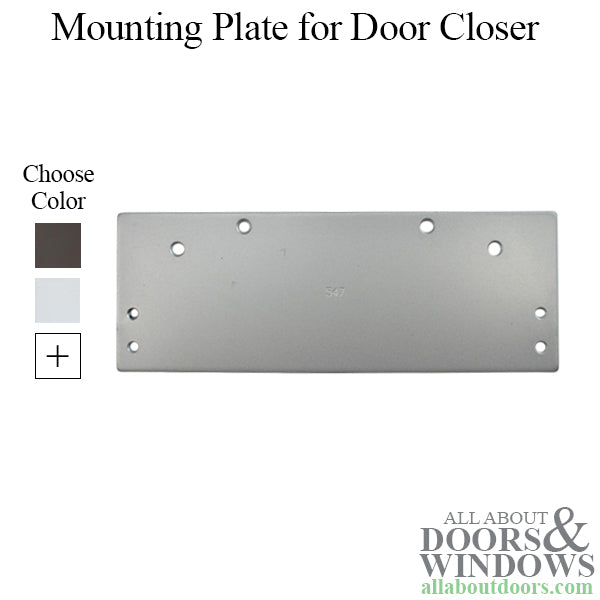

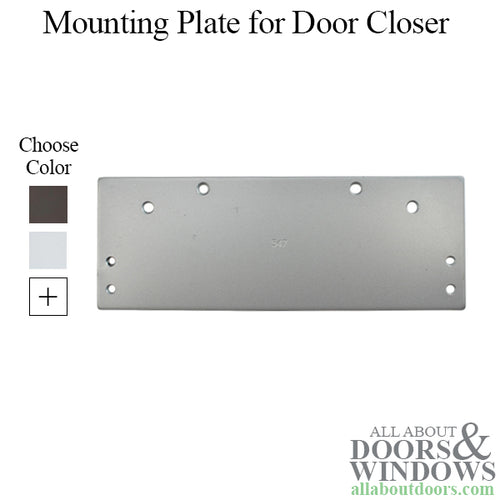

Drop Plate, 9-13/16 x 3-9/16 Mounting Plate for Door Closer
Part Number: Price: $12.35 to $13.57Drop Down Mounting Plate for Door Closer
Used when there is not enough clearance for normal installation

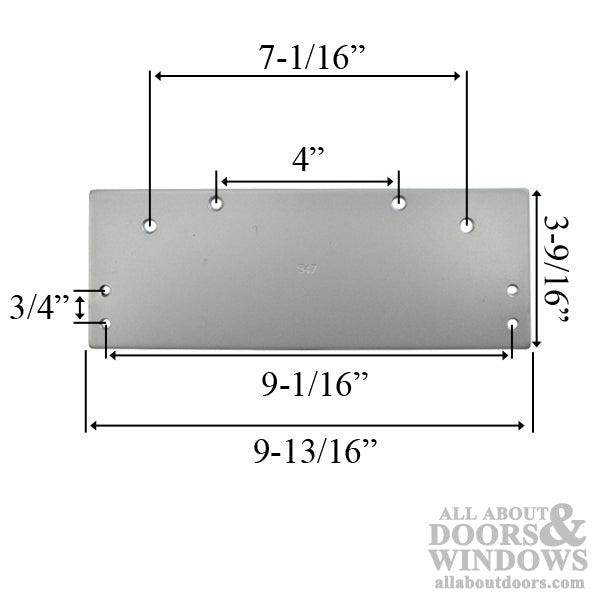

Door Closer Measurements:
Screw Holes Threaded @ 3/4 Tall, 9-1/16 Wide
Plate Width: 9-13/16 inch
Plate Height: 3-9/16 inch
Plate Thickness: 3/16''
Sold as a kit: 1 Plate, 4 threaded screws & 4 Wood Screws

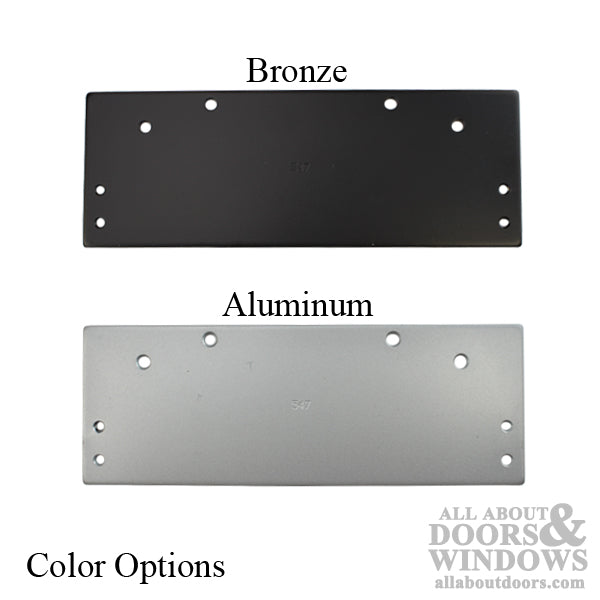

Available Colors:
Aluminum
Bronze
Related Door Closer Hardware:
381027 - Wide 3-9/16 Drop Down Plate
381028 - Narrow 2-3/8 Drop Down Plate
