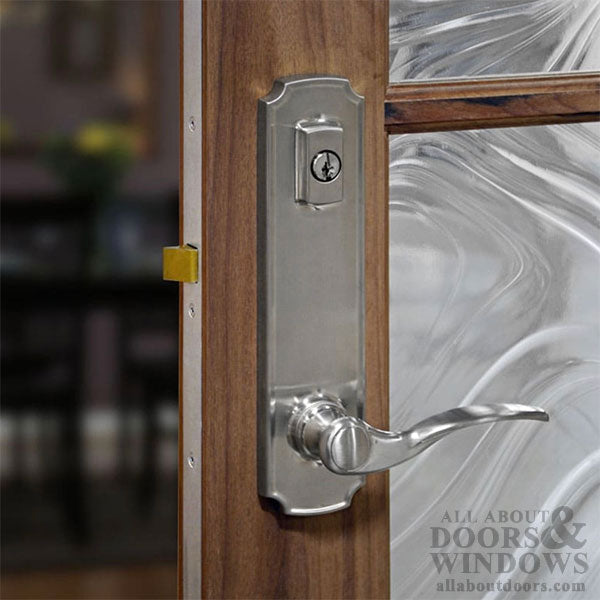

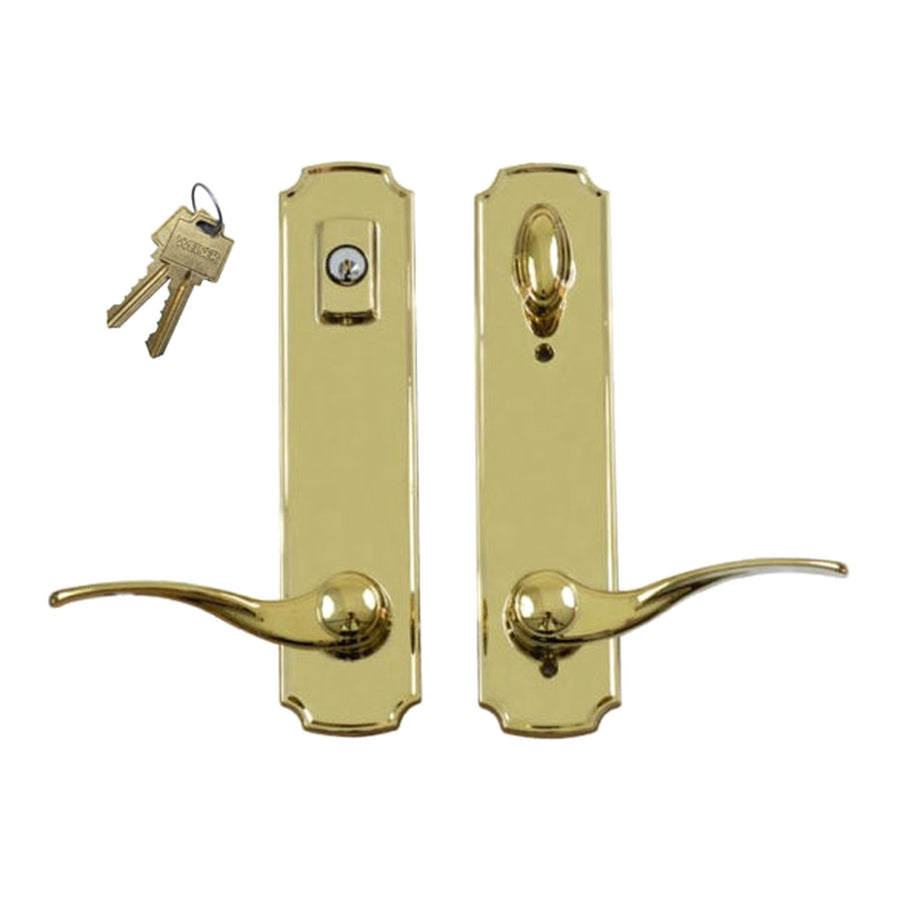

Trilennium Eclipse Keyed 3-point Handle Set

Trilennium Eclipse 3-point Handle Set Trim  6" PZ

The Trilennium Eclipse 3-Point Door Lock features a 6-inch handle-to-key spacing-see additional images for details. This advanced 3-point lock system includes triple latches that extend and lock into rigid deadbolts, providing superior security. Designed exclusively for W & F Hardware, it is not compatible with other multipoint locks. It is commonly used by brands like Peachtree, Pella, and others.

Specifications:

• Function: Active Door with Key lock
• Door Thickness: Standard 1-3/4 Inch (*For 2-1/4 inch doors, order 2-1/4 inch conversion pack 40039-WR)
• Key Cylinder: Standard Weiser - Special Order, Kwikset Smart Key or Schlage SC1 5 pin

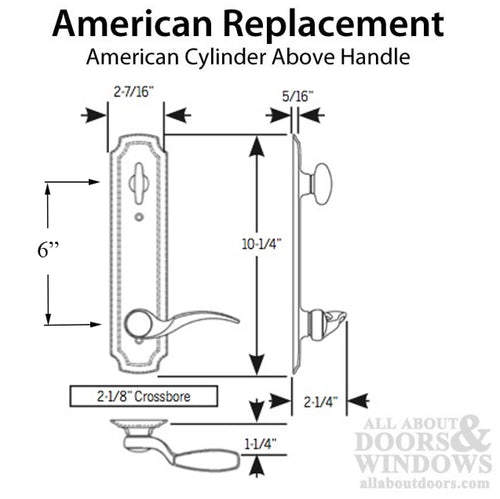

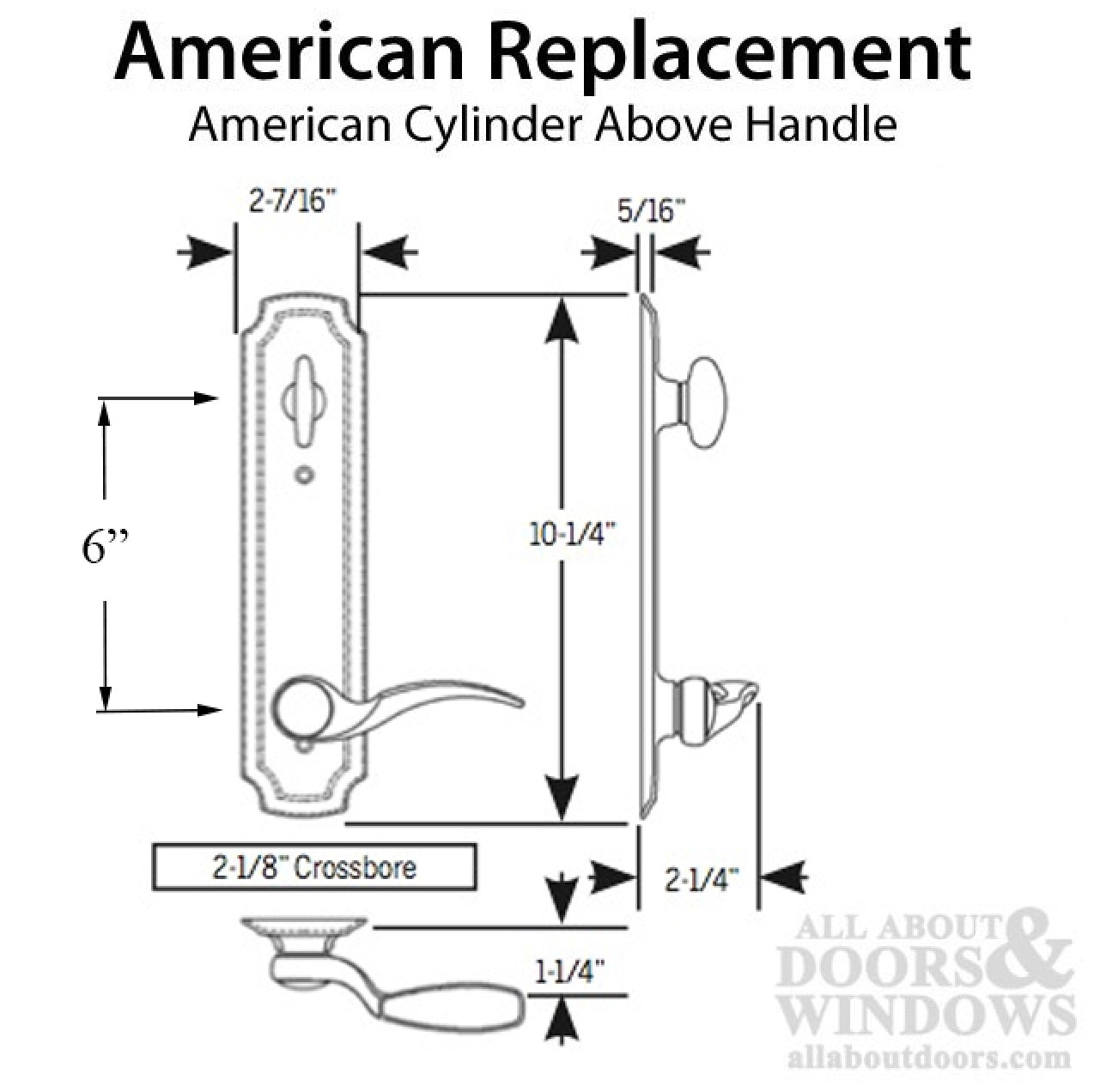

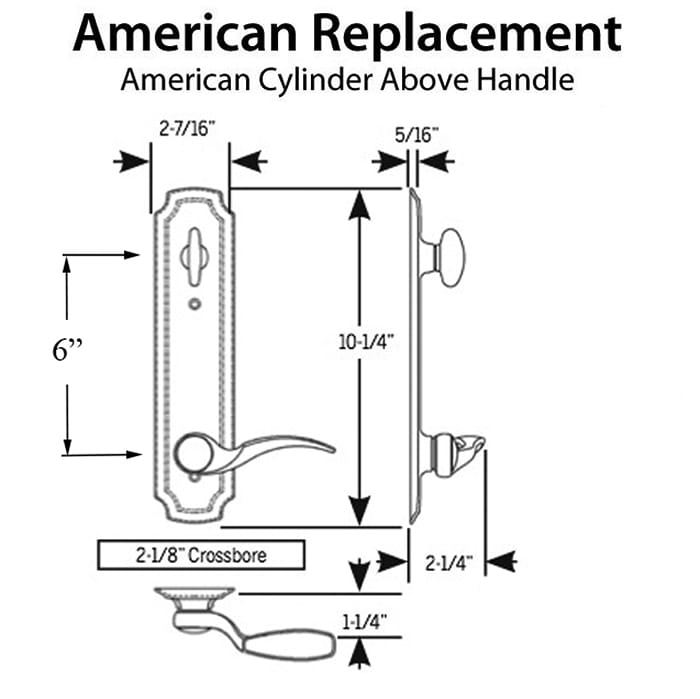

• Escutcheon Plate Width: 2-7/16 Inch (61.91mm)
• Escutcheon Plate Length: 10-1/4 Inch
• Handle to Cylinder Centers: 6 Inch

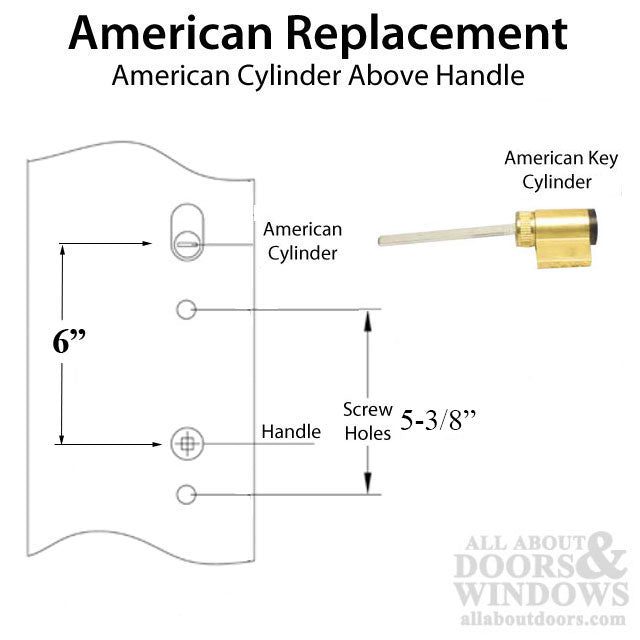

• Installation Screw Hole Spacing: 5-3/8 Inch
• Keyway Options: Schlage C or Weiser

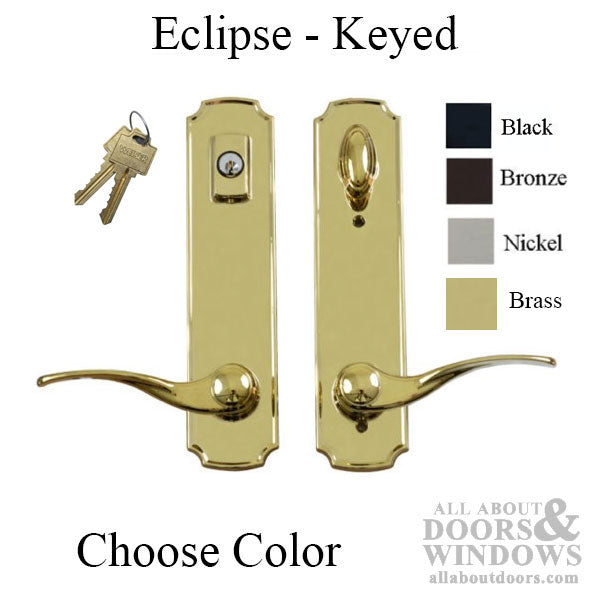

• Color/Finish: Polished Brass, Satin Nickel, Black Powder Coat
• Special Order Finishes: (TriLast PVD High Performance Finish) Lifetime Brushed Satin Nickel or Victorian Bronze

Note 1:

This is the interior and exterior handles and plates as shown, does NOT include Strike Plates or mortise lock in door. Other parts are sold separately

Note 2:

Standard bore on most W&F or Endura hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handle sets are only 2 inches wide and will not cover the larger holes.

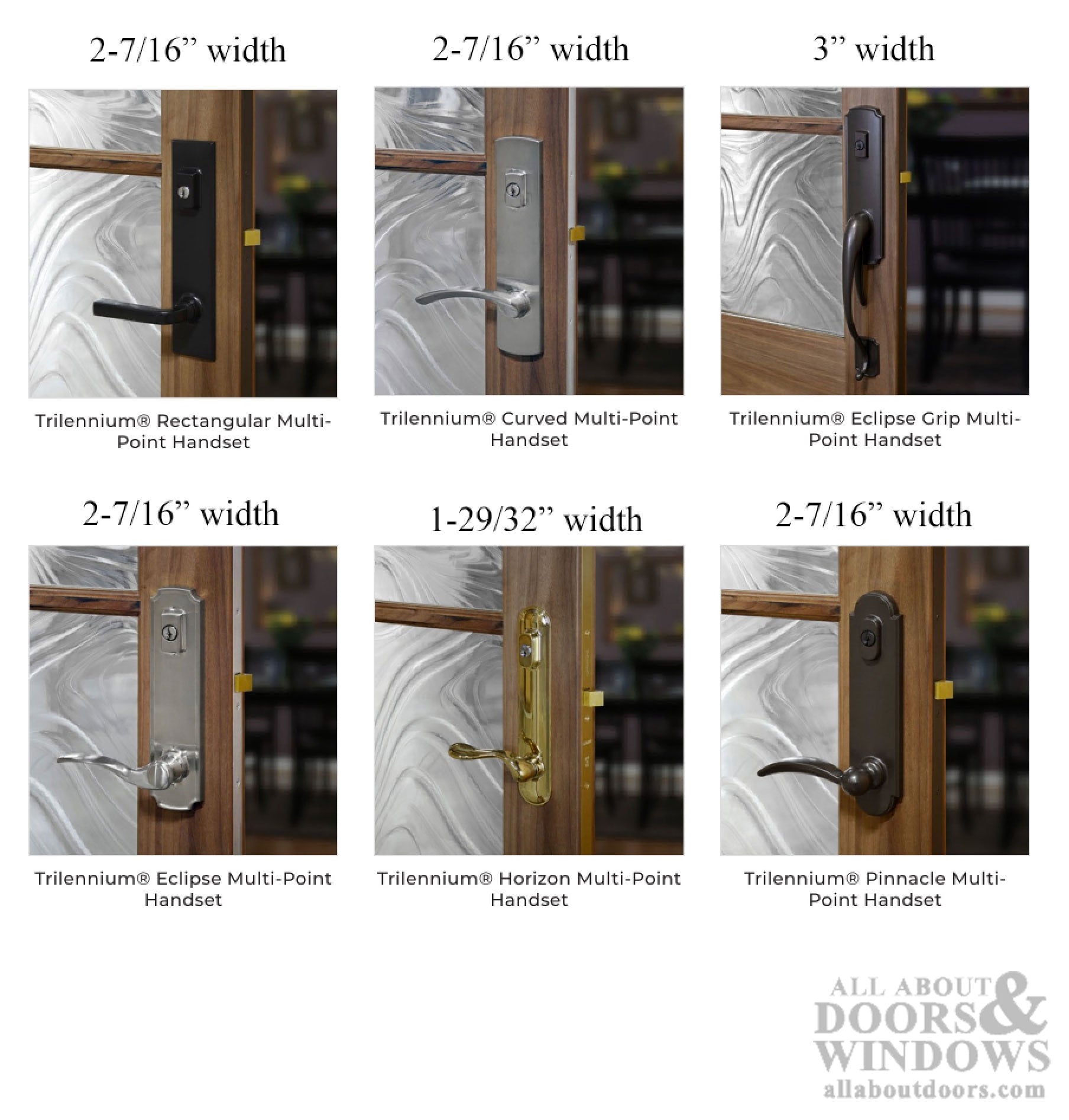

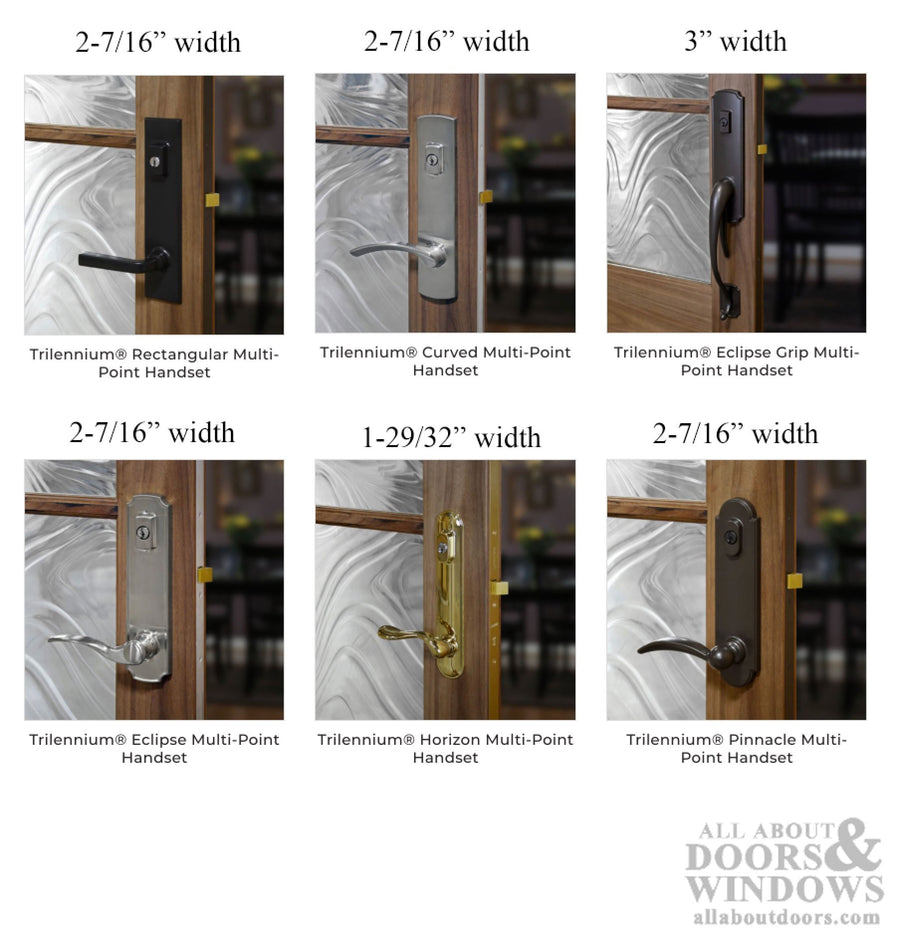

Handle set Trim for 2-1/8 inch Cross Bore: Pinnacle, Eclipse, Rectangular & Grip Hardware.

Trim for 1-11/16 Cross Bore: The full W&F line including Horizon and Some Emtek with 2 inch wide plates.
