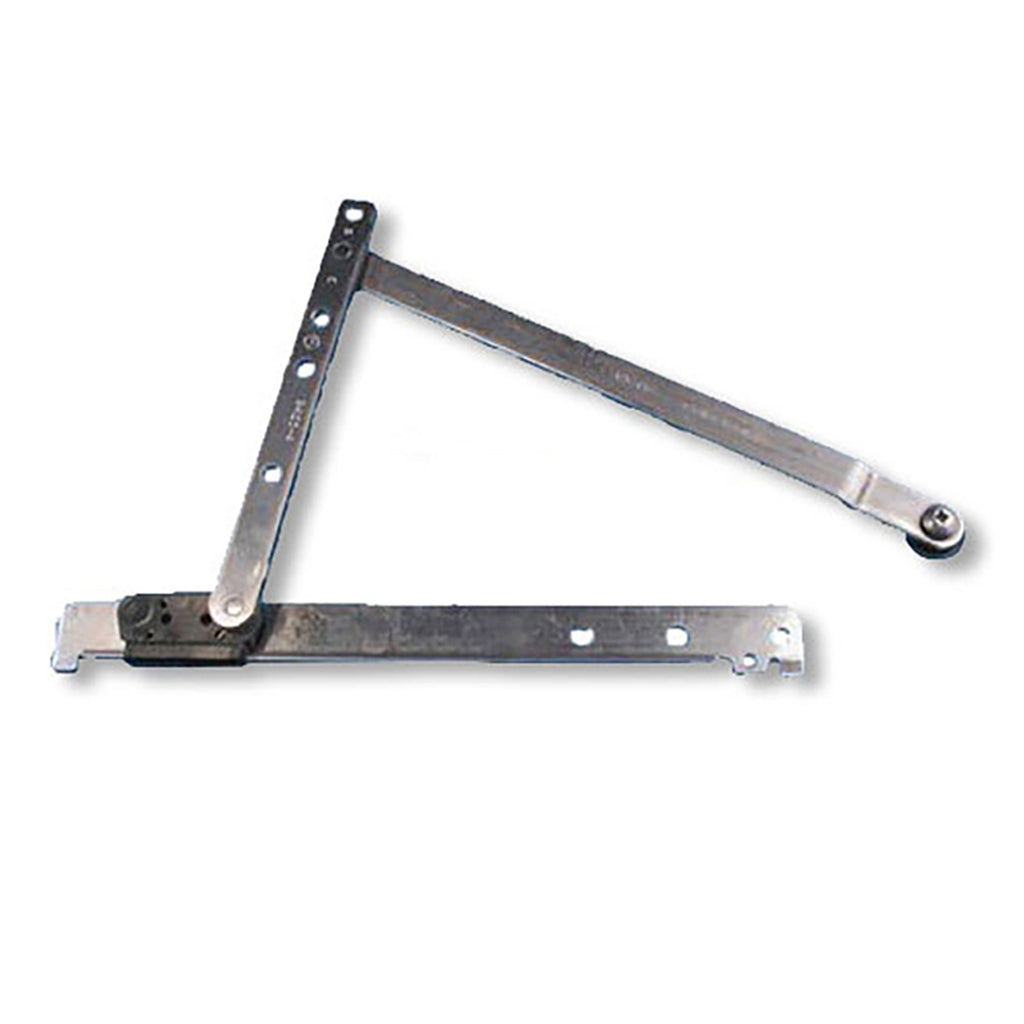

Enhanced Casement Hinge, Heavy Duty, Head - Right

Part Number: 1361326 Price: $4.95

Limited to existing inventory.
Replace with 1361466 RH Head

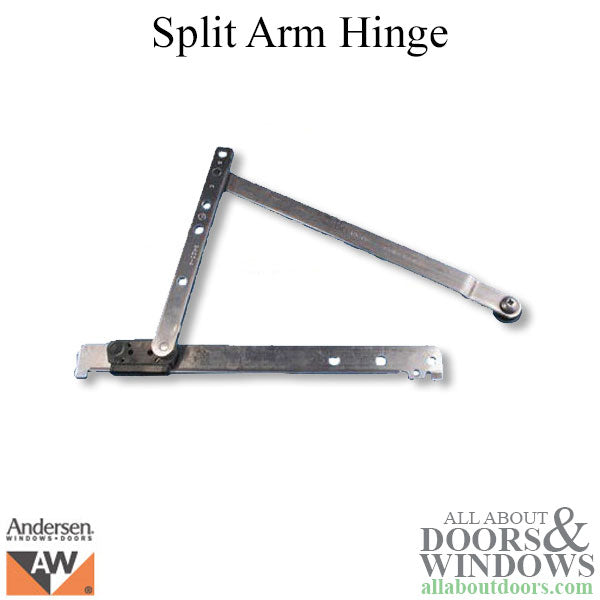

Heavy duty Right hand split arm head hinge for Andersen C5-6 and CW3-45 enhanced casement windows. 1995-1998

Heavy duty right hand enhanced casement split arm hinge.
Replaces Old style Production Hinges # 1361418

Handing: Right
Shoe- Black
Markings: 9424-4 Short Arm; 9424-3 Long Arm

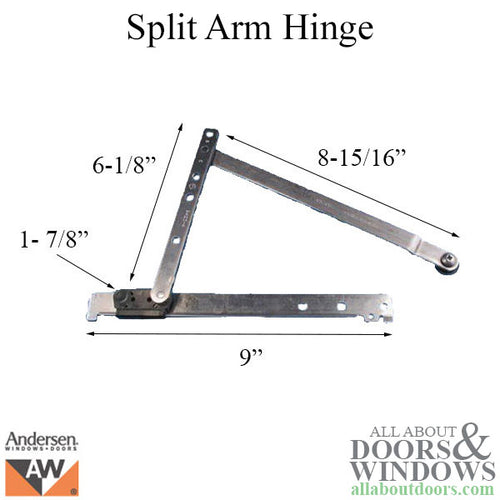

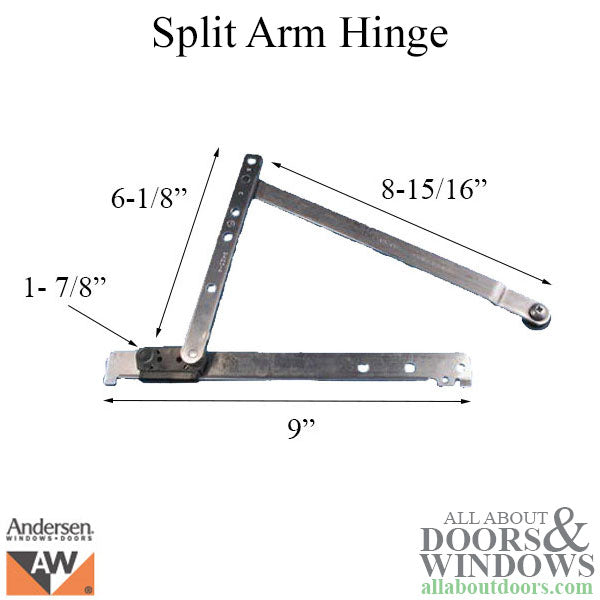

Short arm 6-1/8

Long Arm 8-15/16

Screw size: 5/8 Stainless Steel
Link width: 5/8 inch

Note: Windows are viewed from outside

Related Parts: Corrosion Resistant Hinge - Old
1361329 Left - Sill
1361328 Right - Sill
1361331 Left - Head
1361330 Right - Head

Related Andersen Window Parts:  Current

1361461 - Split Arm Hinge w/screws - Standard - Sill - Left

1361460 - Split Arm Hinge w/screws - Standard - Sill - Right

1361465 - Split Arm Hinge w/screws - Corrosion Resistant - Sill - Left

1361464 - Split Arm Hinge w/screws - Corrosion Resistant - Sill - Right

1361463 - Split Arm Hinge w/screws - Standard - Head - Left

1361462 - Split Arm Hinge w/screws - Standard - Head - Left

1361467 - Split Arm Hinge w/screws - Corrosion Resistant - Head - Left

1361466 - Split Arm Hinge w/screws - Corrosion Resistant - Head - Right
