Europa Lock Case only, Active 50/92 American Version, WPZ (US)
Use the arrows or swipe left to view all images for this product
Europa Lock Case only, Active 50/92 American Version, WPZ (US)

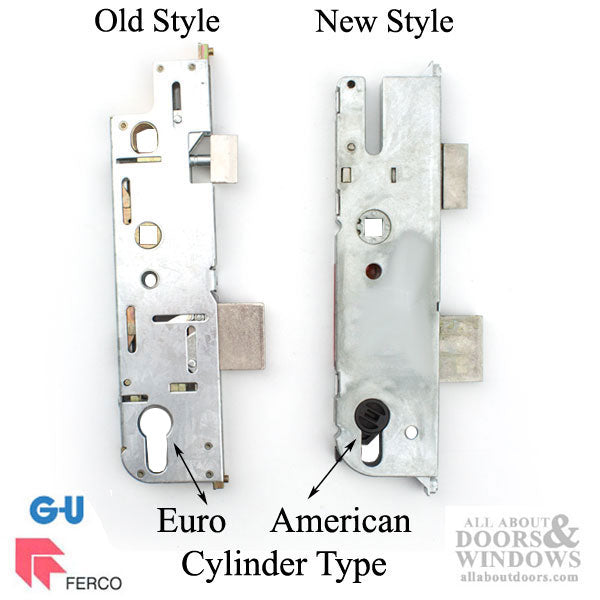

Part Number: $102.67G-U new style lock case will NOT fit old style locks ( see additional images). The lock case does NOT have a faceplate, it is the lock body only and you will have to reuse other components.
G-U / Ferco American version mortise lock body for Europa style multi point locks.
Faceplate: None
Function: Active
Backset: 2 inch (50 mm)
Handle to cylinder (PZ): 3-5/8 inches (92 mm)
Series: Europa , American version, USA
Key Position: Key Below lever

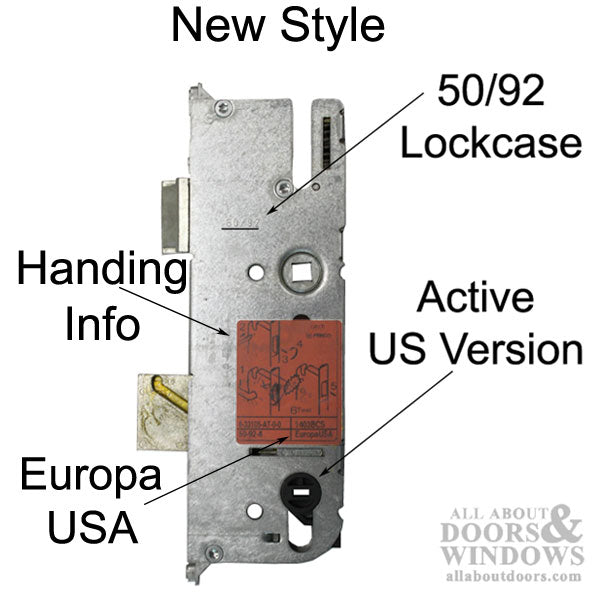

Markings: 50/92 stamped in lock case
Instructions, how to change handing: Latch Reversal
1. Depress lever, to retract latch
2. Insert screwdriver into slot behind latch
3. Latch will out, if not push in slightly
4. Spin Latch around
5. Push latch in till it clicks ( locks in place)
6. Test function, before installing lock or closing door
G-U new style lock case will NOT fit old style locks ( see additional images). The lock case does NOT have a faceplate, it is the lock body only and you will have to reuse other components.G-U / Ferco American version mortise lock body for Europa style multi point locks. Faceplate: None
Function: Active
Backset: 2 inch (50 mm)
Handle to cylinder (PZ): 3-5/8 inches (92 mm)
Series: Europa , American version, USA
Key Position: Key Below lever
Markings: 50/92 stamped in lock caseInstructions, how to change handing: Latch Reversal 1. Depress lever, to retract latch
2. Insert screwdriver into slot behind latch
3. Latch will out, if not push in slightly
4. Spin Latch around
5. Push latch in till it clicks ( locks in place)
6. Test function, before installing lock or closing door
