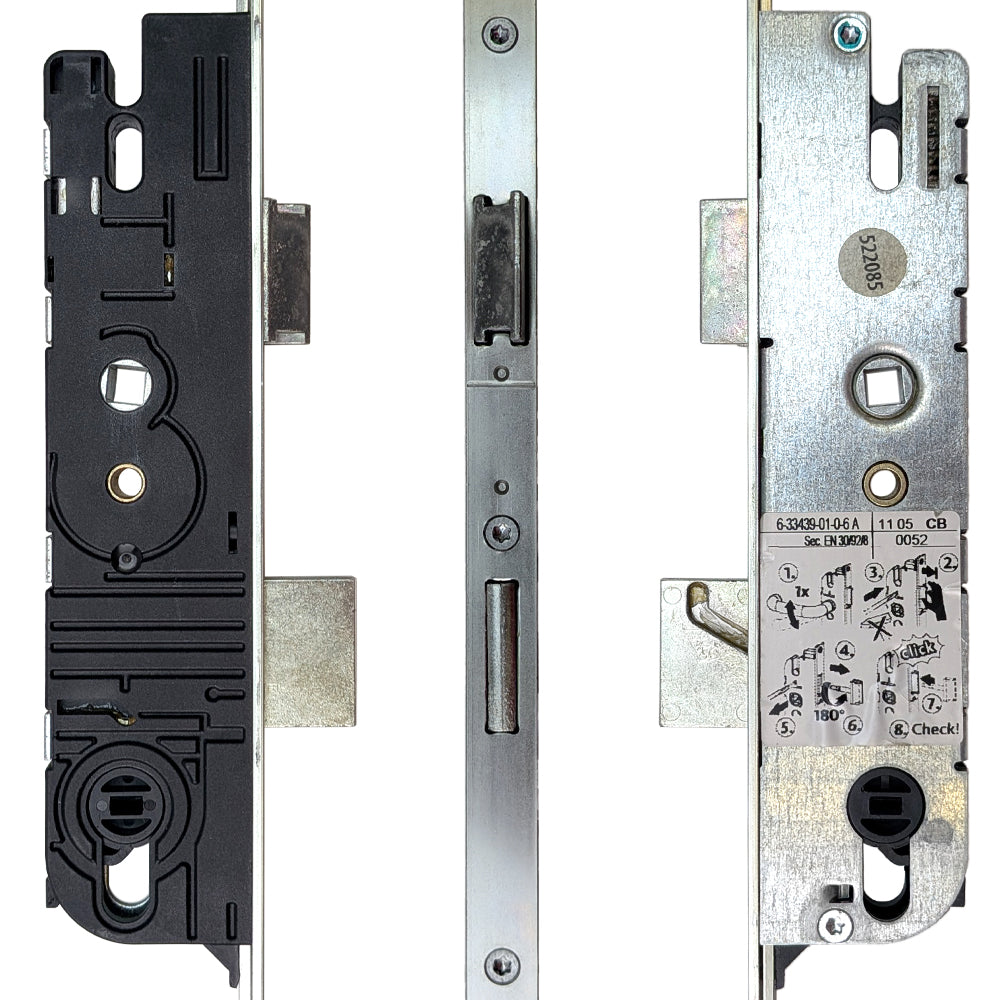

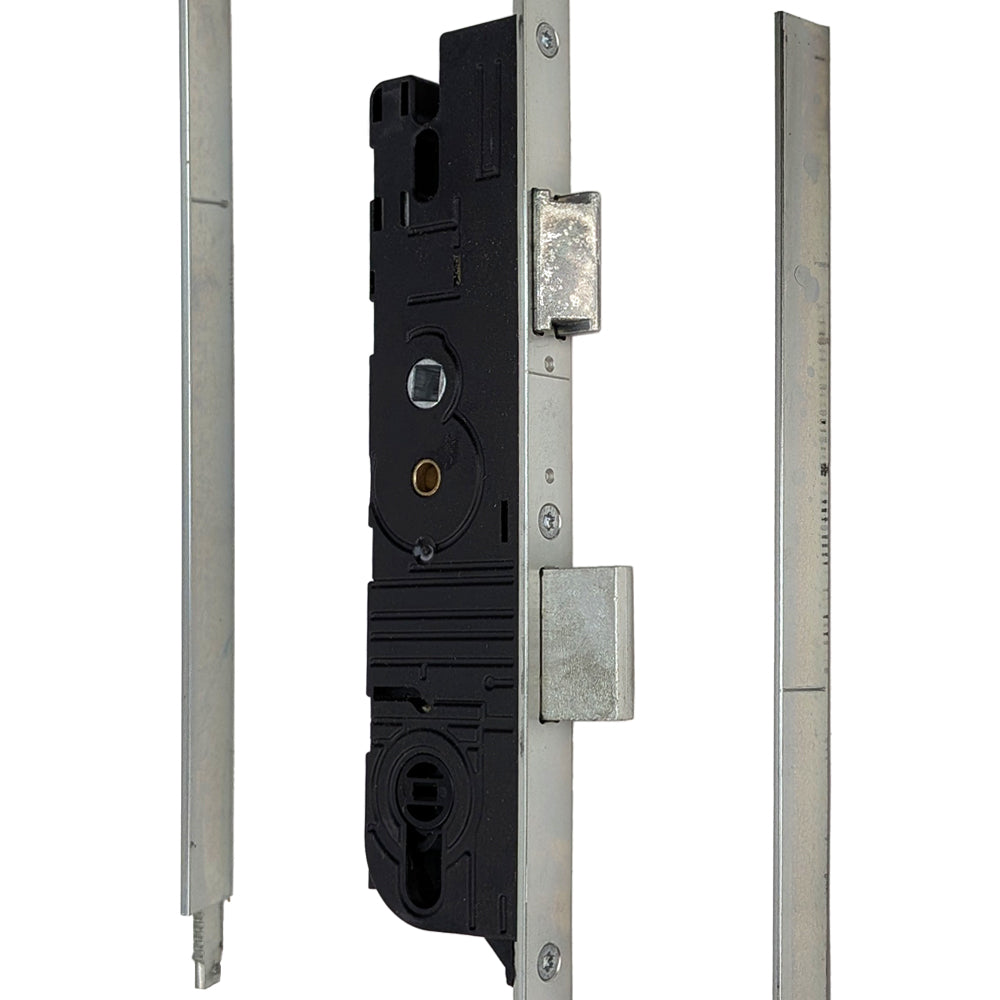

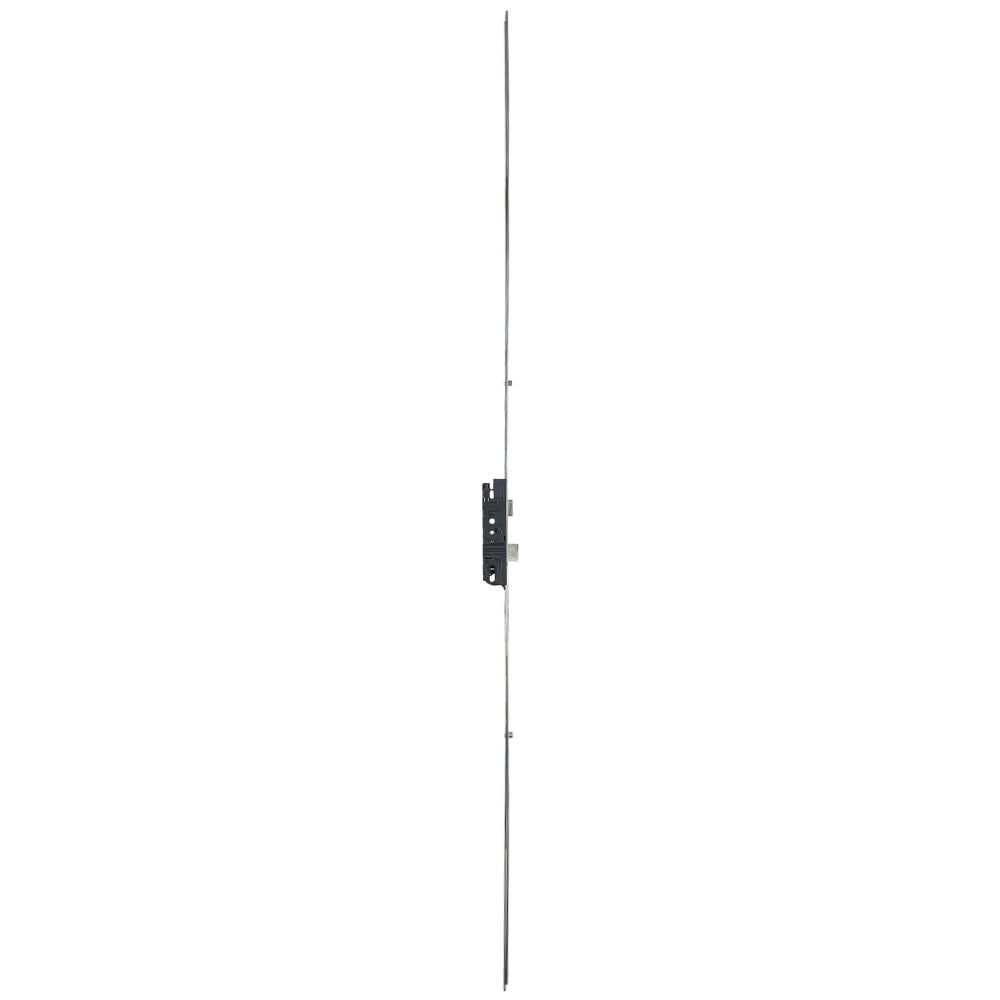

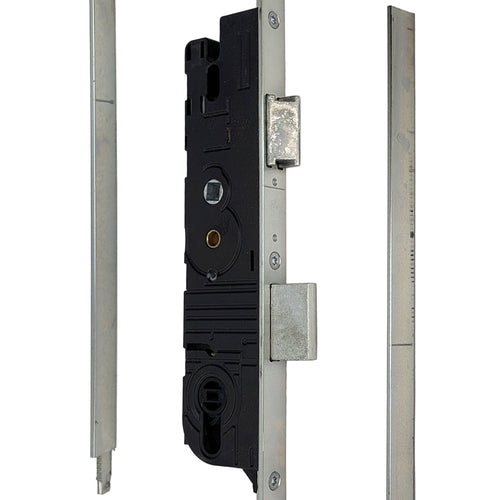

G-U Secury Europa R2

30/92 Bottom Gear with Roller and Shootbolt

Does not include top nor bottom shootbolt. See related items below.

Adjustable handle height, 35 to 40 inches. The R2 cams can be removed but the slot (where they travel) in the face plate will remain. There is no cover for this slot.

• Series: Secury Europa - R2
• Cylinder Type: American w/ Flat Tailpiece
• Handle Position: Key below handle
• Locking Function: Roller with shootbolt
• Backset: 30mm (1-3/16 inch)
• PZ (Distance from center-of-cylinder to center-of-handle): 92mm (3-5/8 inches)
• Faceplate Width: 16mm (5/8 inch)
• Faceplate Finish: Stainless Steel
• Handle Height (Adjustable/Croppable):
  • Maximum: 1015mm (40 inches)
  • Minimum: 890mm (35 inches)
• Spindle Size: 8mm Square

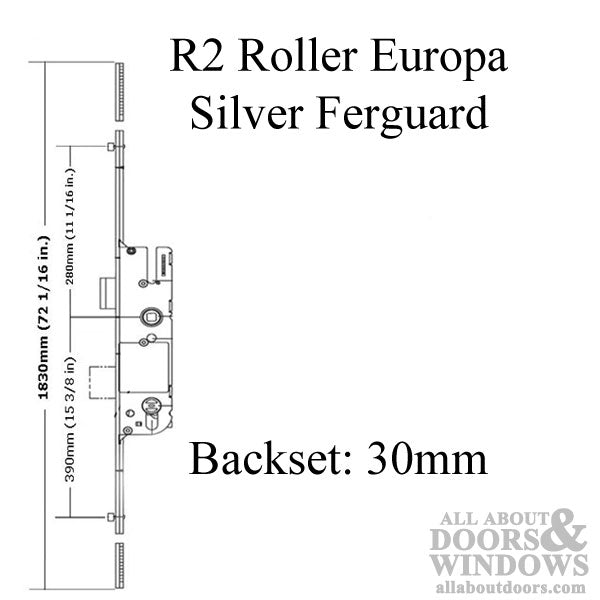

• Roller Positions:
  • Locked:
    • Upper: 10-1/4"
    • Lower: 16-1/8"
  • Unlocked:
    • Upper: 11-1/16"
    • Lower: 15-3/8"

Note: The Europa R2 and the Europa Inactive are the only locks in the G-U offering that can achieve the 39 inch handle height with shoots at the bottom. The Rhino, 6-33400, will have a handle height of 1015mm (40 inch) by adding a shoot at the bottom.
