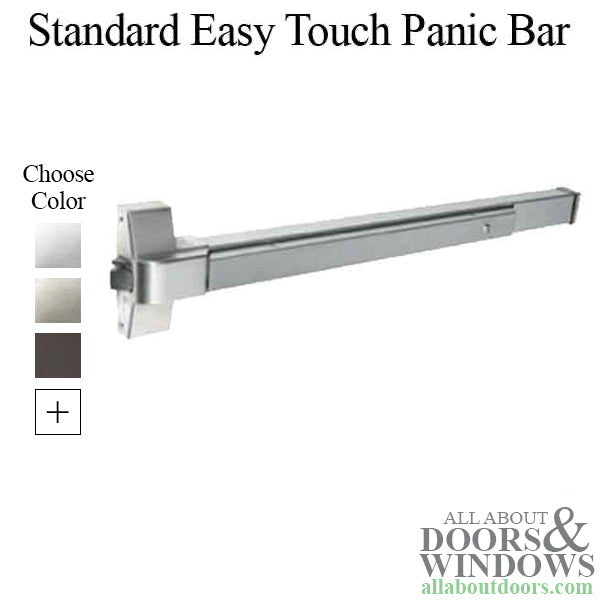

STANDARD Touch Bar / Exit device for Flush steel and wood doors -
Not Designed for full view glass doors - use Narrow Stile version
Can be dogged to remain unlocked ( Note - Fire rated version can not )
Features - Specify:
Colors; AL - Aluminum; DU - Duronotic Bronze; SS - Stainless Steel (AL, DU or SS)
Two Widths available: 36” or 48”
Non-Handed - Reversible for Left or Right hand doors
Material: Push Bar of steel material, spring of stainless steel
Latch Bolts: 3/4” throw, stainless steel
Dead Latch Bolts: 5/8”, stainless steel
Finish: Powdercoat
Color: Aluminum or Bronze, Special Order Stainless Steel or Stainless Steel Fire Rated.
Strike: For 5/8” stop, plus shim for 1/2” stop
Projection: 2-1/2” maximum, 1-7/8” depressed
Reversible: Non-handed, Reversible for all functions and trims
For Doors: 1-3/4” thick standard, specify if other than 1-3/4” thick
Backset: 2-3/4”
Door Width: For door 2’6” to 3’ wide use standard 3’ wide standard;
Door Width: For door 3’1” to 4’ wide use extended 4’ wide;
Stile: 4-1/4” minimum
Mounting Height: 40-5/16” from centerline (CL) to finished floor recommended
Check your local building codes for actual height requirements.
Dogging: 1/4 turn, hex key dogging
Operation: slight pressure on any point on the bar at all times
