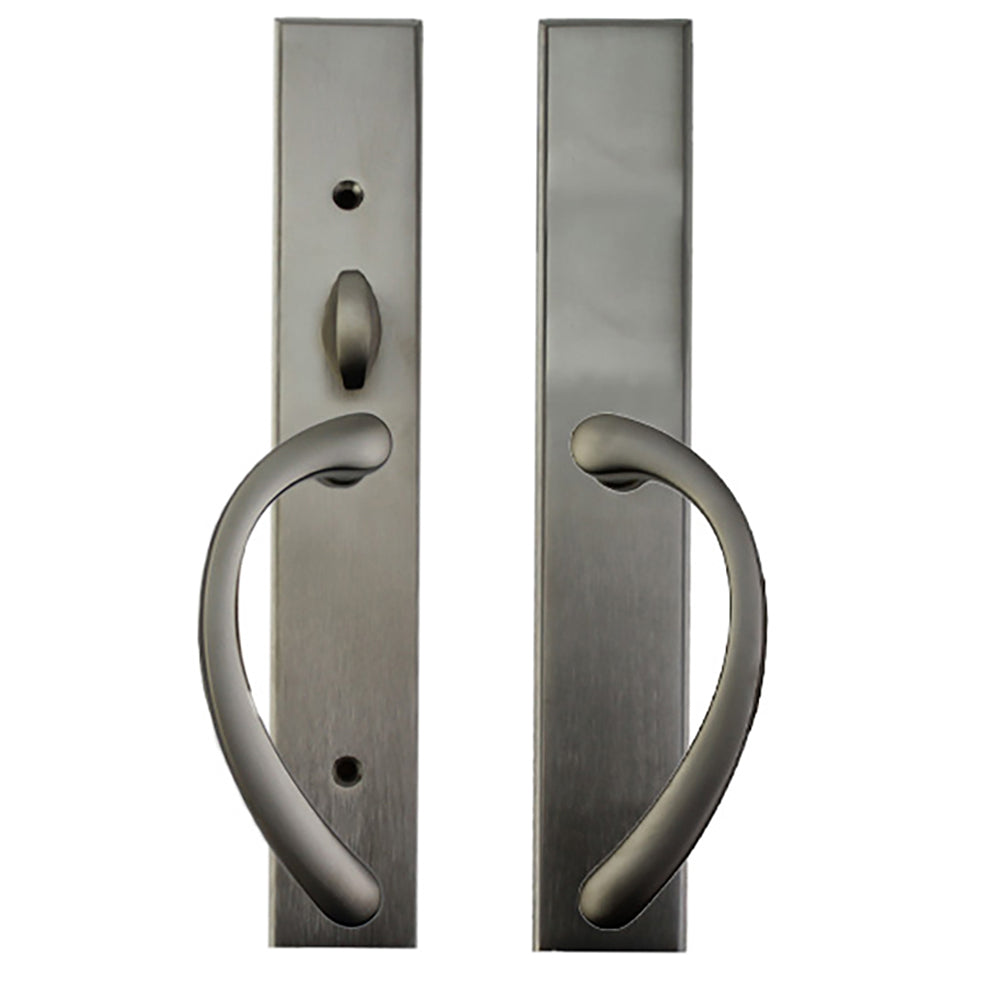

Expressions 2 x 12 inch Wide Square Plate, Non-Keyed Patio Sliding Door Handle
This Elegant handleset will replace numerous standard handle sets used with mortise locks. The thumb turn is 4-3/16" from top of plate. By just re-drilling 2 screw holes this may fit your door.
Compare measurements to be sure the extra long plate will cover your old marks on door.

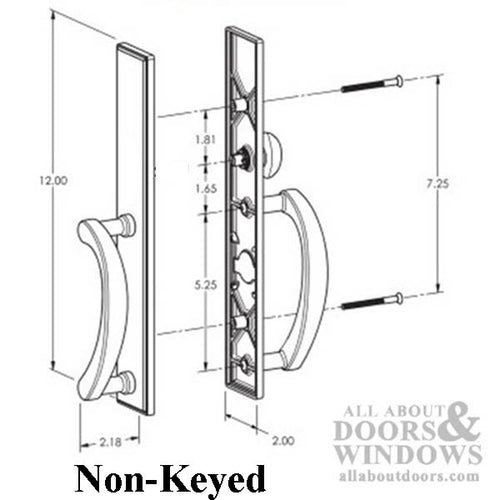

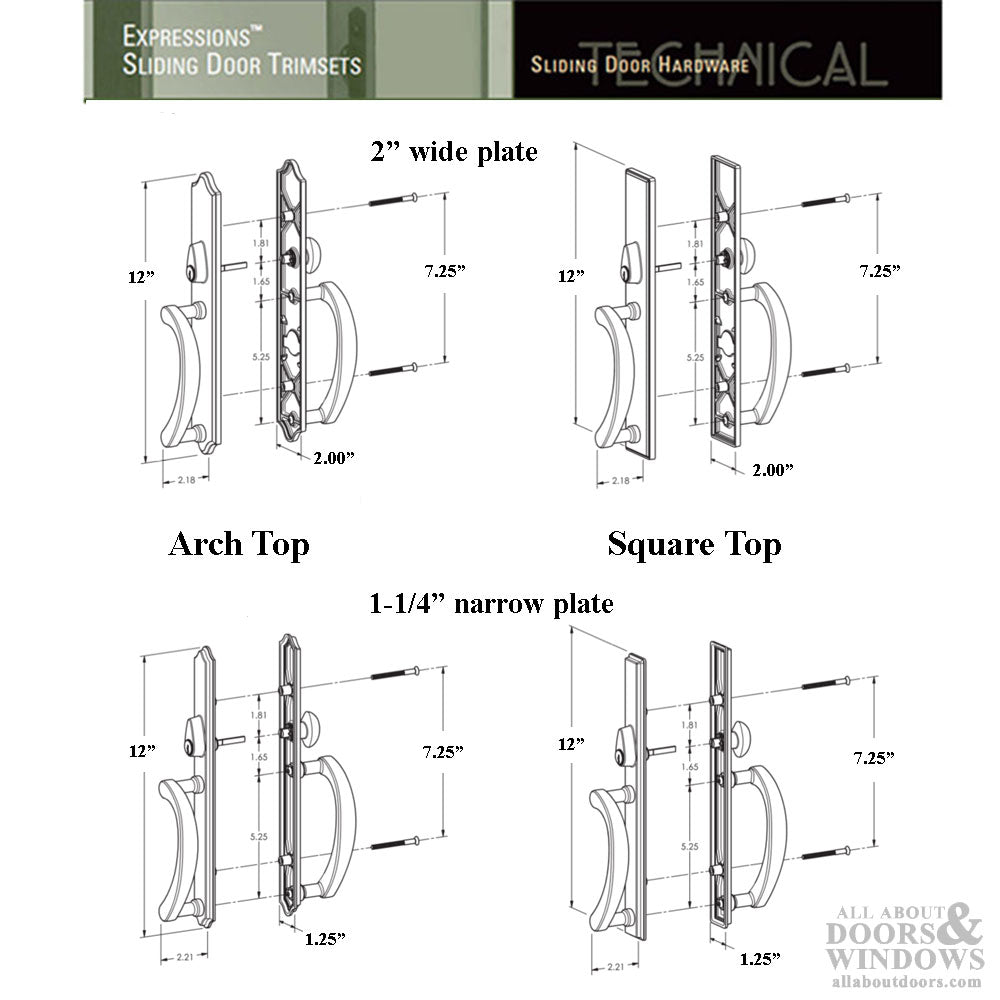

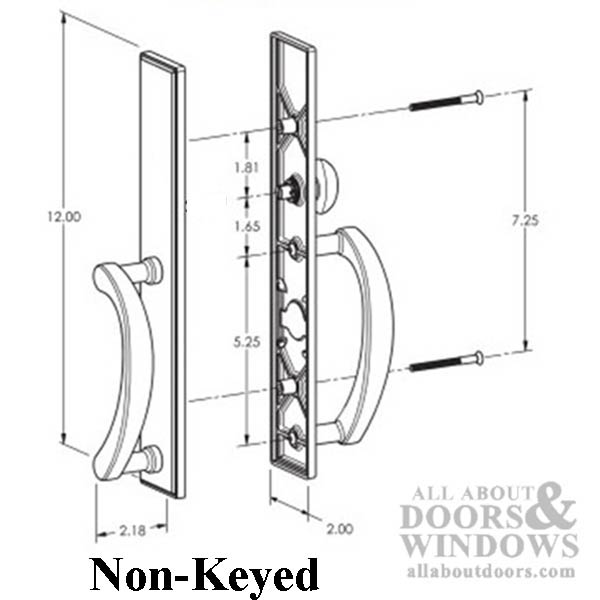

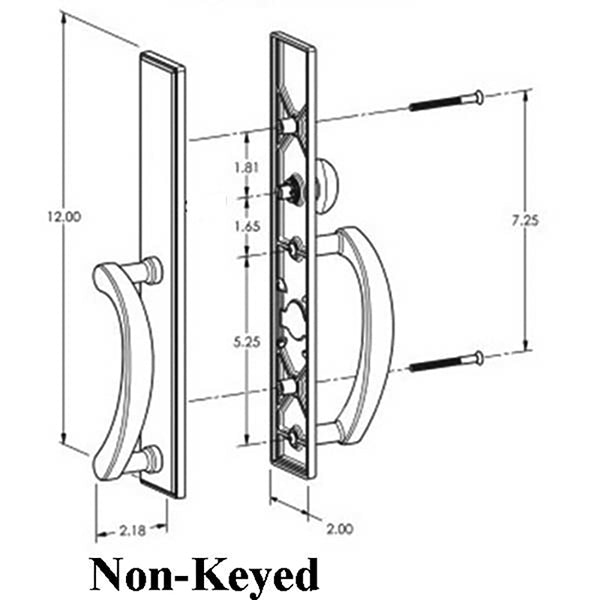

Specifications
Escutcheon Size: 2 x 12 inch
Screw Hole Center: 7-1/4 inch
Door Thickness: 1-3/4 and 2-1/4 inch
Substrate / Material: Brass

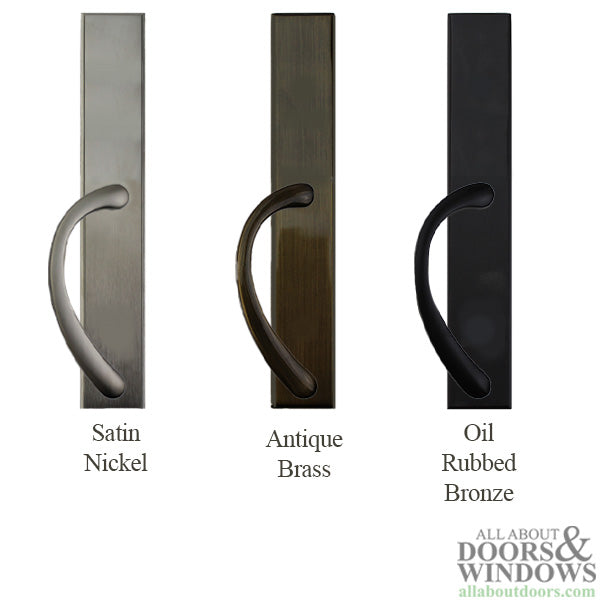

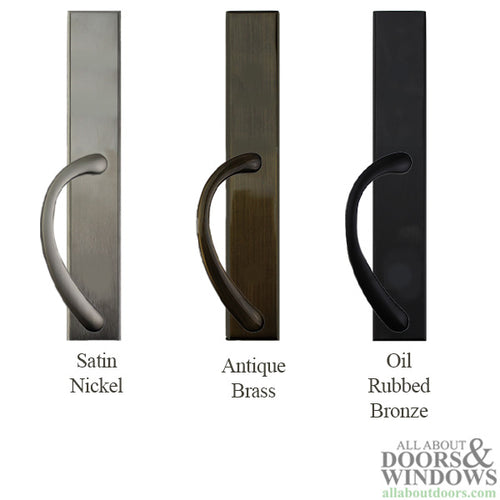

Available Finished: Brass Material (2 week lead time, special order)
Oil Rubbed Bronze
Chrome
Black
Antique Brass
PVD Brass
PVD Satin Nickel
Functions:
Keyed Entry, Schlage Key
Non-Keyed Patio, Inside Thumb turn, NO Key
Dummy / Fixed pulls
Priced and sold as kit.
