FAMA Mortise lockset for aluminum storm and screen doors.
Sorry, Sold Out - Not available - See replacement options below.

Replace with 302035 or 302043
302035 is a better fit.

This is a good Replacement for discontinued PADO Storm door locks
Door Thickness: Fits 1-1/4 inches thick Storm Doors
The spindle is too long for 1 inch doors, but may be cut as needed

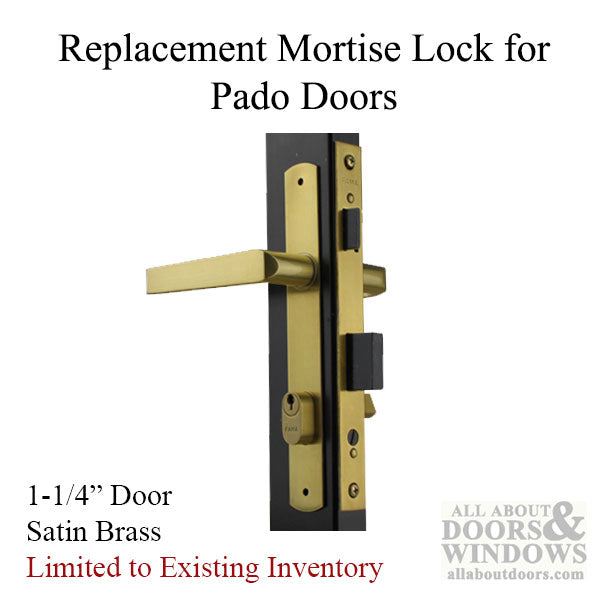

This is a good replacement for the PADO storm door hardware sold by Sears, Emco and others
Will work on others doors, buy may require possible modification.

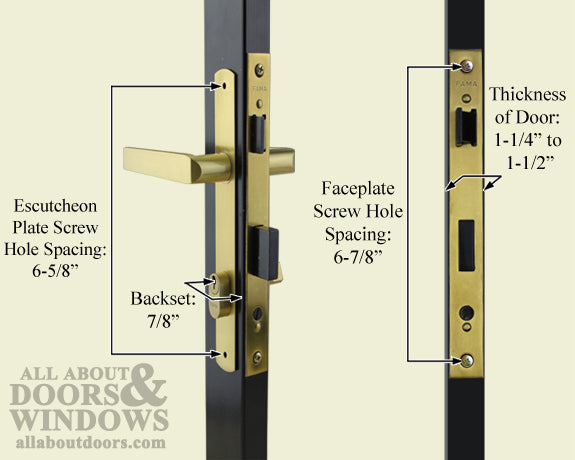

Backset: 7/8 inch
Faceplate Width: 13/16 inch
Faceplate Length: 7-3/4 inch
Faceplate screw spacing: 6-7/8 inches
Escutcheon plate screw spacing: 6-9/16 inches
Escutcheon plate Length: 7-3/8 inch
Key Cylinder Length: 1-7/8 inch
Cylinder Shape: oval shaped Keyed cylinder cylinder,
2 keys (we do Not have Blanks to cut additional keys)
Keyway: Unknown
Color / Finish: Satin Brass

Priced and sold each.

Please note: Due to these being no longer available, we are selling off all of our stock of it. Faceplates, strikeplate, lock and cylinder may have slight blemishes or scratches. There are NO SCREWS except for the cylinder screw included with this item. There are no returns on this item. It is a clearance, closeout item.

How to Change Handing:
Reverse spring latch: There are arrows embossed in the lock body behind the spring latch
1. push arrow forward and up
2. Pull latch out and rotate
3. Push latch back in
4. Test the functionality of lock before putting back in door.
