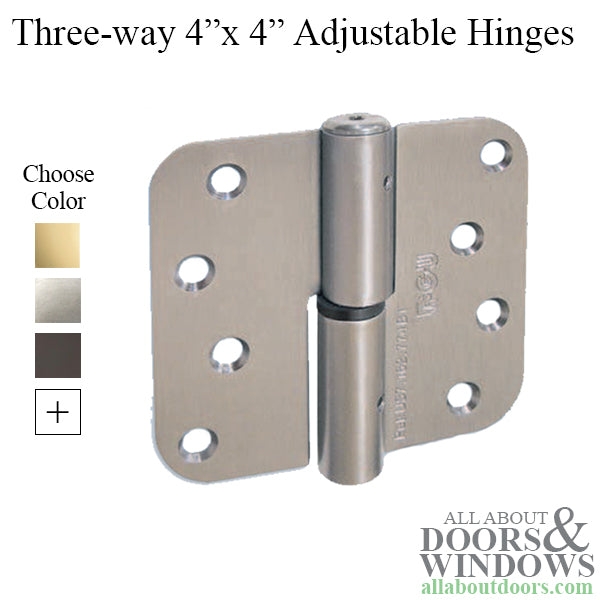

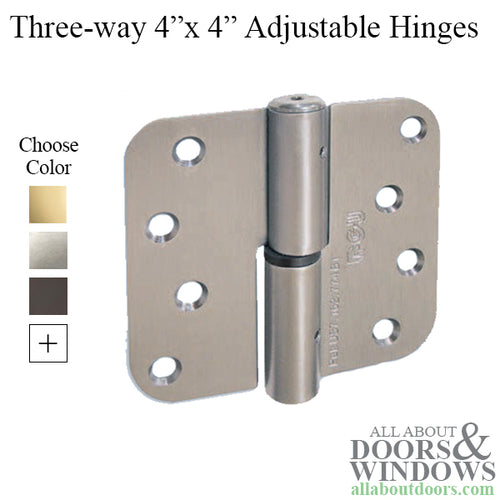

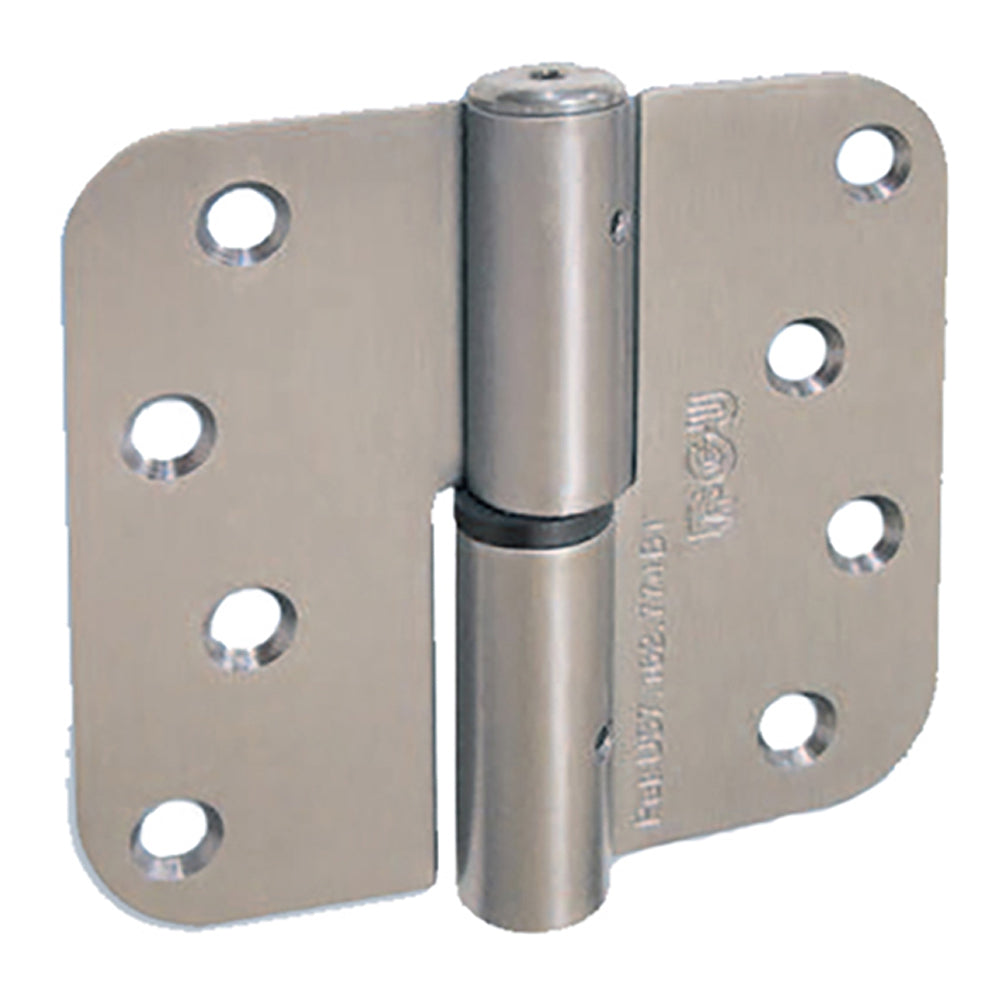

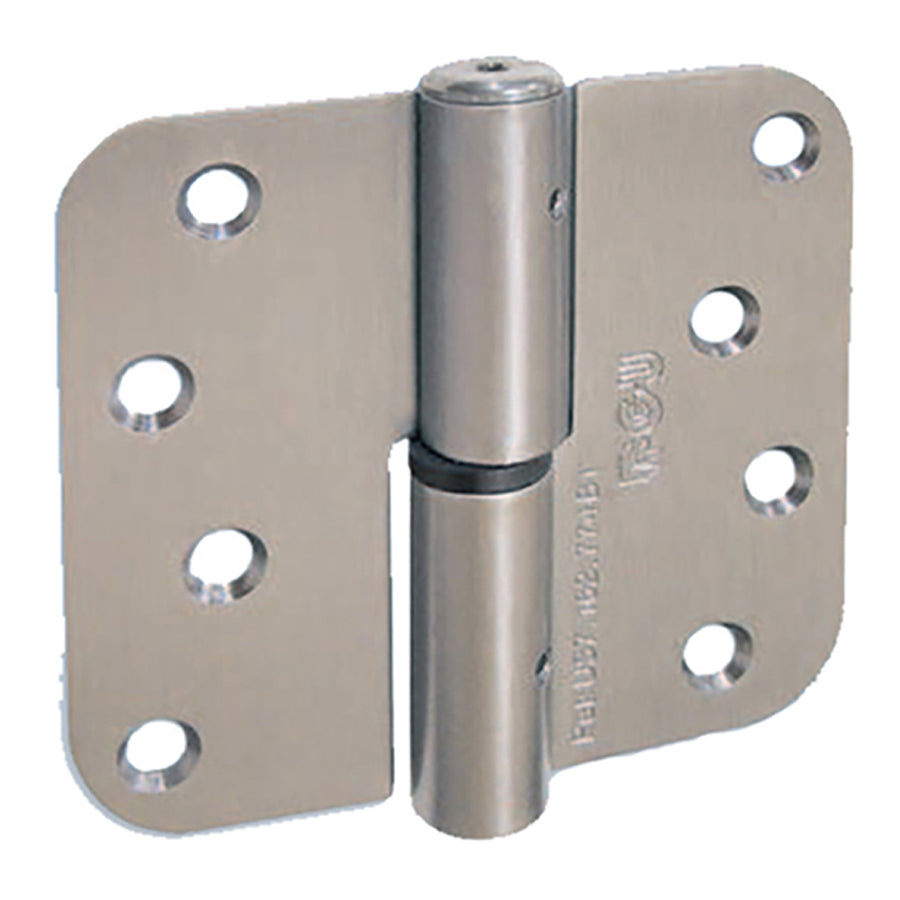

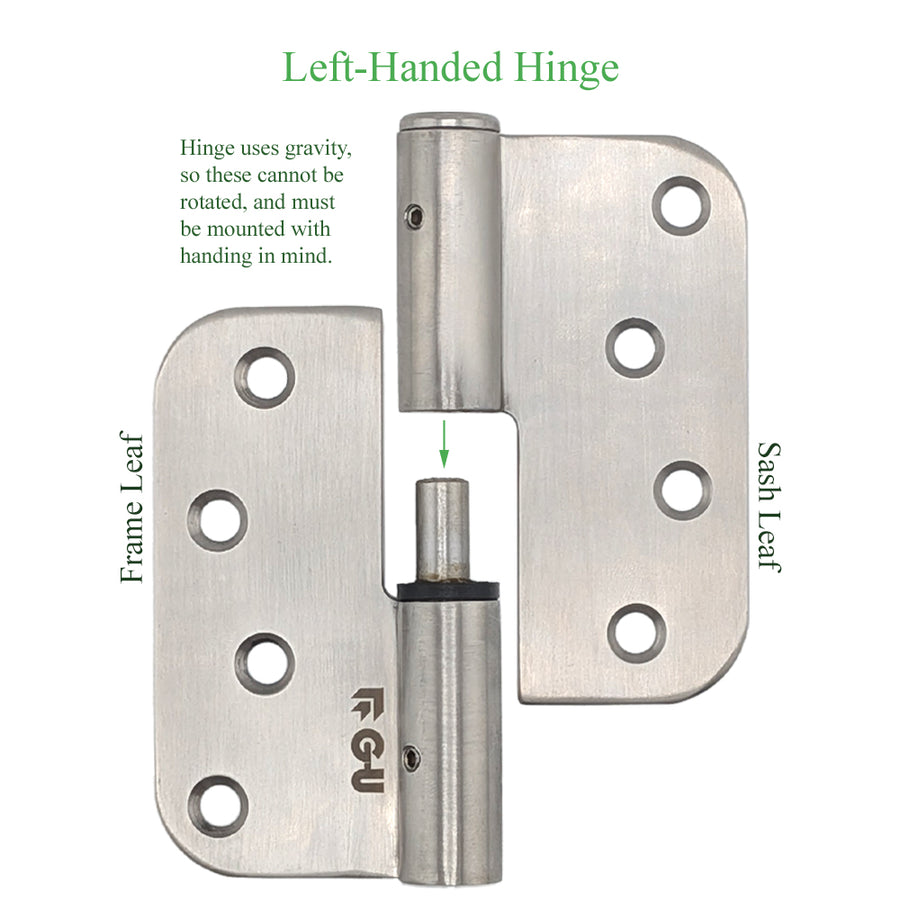

Three way adjustment hinge that can be used to increase or decrease weather seal pressure on door panel.
1. Horizontal, Sideways Adjustment - Width ±2mm
2. Vertical, Up and down Adjustment - Height -2mm, +5mm
3. Compression Adjustment - In and Out ±2mm
Additional Information:
-4"x 4" size with round 5/8" corners

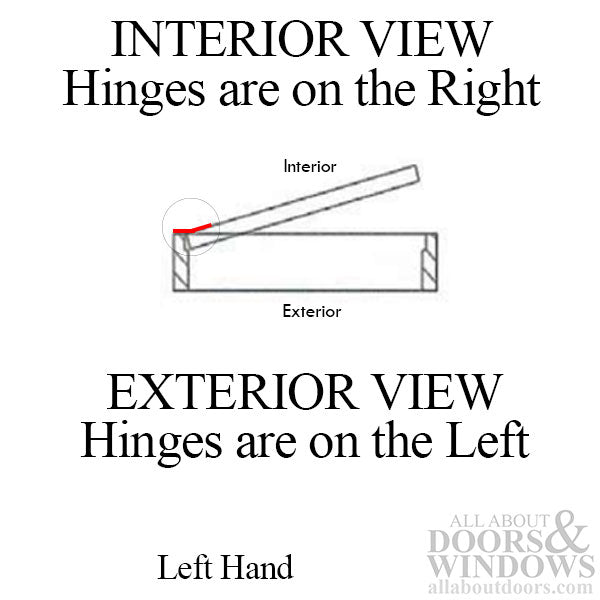

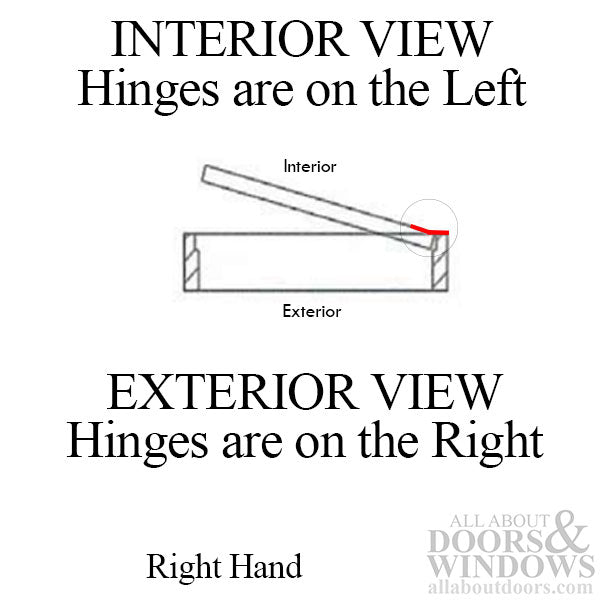

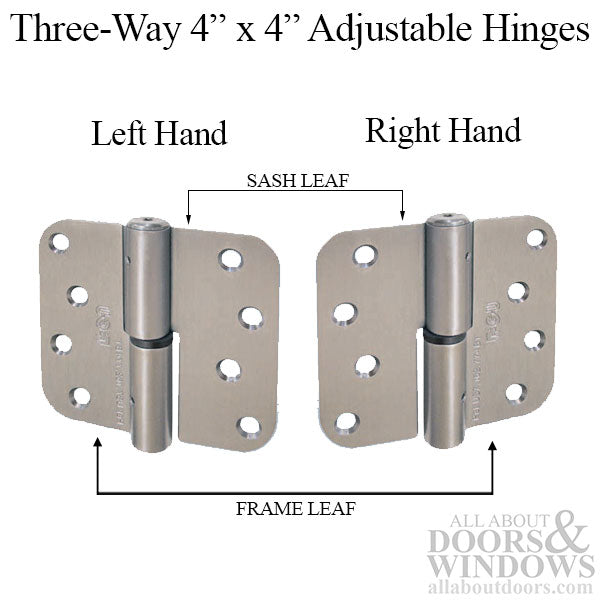

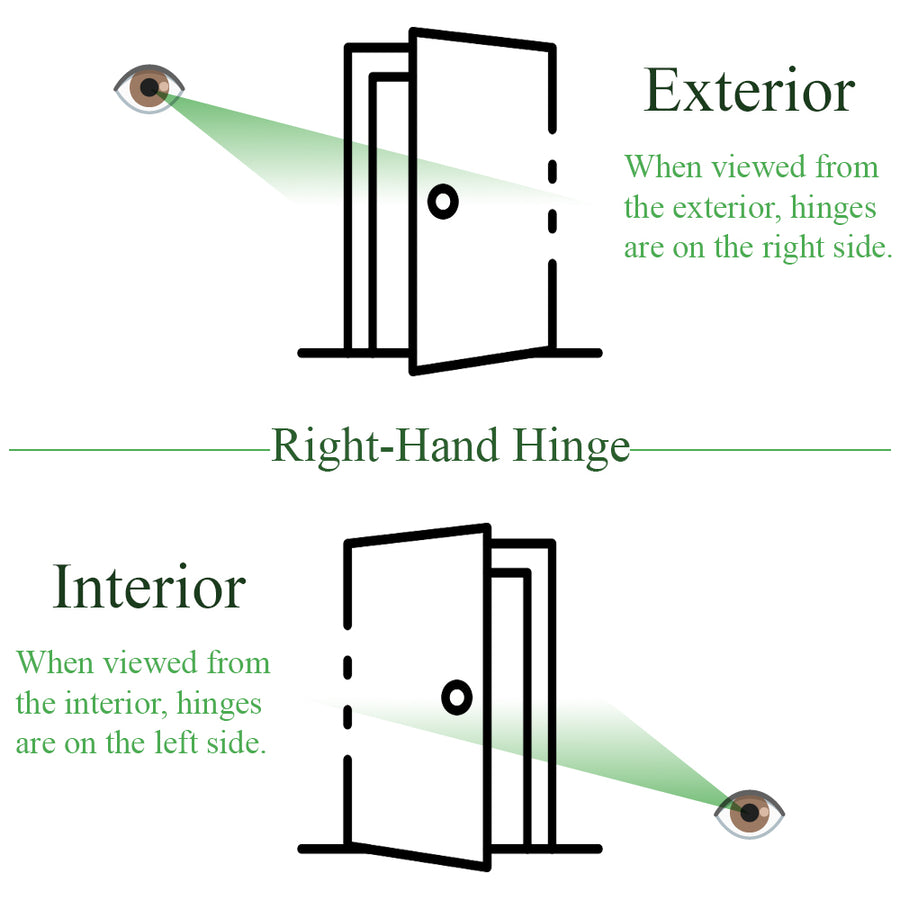

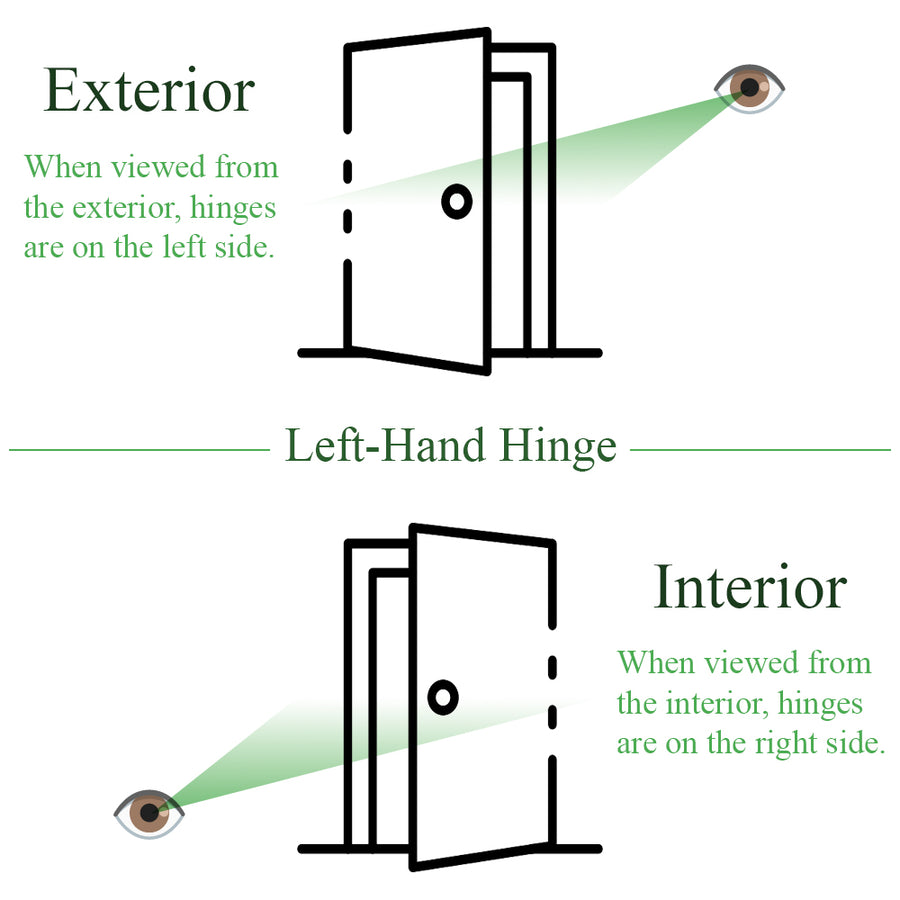

-Made for Inswing or Outswing doors
-The adjustment can be done with the door closed removing any adjustment guesswork
-Stainless Steel
Includes: Flat head screws with Philips sockets, Black adjustment bushing, and Allen Keys.
Recommended Screws: # 10 x 1-1/4 for Door Panel and # 10 x 3/4 For frame - actual sizes may vary depending on material and application.
Note: These are Non-Stock items, allow 2+ weeks for delivery
Related Hinges:
6-C8060-00 = Square / Radius Corner, 304 Stainless Steel
6-C8062-00 = Radius corners, 304 Stainless Steel
6-C8072-AZ = Radius corners, Standard SS
