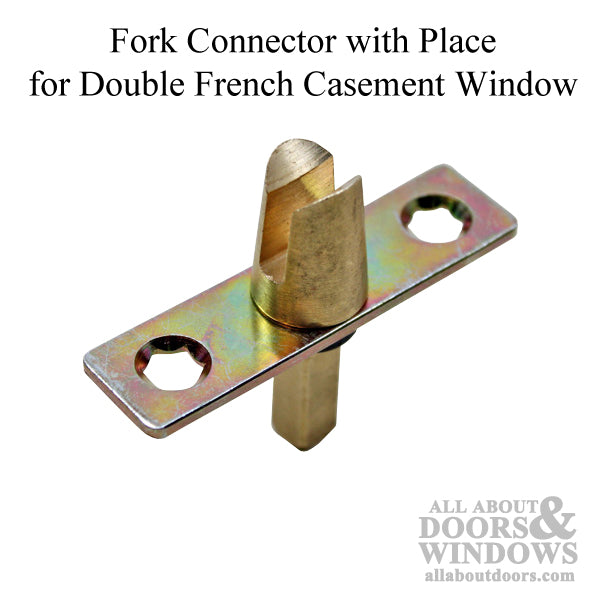

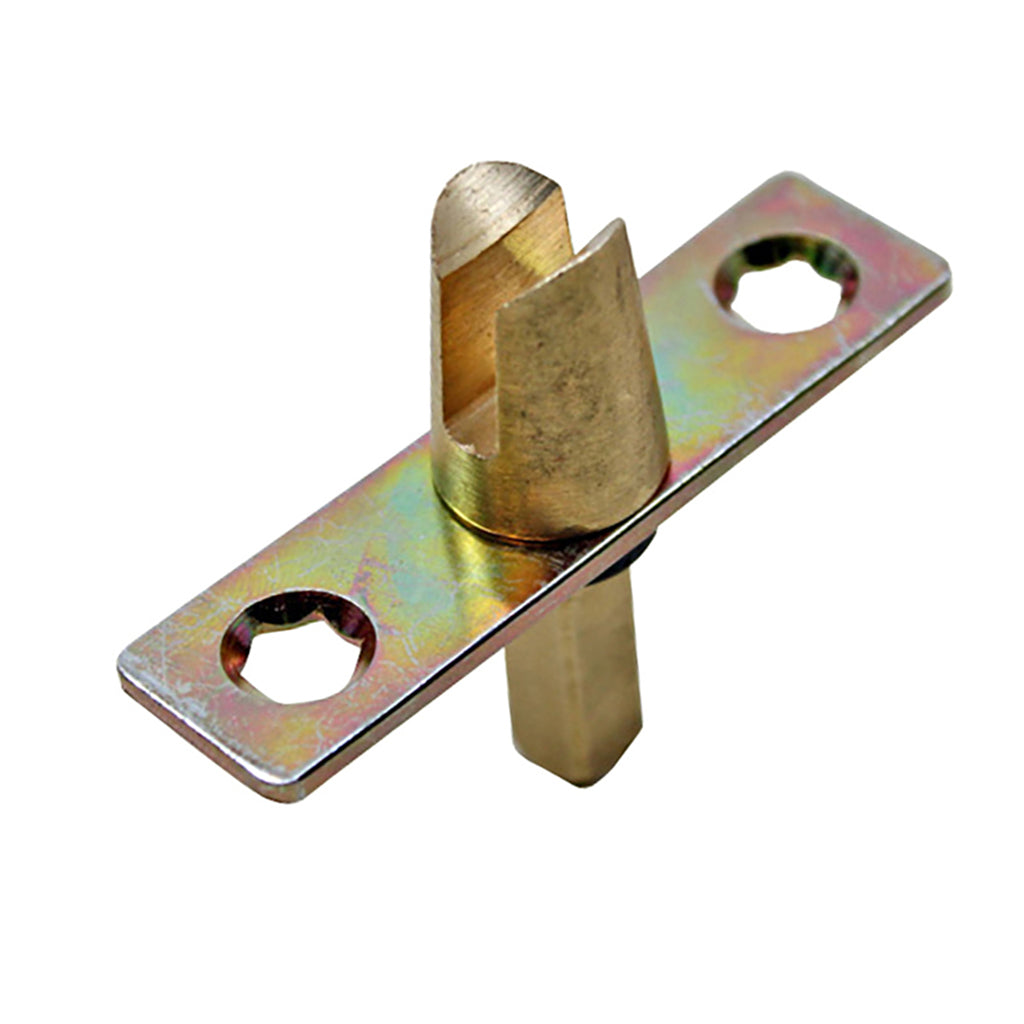

Fork Connector with Plate for Double French Casement Window

Fork Connector with Plate for Double French Casement Window.

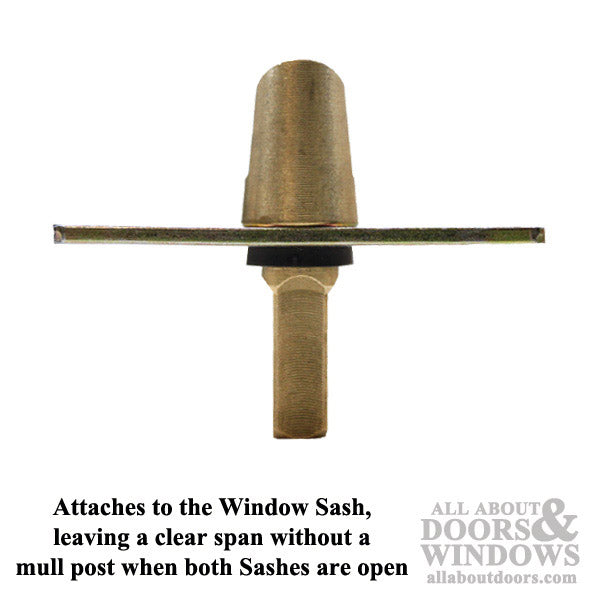

This French window part attaches to the window sash, leaving a clear span without a mull post when both sashes are open.

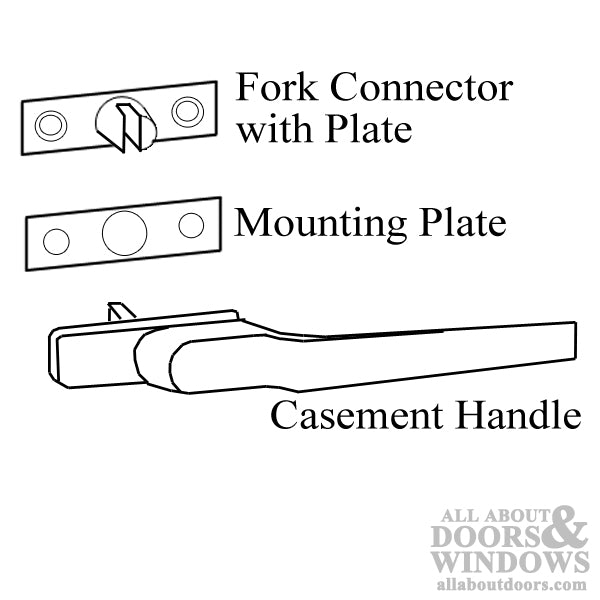

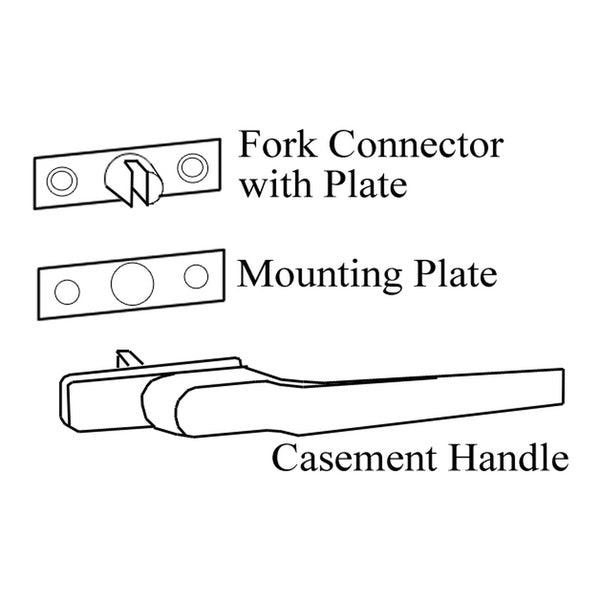

This is used with a HOPPE French Casement Window handle, which has a shaft that extends through the mounting plate (part number 2342856) and then connects with the fork and turns it, which engages the gear that locks the window sash.

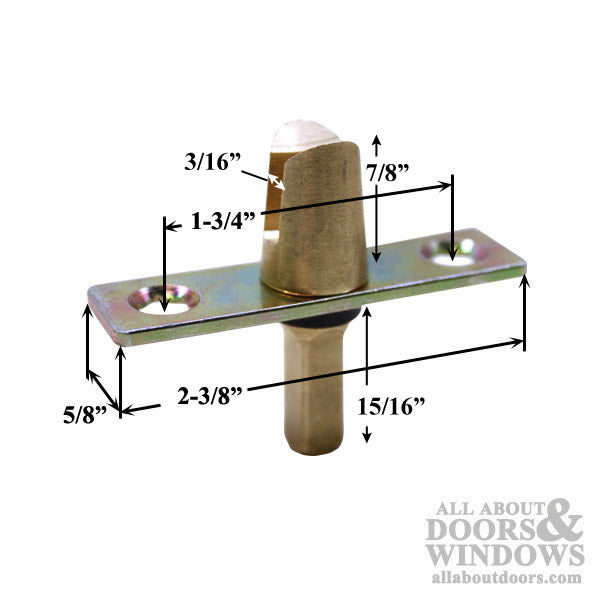

Length: 1-7/8 Inch
Faceplate Length: 2-3/8 Inch
Faceplate Width: 5/8 Inch
Hole Center: 1-3/4 Inch
Spindle measurement from behind the plate: 15/16"
Top fork is positioned 7/8" above the plate
Distance for the opening of the fork: 3/16"

Contents: 1 Fork Connector

French Casement Hardware is Priced and Sold Each.

Available, Shaft Lengths

3849077 - 20.5 mm / 0.807 inch

3849085 - 24.0mm / 0.9448 inch

3849093 - 29.5 mm / 1.1614 inch
