Replace with 4990246

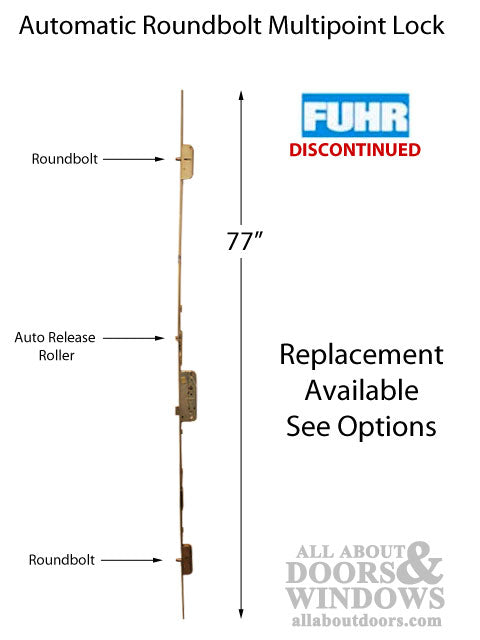

This is an Automatic Roundbolt Multipoint Lock
It features an Automatic Release Roller at 7-1/4" above the Handle Cylinder
It has one Roundbolt Latch at 31-3/8" above the Handle Cylinder
There is another Roundbolt Latch at 26-1/4" below the Handle Cylinder

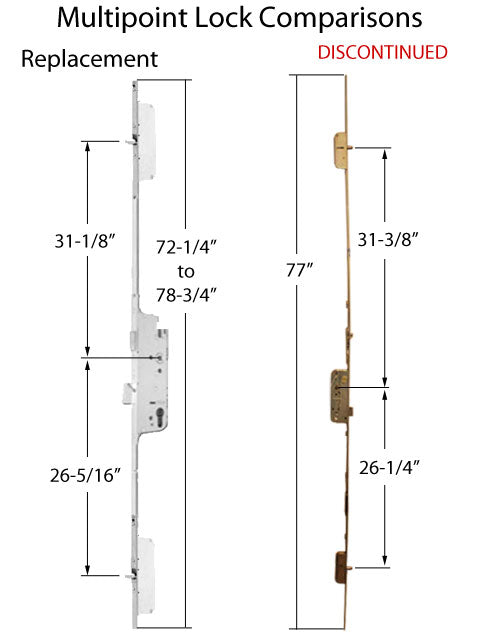

Discontinued Lock Measurements:
Backset - 45mm (1-3/4")
Handle Height - 36"
Faceplate Width - 16mm (5/8")
Handle Spacing (PZ) - 92mm (3-5/8")
Deadbolt Throw - 1/2"
Roundbolt Throw - 3/4"
Roundbolt Gear Box Length - 4-11/16"
Roundbolt Gear Box Depth - 1-11/16"
Overall Length - 77"
Main Lock Body Length - 7-3/8"
Main Lock Body Depth - 2-1/2"
We have developed a Replacement Kit for this lock.
Please see 4990246

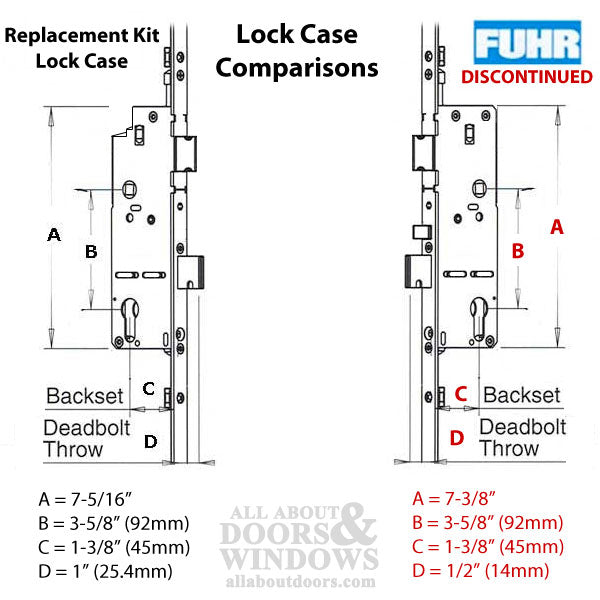

Replacement Kit Lock Measurements:
Backset - 45mm (1-3/4")
Handle Height - 36"
Faceplate Width - 16mm (5/8")
Handle Spacing (PZ) - 92mm (3-5/8")
Deadbolt Throw - 1"
Roundbolt Throw - 3/4"
Roundbolt Gear Box Length - 5-1/8"
Roundbolt Gear Box Depth - 1-3/4"
Overall Length - 72-1/4" to 78-3/4"
Main Lock Body Length - 7-5/16"
Main Lock Body Depth - 2-1/2"
NOTE:
The Replacement Kit is the closest you can get to an exact replacement.
It will require some modifications to the Door Jamb.
Guide to Replacement Process: Replacing a FUHR Roundbolt Multipoint Lock
Additional Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
