Fuhr 77 inch Roundbolt Multipoint Lock 55mm backset - Discontinued - See Replacement Options
Part Number: 499014699 Price: $0.00Replace with 4990223

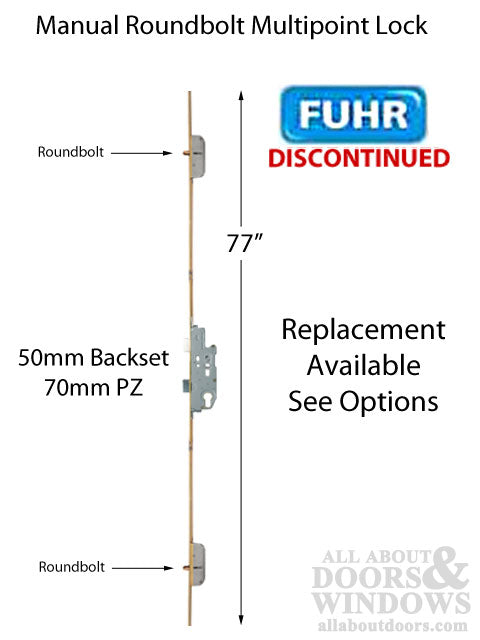

This is a 77" Roundbolt Version Multipoint Lock made by Fuhr.
It features 2 Roundbolt Locking Devices.
One is located 29-3/4" below the center of the Handle Cylinder.
The other is located 29" above the center of the Handle Cylinder.
This lock is no longer available for purchase and must be replaced.

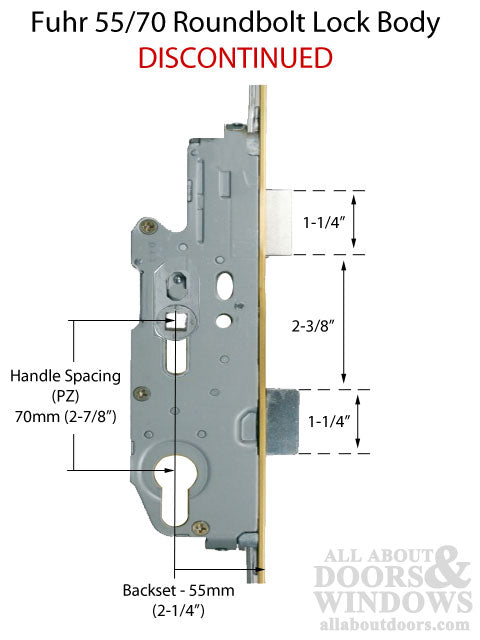

Discontinued Lock Measurements:
Overall Length: 77 inches
Backset: 55mm (2-1/4")
Faceplate Width: 16mm (5/8")
Handle Height: 39-1/4"
Handle Spacing (PZ): 70mm (2-7/8")
Main Lock Body Length: 7-13/16"
Main Lock Body Width: 2-7/8"
Roundbolt Gear Box Length: 5-1/8"
Roundbolt Gear Box Depth: 1-7/8"

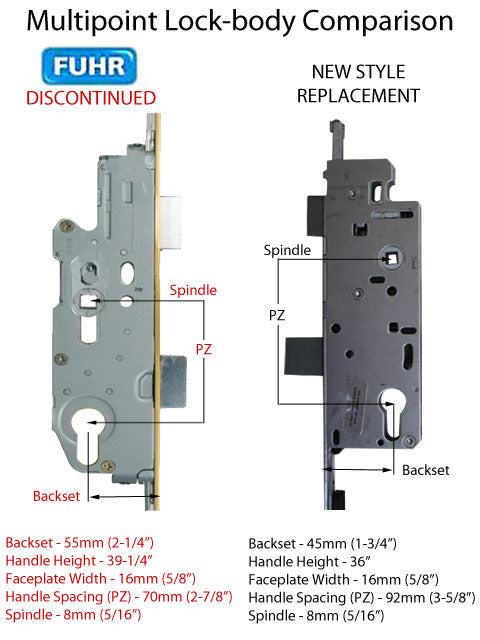

We have developed a Tongue Version Replacement Kit for this lock: part 4990223
Due to the uniqueness of this Fuhr Roundbolt Lock, the easiest replacement can be quite an undertaking.
A complete replacement will require you to change or replace your Strikes and Handles.
Your door jamb will also require modifications, such as relocating the new Deadbolt and Spring Latch Strikes as-well as the new Locking Device Strikes.
If you are attempting to replace a Fuhr Roundbolt with the measurements above, please contact our office for detailed assistance before you order.
To replace this lock, please read: Guide to Replacing FUHR Roundbolt Multipoint Lock
Additional Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
