Replace with 4990247

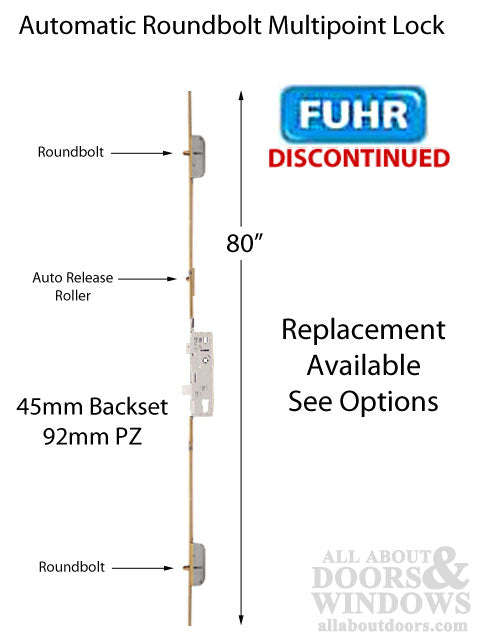

This is an 80" Roundbolt Version Multipoint Lock with a Backset of 45mm (1-3/4")
It features 2 Roundbolt locking devices.
One is located 32-1/8" above the center of the Handle Cylinder
The other is located 26-1/4" below the center of the Handle Cylinder

This lock is no longer available for purchase and must be replaced.

Discontinued Fuhr Roundbolt Measurements:
Faceplate: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing (PZ): 3-5/8" (92mm)
Handle Height: 39" (914mm)
Overall Length: 80" (2032mm)

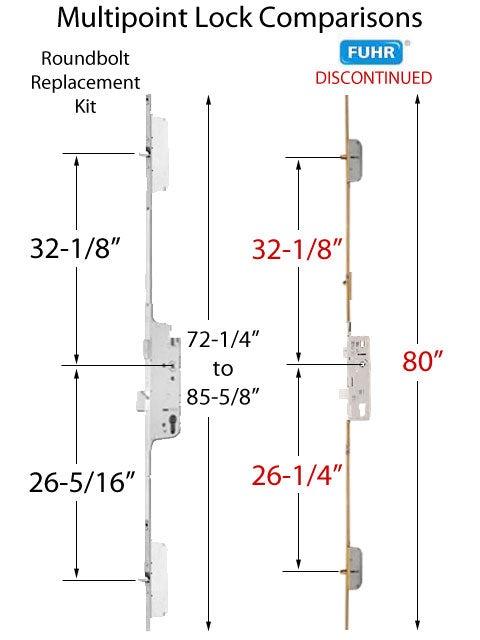

Top Roundbolt Location: from center of Handle Cylinder up - 32-1/8" (816mm)
Bottom Roundbolt Location: from center of Handle Cylinder down - 26-1/4" (668mm)
Roundbolt box is 1-3/4" in Depth and 5" in Length.

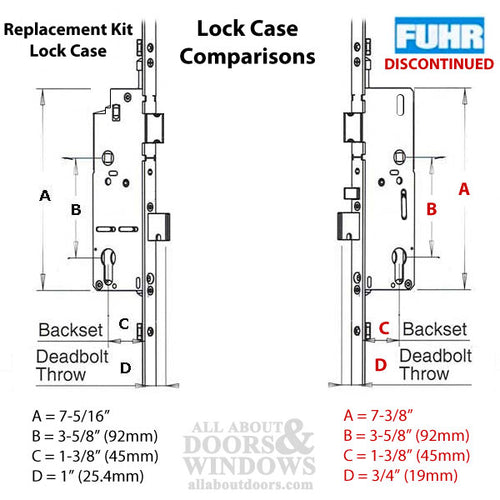

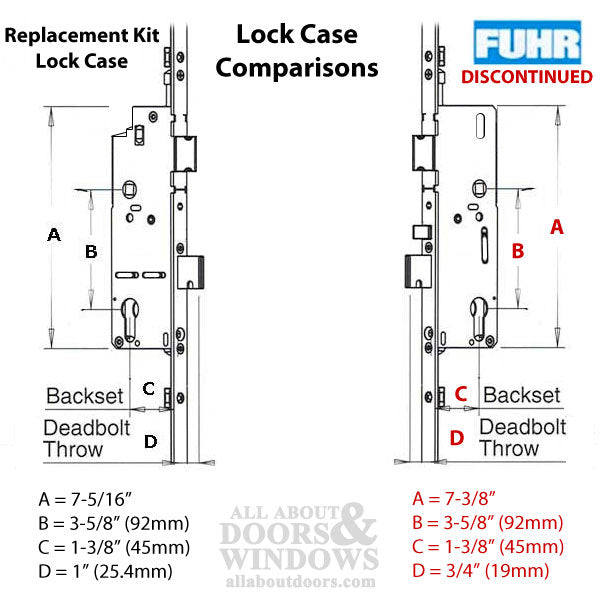

For detailed information on Lock Comparisons and Installation, please read: Replacing FUHR Roundbolt Multipoint Lock

Replacement Options: We have developed a Roundbot Version Replacement Kit4990247 - Roundbolt Version Replacement Kit
Additional Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
