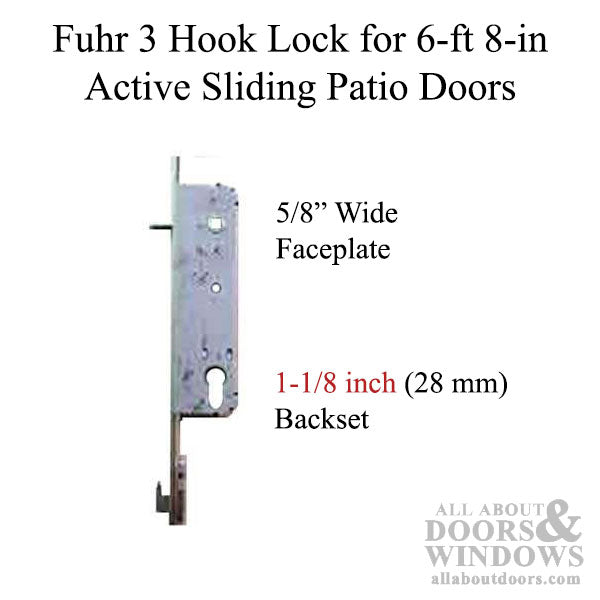

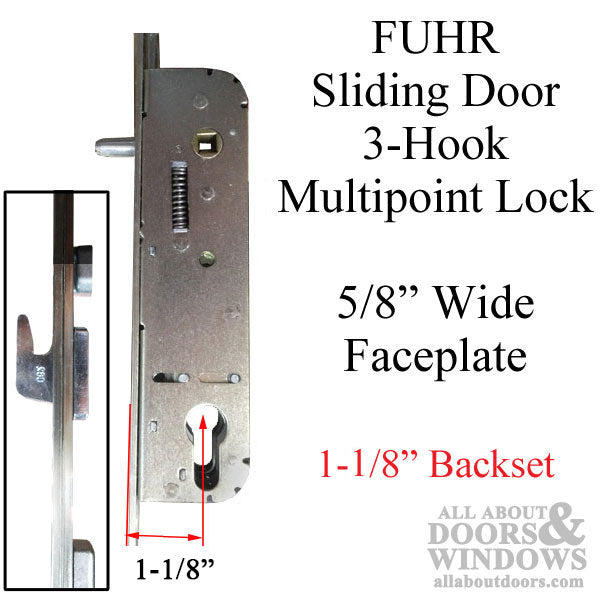

Fuhr inline-gear multipoint lock (2 or 3 piece lock case).

For 6-foot 8-inch active sliding patio door.
Spindle Diameter: 5/16 inch (8 mm)

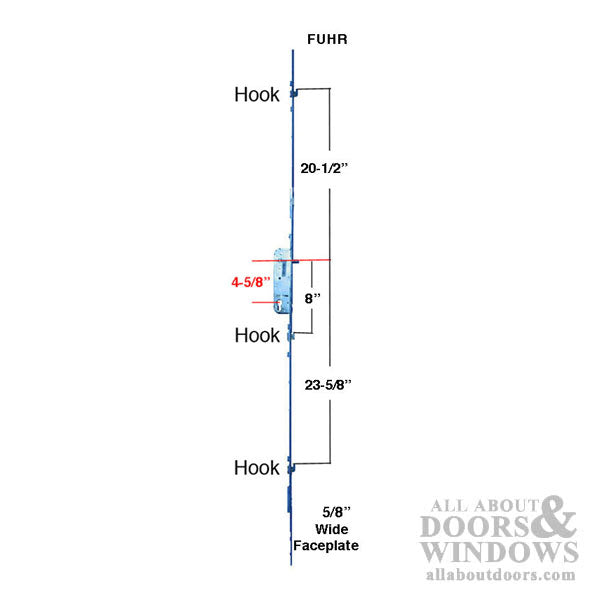

Face Plate Measurements:
Gear section: 5/8 inches wide x 61-3/4 inches long.
Three hooks located 11-3/4 & 27-1/2 from the bottom and 5-3/4 from top when door is in unlocked position.

Some doors have a top section to extend the lock to the top of the door.  These extensions are no longer available and must reuse original


Center of handle down to center of first hook slot, 9"
Center of handle down to center of second hook slot, 25"
Center of handle up to center of top hook slot, 19-1/2"
There are 4 tick marks on the bottom end of the faceplate to cut to fit different doors.

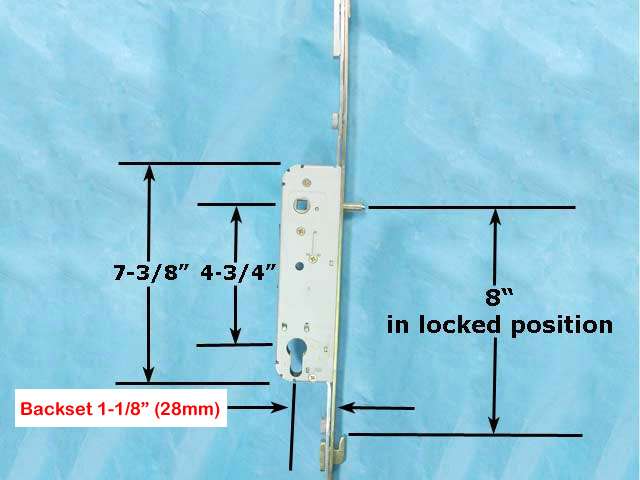

Lock Body Measurements:
Backset: 1-1/8 inches (28 mm)
Handle PZ (spindle to center of key cylinder): 4-3/4 inches.
(Cylinder will not operate when in unlocked position)
Sticker on some locks: U2/ KOP or 11Z/ KOP.

Related Fuhr Sliding Door Locks:
40213 - Backset 1-3/8 (35mm).

Troubleshooting:
How to Open a Stuck FUHR Sliding Door Lock
How to Replace the Latch on a FUHR Lock
Priced and sold each.
