Hinged Door; Fuhr 6-Point active panel Lock Case, 8-0 Hinged Patio Door,
Face Plate Measurements:
Faceplate width: 5/8 Wide (16mm)
Overall Length: 92-15/16 inches long.

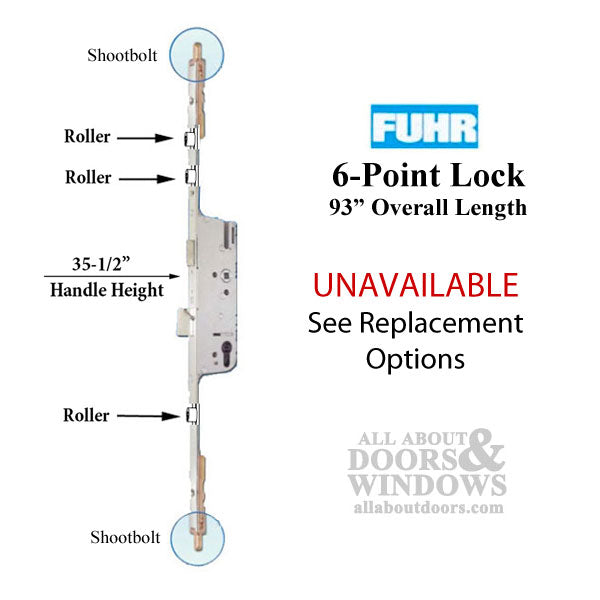

Three Locking Rollers
Below Handle: 13-7/8 locked or 13 inches; Unlocked position - (Roller in Up Position)
1st roller Above Handle: 13-3/8 Locked or 14 inches in unlocked position
2nd roller Above Handle: 37-1/4 Locked or 38 inches in unlocked position
Two vertical Shoot Bolts, one at top and one at bottom.

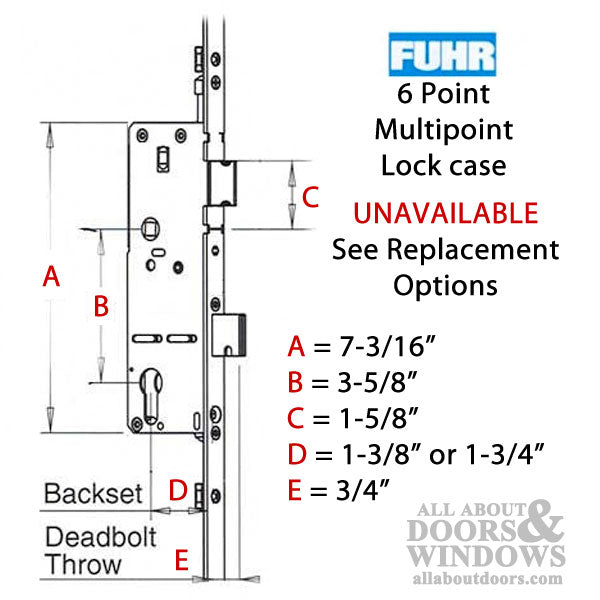

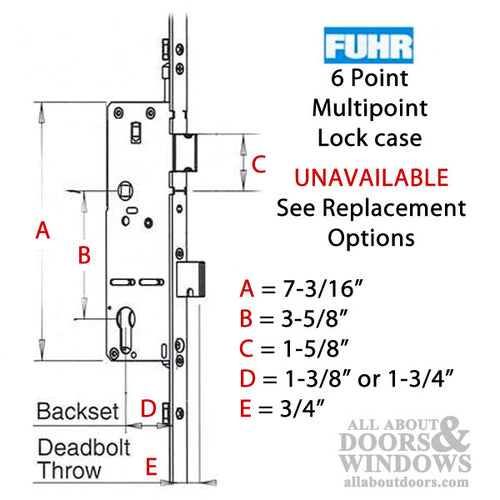

Lock Body Measurements:
Backset: 1-3/8 inches (35mm)
Handle spacing from Center of spindle to Cylinder: 3-5/8 inches (92mm).
Handle Height: 35-7/16 inches.  ( standard is 36")

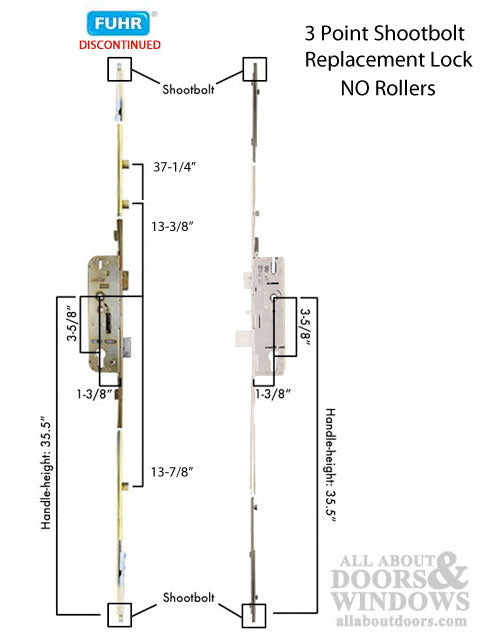

REPLACEMENT OPTION: 4990237-KIT  SHOOTBOLT Version
Includes gear box, middle extension, top and bottom shootbolts



Article: How to Replace FUHR lock in Caradco Door
