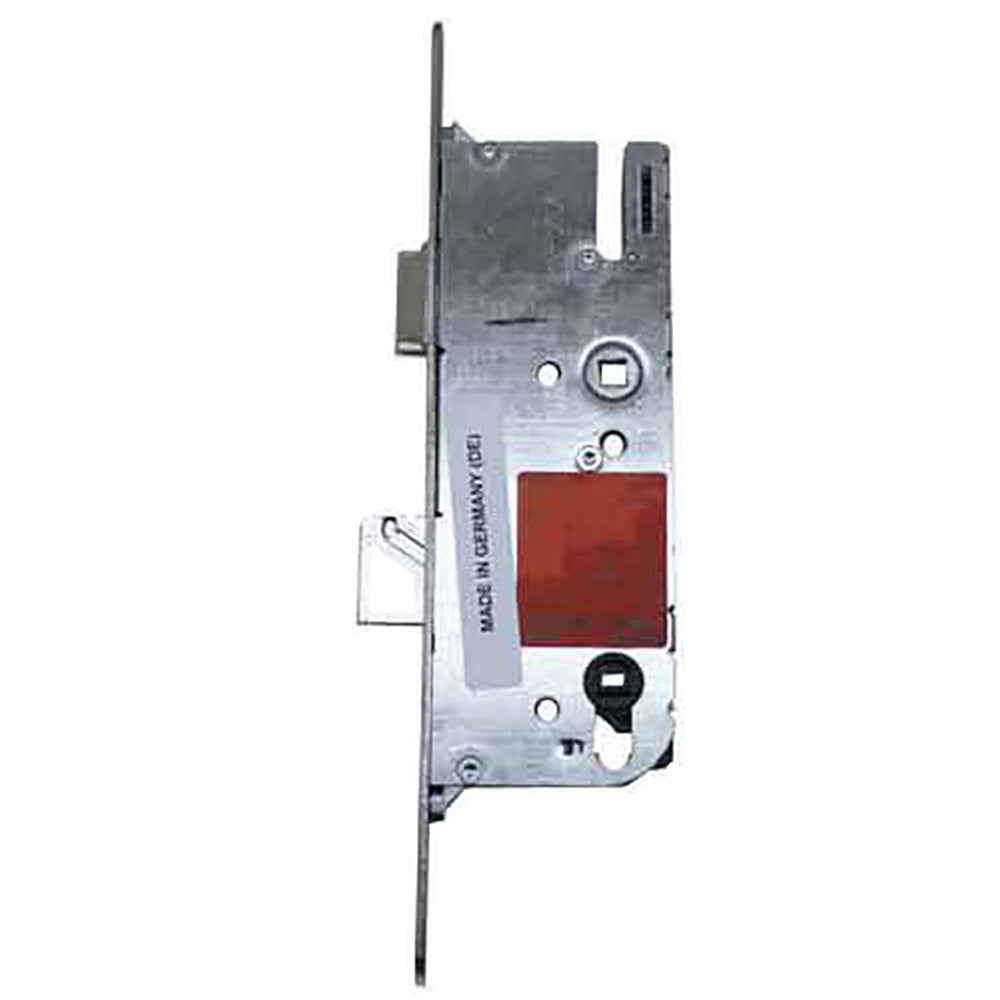

G-U Monolock 2-3/16" Backset  (55mm) Interior and Exterior Door Lock System
(This Locking System is also available with a BACKSET of 35, 40, 45, 50, and  55 mm)

Series: Europa - Monolock Single Point Mortise Lock (SPL) Door Lock Gear

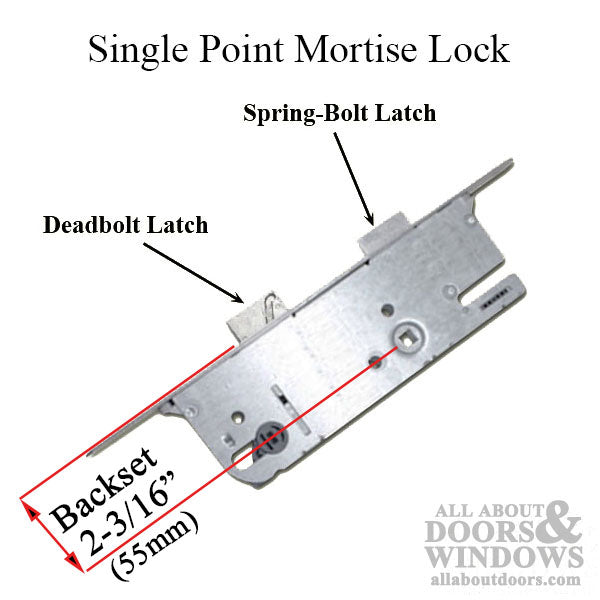

Backset:  2 -5/32 inch (55 mm)
Faceplate Width: 5/8 inch (16 mm)
Spindle Size: 5/16 inch (8 mm) Square
Faceplate Finish: Silver Ferguard
Handle Height: Normally used with 35 Inches (889 mm) Handle Height
Handle to Cylinder Spacing: 3-5/8 inch (92 mm)

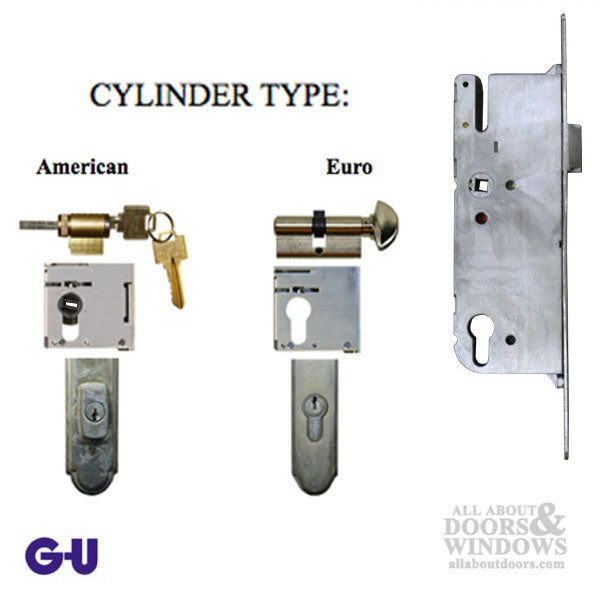

Cylinder: US-Cylinder system with a 90 degree turn of key or thumb turn.

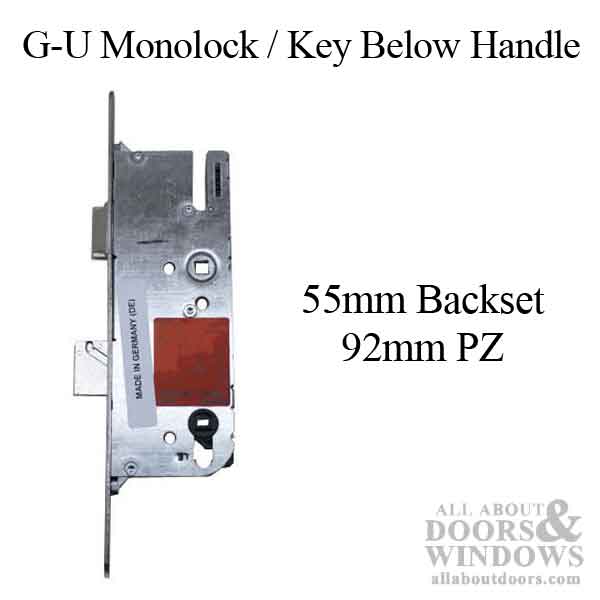

Handle Position: Key below Handle (Europa)

Handing: Reversible

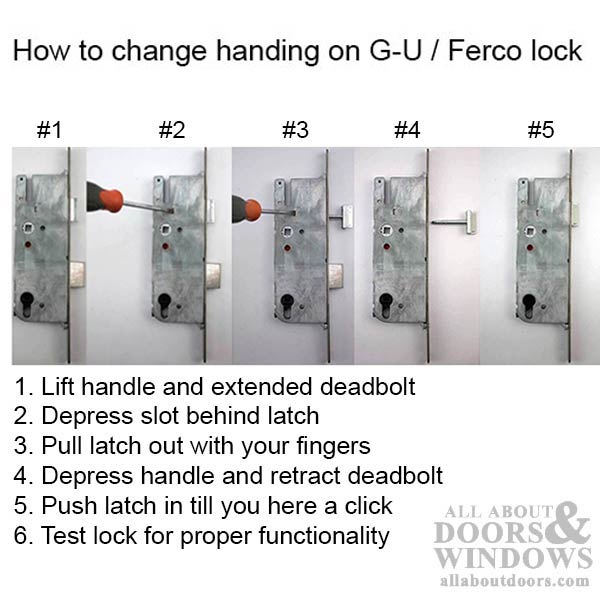

1. Lift handle to extended deadbolt
2. Depress slot behind latch and pull latch out
3. Depress handle to retract deadbolt latch
4. Rotate latch and push back in till you here a click
5. Test Lock
Be sure to operate lock to verify that it functions properly before installation.
The spring latch should retract flush with faceplate if installed correctly.

Key Features:
1 inch (25.4 mm) throw on dead bolt
US design with dead bolt located above lever
Lever controlled releasing of dead bolt and latch
Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
Non-handed, latch easily reversible
Heavy duty mortise construction with reinforced lever return spring system
Available in standard finish, polished brass or stainless steel for increased corrosion resistance
Same hardware groove detail throughout our entire door lock program (router bits available)
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage “C” keyway systems.

To Identify a Multipoint Door Lock
1. Check for manufactures stamp on the lock strip
2. Measure the width of the lock strip
3. Measure the Back set
4. Measure the Center points
5. What locking types are on the strip? (Mushroom, Dead bolt, Hook, etc.)
6. How many of those locking types are on the strip?
7. What color is the lock? (Silver, Stainless Steel, etc.)
8. Is the door UPVC, Aluminum, Composite or Wood?

Note: To extend dead bolt and lock door raise the handle, then use key or thumb turn to secure handles and keep door locked.

Priced and sold each


How to Rehand a GU Single Point Lock
