Custom G-U 4-roller lock is an Italian product, not readily available in the states.
This is a complete 4-Roller Lock .
Includes the 94 inch faceplate and 4 rollers.

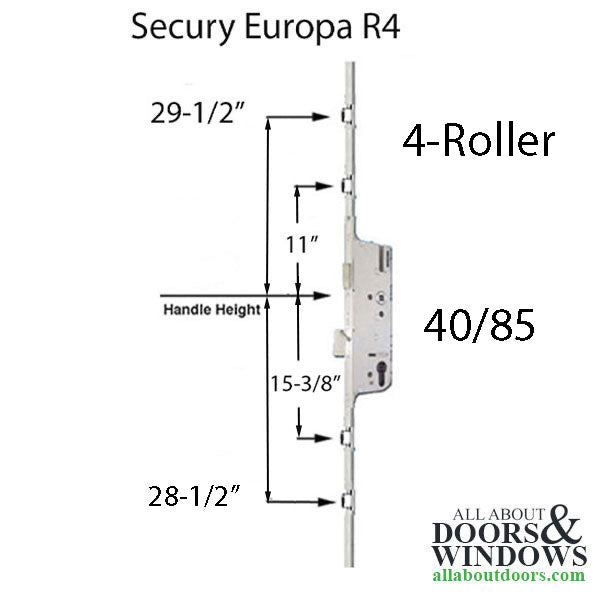

1st Roller Down : 15-1/2"
2nd Roller Down 28-1/2"
1st Roller UP 11"
2nd Roller Up 29-1/2"
Backset: 1-9/16 inch (40mm) 1.5748

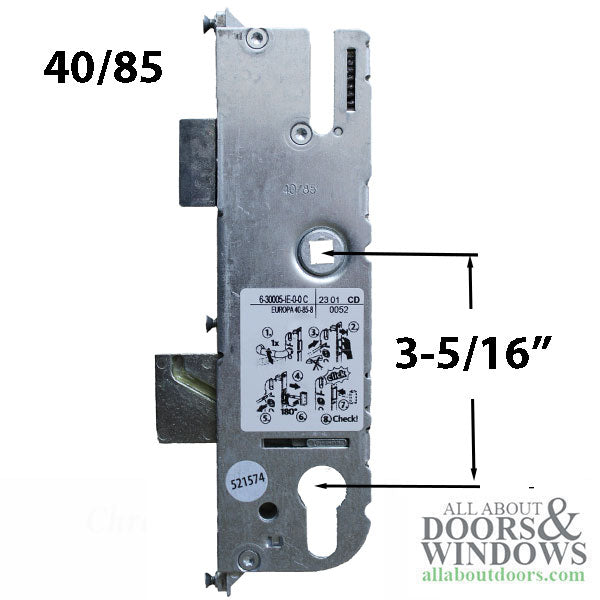

Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.3464
Markings: 40/85 Stamp into metal case
Door Thickness: Varies, up to 3-¼ inch
NOTE: Because the lock is 8 feet long when shipping, it is very expensive to use UPS or FEDEX
Related Items:
GU4085LC - G-U Mortise lock Case Only Custom 40/85 Euro
