G-U Panther New Breed multipoint lock kit with tongues has been Discontinued
Replacement - New Breed Wolverine 45/92 Shootbolt version
Contact office for ordering information.
G-U Panther part number 6-29398-11-08 Information

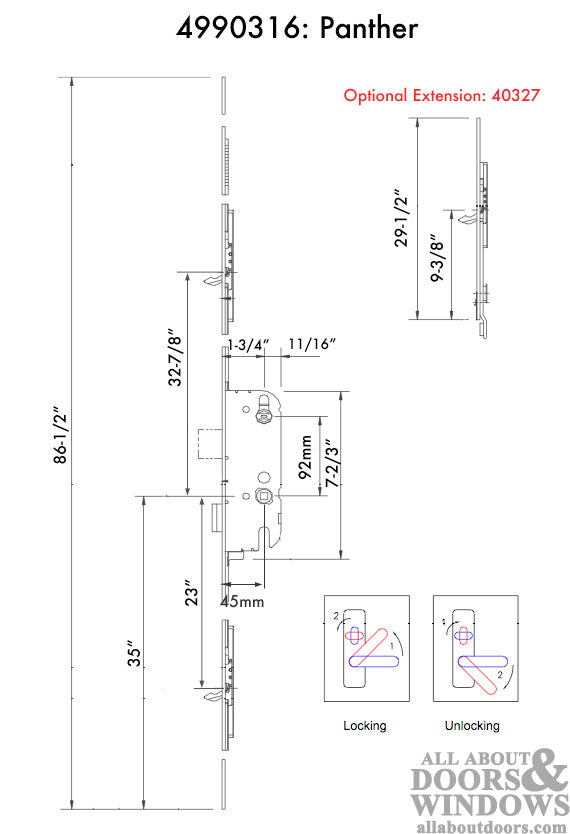

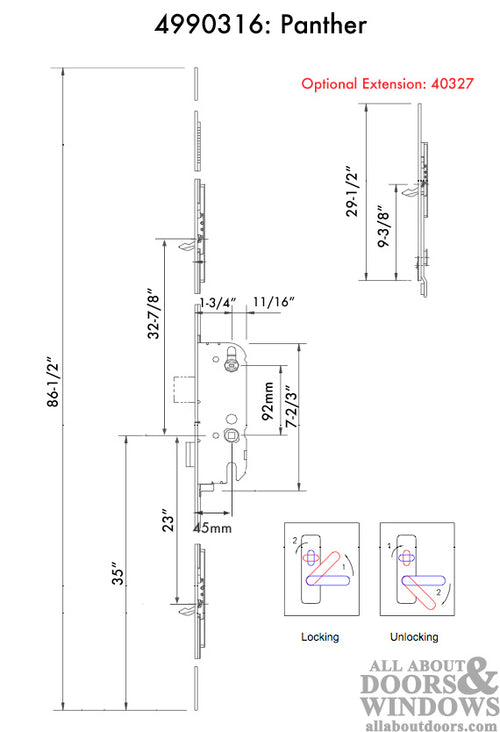

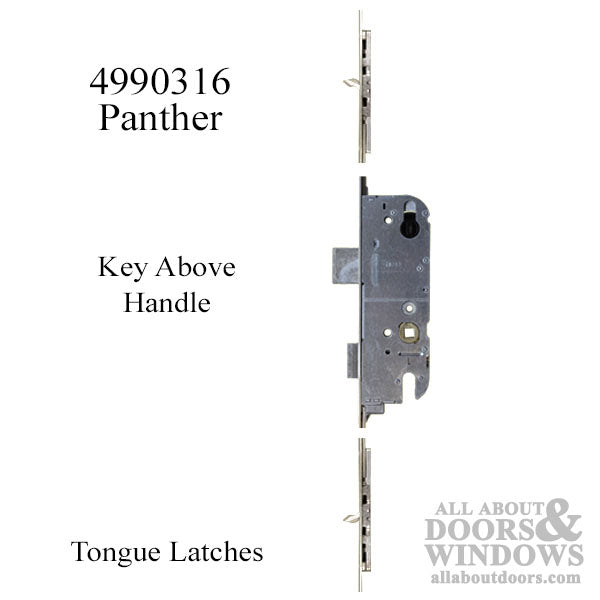

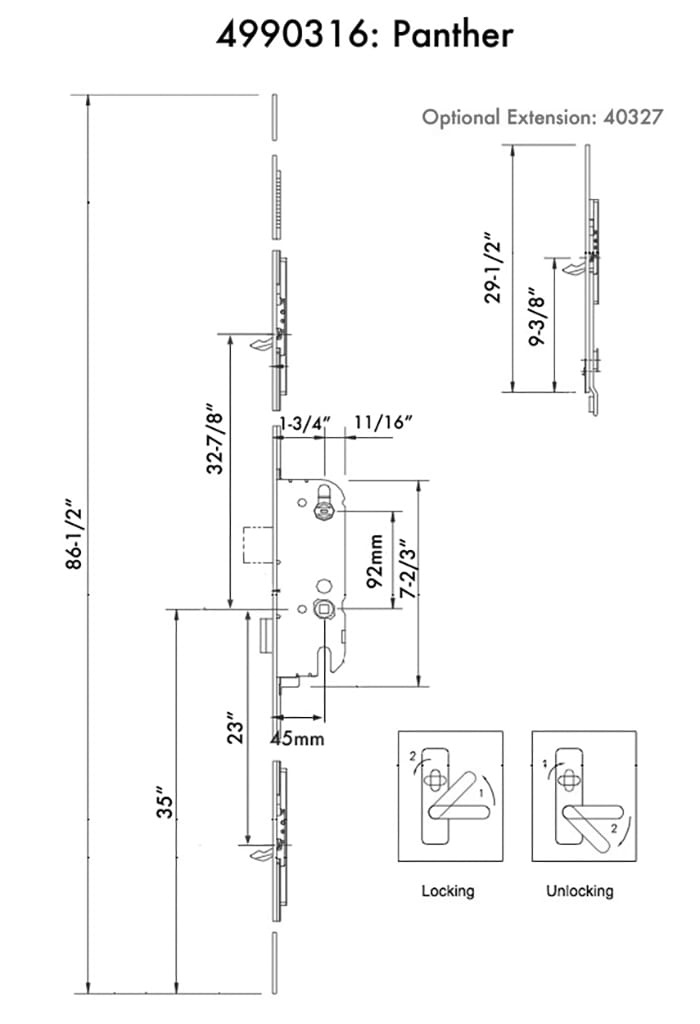

G-U New Breed (key above handle) Panther 3-point tongue version lock
Handle Height: 35 inches
Backset: 45mm
PZ: 92mm
Handle to Top Tongue: 32.9 inches
Handle to Bottom Tongue: 23 inches
Faceplate Width: 16mm
Finish: Stainless Steel
Lock Body Style: Key Above Handle
This lock is croppable and will fit doors from 73 inches to 86-1/2 inches
For doors taller than 86-1/2 inches, you can purchase a top extension, which is 750mm (29-1/2 inches) long and has an additional tongue latch
Additional Information:
How to Re-Hand a G-U/Ferco Multipoint Lock
How to Install G-U/Ferco Multipoint Lock
Replacement - New Breed Wolverine 45/92 Shootbolt version
Contact office for ordering information.
G-U Panther part number 6-29398-11-08 Information
G-U New Breed (key above handle) Panther 3-point tongue version lock
Handle Height: 35 inches
Backset: 45mm
PZ: 92mm
Handle to Top Tongue: 32.9 inches
Handle to Bottom Tongue: 23 inches
Faceplate Width: 16mm
Finish: Stainless Steel
Lock Body Style: Key Above Handle
This lock is croppable and will fit doors from 73 inches to 86-1/2 inches
For doors taller than 86-1/2 inches, you can purchase a top extension, which is 750mm (29-1/2 inches) long and has an additional tongue latch
Additional Information:
How to Re-Hand a G-U/Ferco Multipoint Lock
How to Install G-U/Ferco Multipoint Lock
