Replace with 4990330

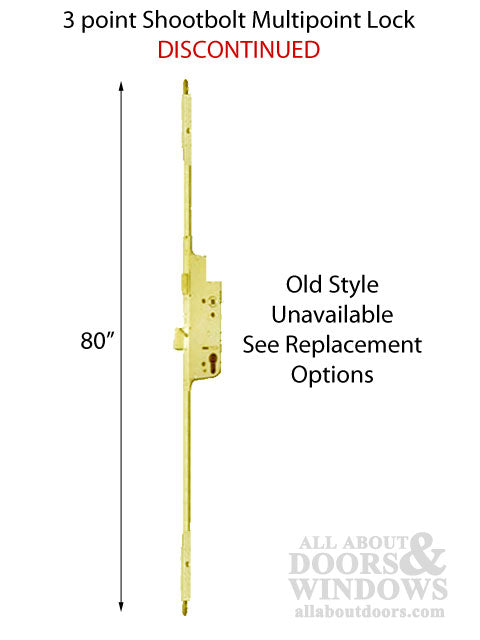

This is a 3 point Multipoint Lock with Shootbolts at the Top and Bottom of the Lock.

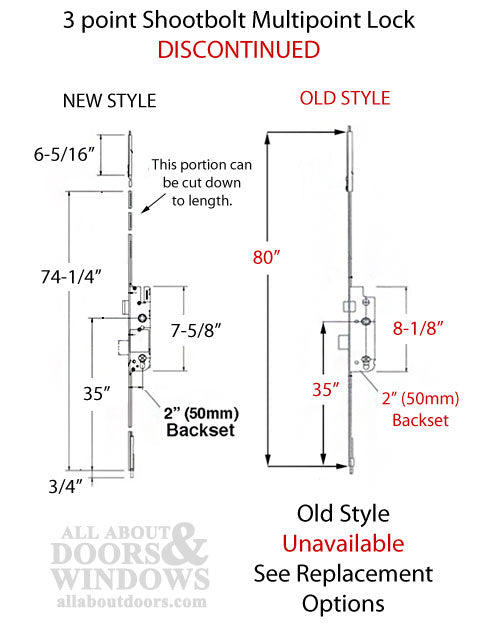

Discontinued Lock Measurements:
Overall Length: 80"
Backset: 50mm (2")
Handle Height: 35"
Handle Spacing (PZ): 92mm (3-5/8")
Handle Spindle: 7mm (1/4")
Faceplate Width: 16mm (5/8")

The easiest replacement for this Discontinued Lock is a 2 piece, 3 point Replacement Lock Kit.
The Replacement Lock Kit is very similar to the Discontinued Lock.
It features two Shootbolts and a Deadbolt and will fit doors up to 81".
For doors taller than 81" there is a Middle Extension (sold separately)

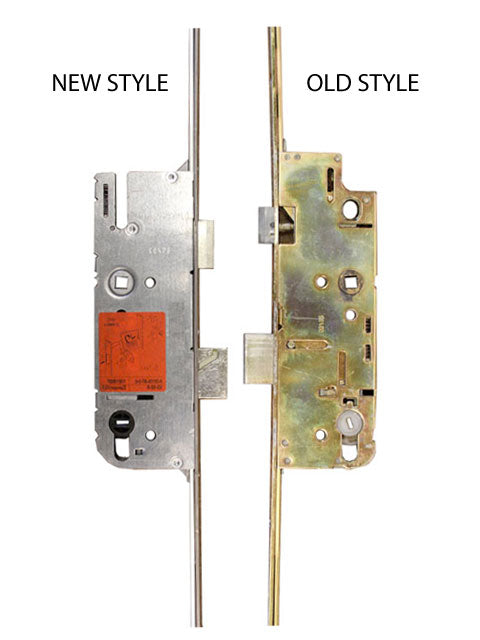

The Replacement Locks Spring Latch and Deadbolt are in slightly different positions.
File Hole in bottom of Deadbolt strike approximately 5/16" and 11/16" in bottom of Spring Latch strike.

The Replacement Kit is available in 3 Colors/Finishes:
Silver Ferguard, Black or Stainless Steel

Replacement Options:
4990330 - 3-point Shootbolt Replacement Kit

Installation article: How to Replace a Multipoint Lock in a Pella Door
Handing Article: How to Change Handing of GU Multipoint Lock (Change Direction of Slope of Spring Latch)
