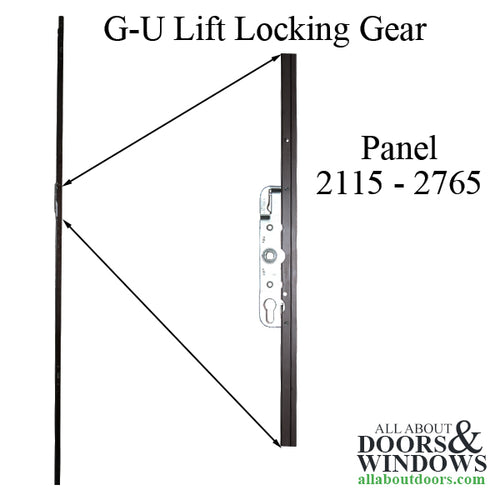

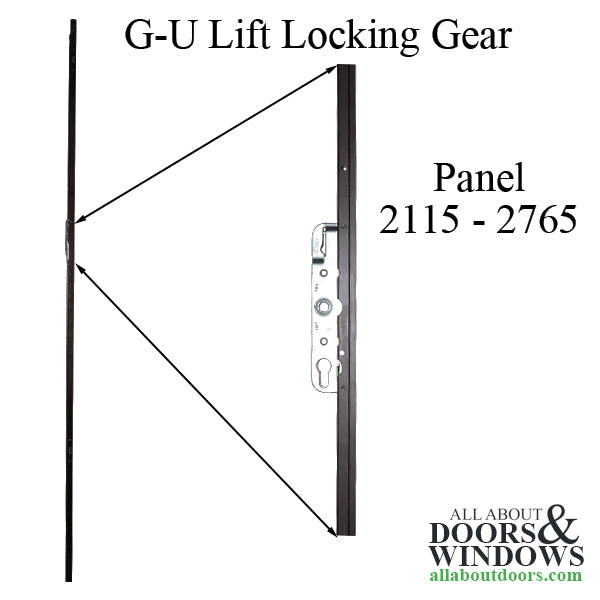

G-U 934/937 H Lift & Slide Hardware, Lift-locking Gear
Lift-locking gear, 37.5mm (1.48") backset
Sash height: 2115 - 2765mm (83.27" - 108.86")
Handle height: 1010mm (39.76")
Finish: 5 / UC5 / Dark Bronze
Sash Thickness 56-68mm (2.2 - 2.7")
Sash Clearance 28mm (1.1")
Related Parts:
6-30021-11-0-*, Sash height = 865 - 1285, handle height 410
6-30021-19-0-*, Sash height = 1235 - 1865, handle height 410
6-30021-24-0-*, Sash height = 1865 - 2365, handle height 1010
6-30021-28-0-*, Sash height = 2115 - 2765, handle height 1010
* = Finish: 1 = EV1 (Silver) or 5 = UC5 (Dark Bronze)
Also available in 27.5mm backset, see Part # 6-30019-xx-0-*
Used with K-16488-00-0-*1 or *18, GU-934 Runners (rollers)
