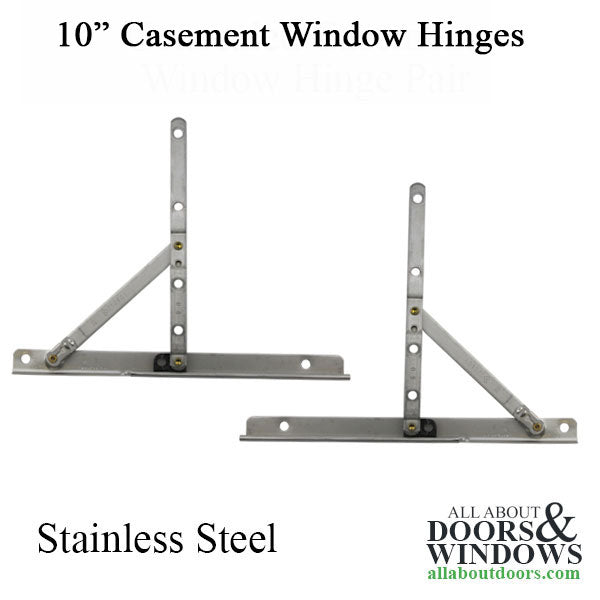

Generic Concealed Casement Window Hinge, 10 inch Track with Hinge
Standard brass snap stud

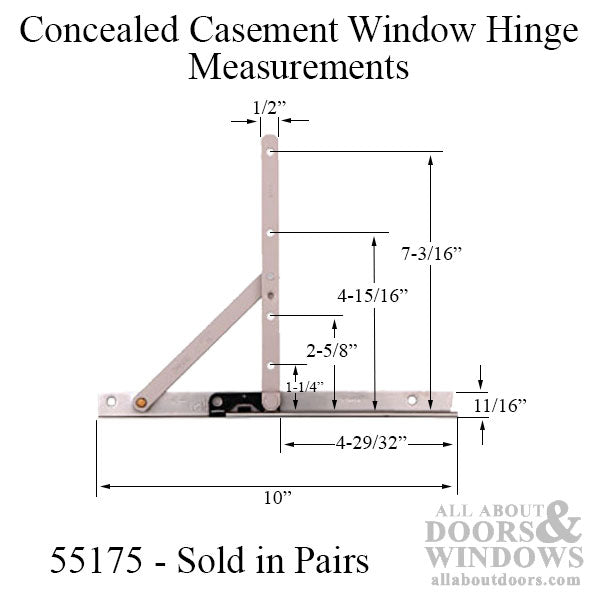

Long link is 7-5/8 inches, shorter detachable link is 5-1/2 inches
Material: Stainless Steel

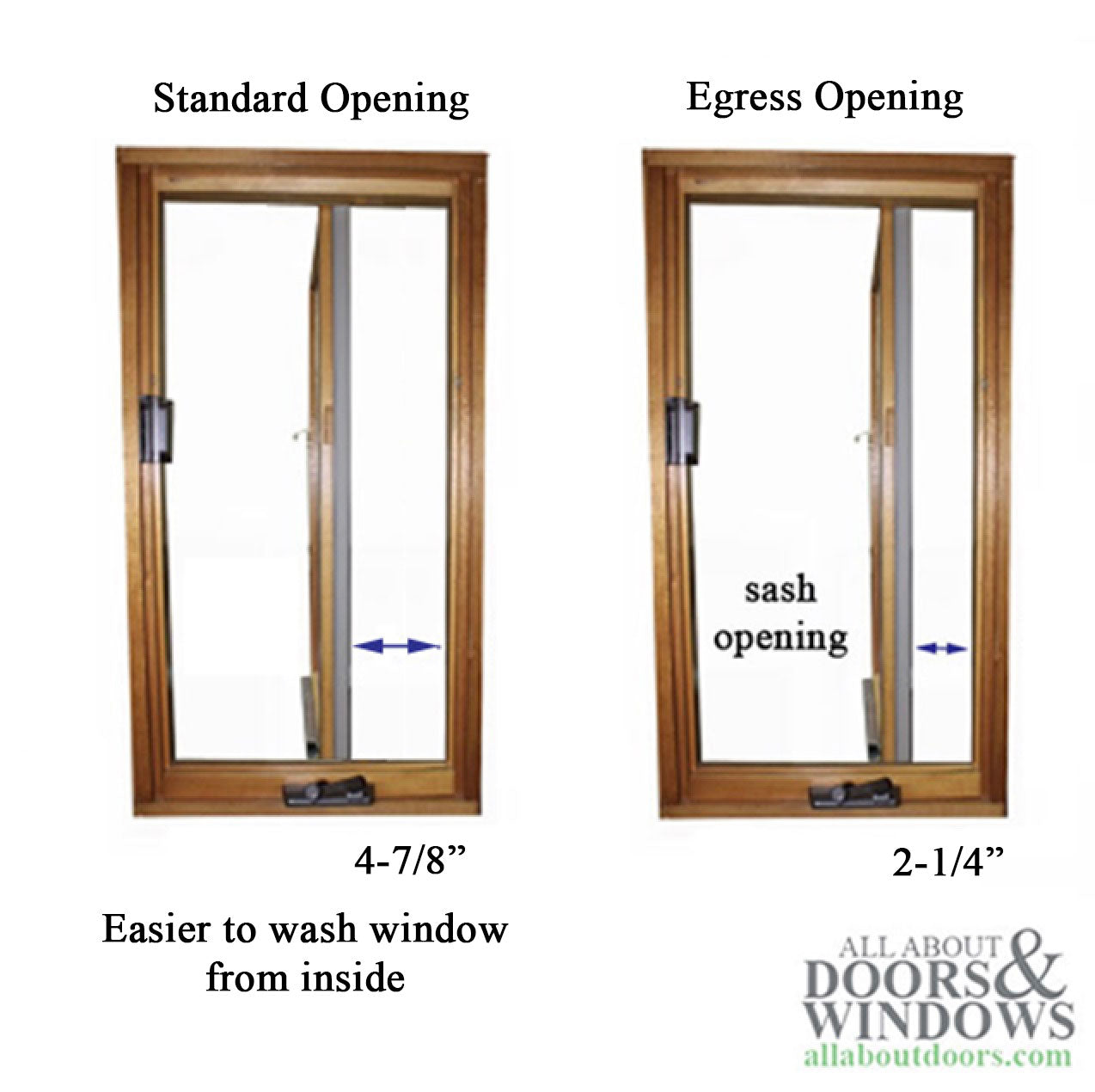

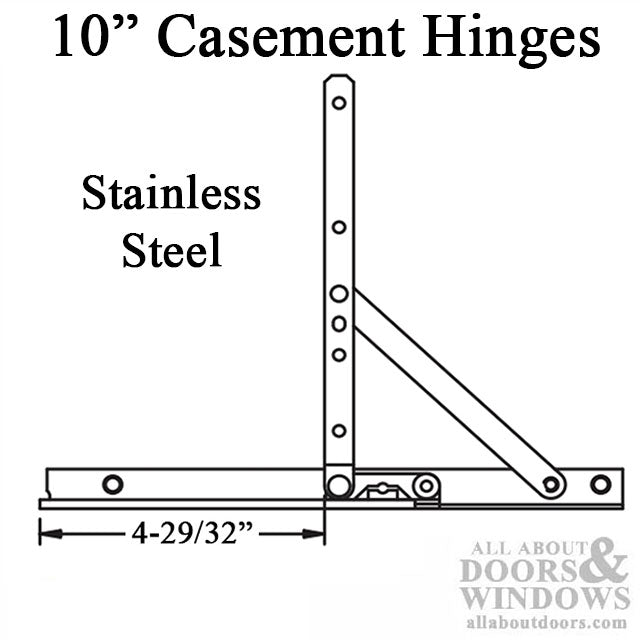

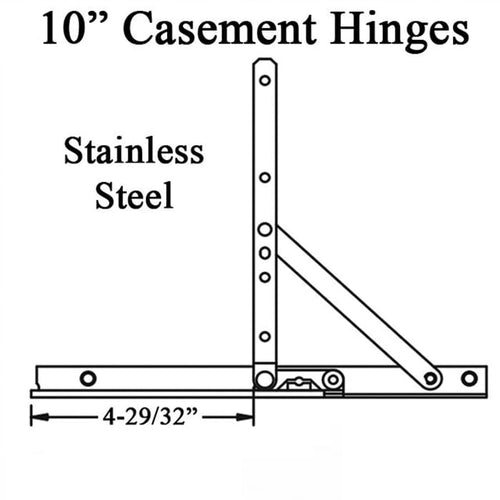

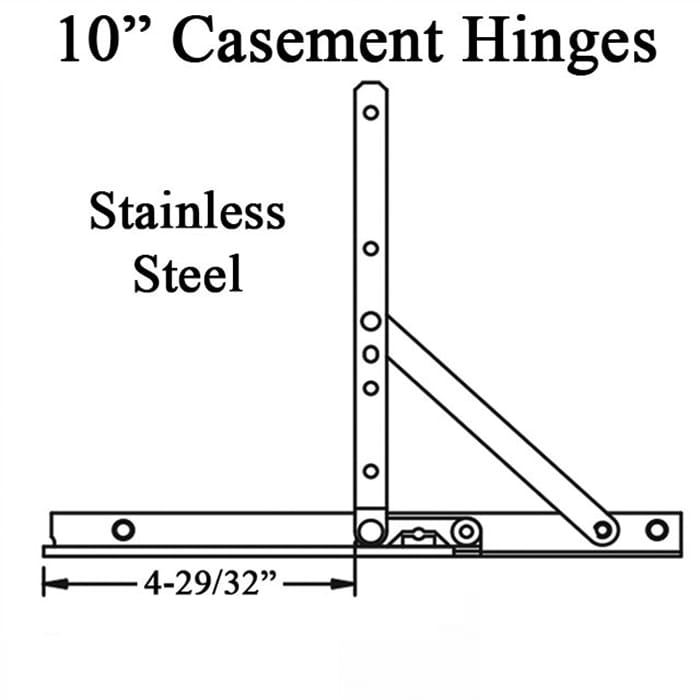

The opening measurement is 4.906 inches ( 4-29/32 )
Sold in pairs, priced in pairs - (Top and bottom)
NOTE: This is a replacement for the Del Mar Toronto Hinge used on vinyl windows also Replaces Truth 14.75 series
The Sash screw holes match, the track screws matches on 1 hole, you will need to relocate other 3 screws
We recommend filling old screw holes and put piece of clear scotch tape over before installing track.
This item is limited to existing inventory.
It can be replaced with 14.75-KIT-EG
