Georgian Storm Door Handle with Deadbolt for Storm Doors
Use the arrows or swipe left to view all images for this product
Discontinued, replace with 302003

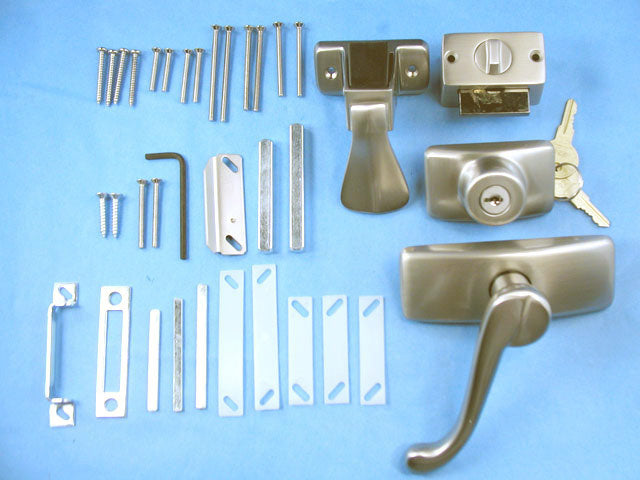

Georgian Storm door Lever Handle with keyed deadbolt, 2 keys.
Replaces Standard hardware - three hole pattern with 1-3/4 inch screw hole spacing
Door Thickness: 3/4, 1, 1-1/4 inch thick door

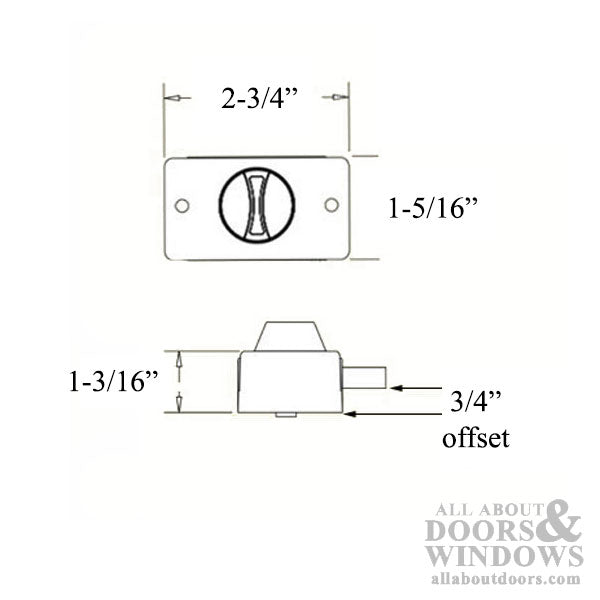

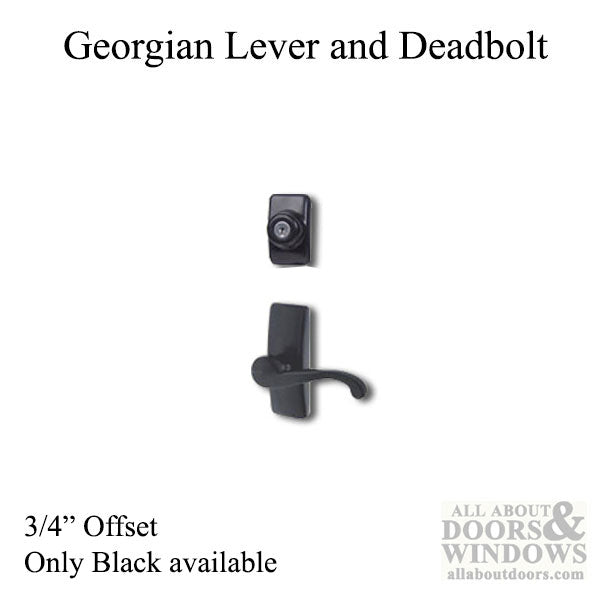

Deadbolt Offset (height of the bolt): 3/4 inch from base
(*Note: Deadbolt offset height varies from handle to handle; they can commonly be 1/4", 1/2" & 3/4")
Screw hole Spacing: 1-3/4 inch; deadbolt and lever handle.
Standard Lock Spacing: 7-1/4 inch from top screw on deadbolt to bottom screw on lever handle - will fit other hole spacing.

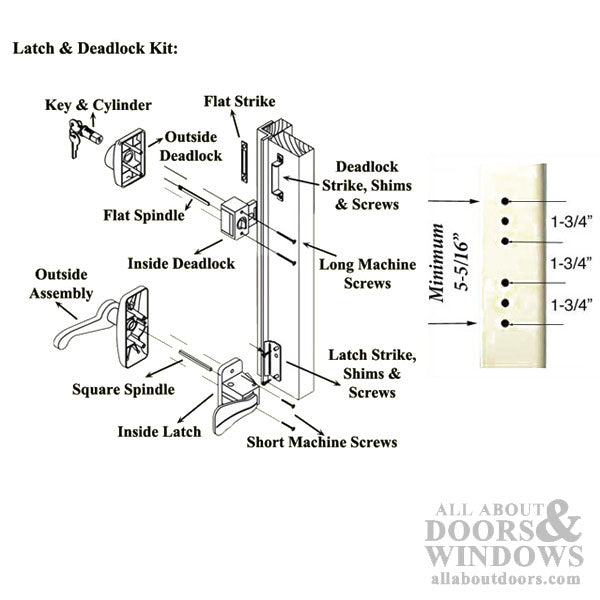

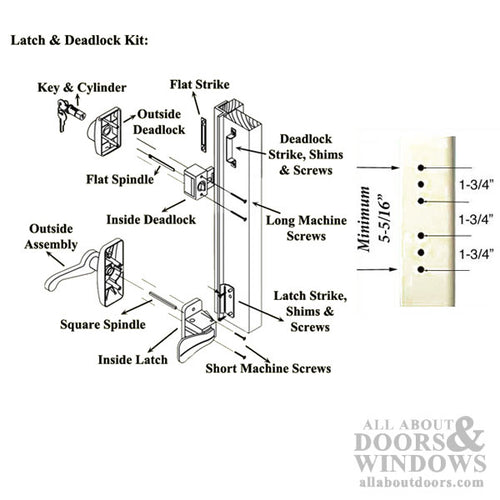

Minimum Spacing 5-1/4 inch from top screw on deadbolt to bottom screw on lever handle ( see additional images)
Material: Zinc base metal, Same finish on inside and out.
Colors / Finish: Brushed/Satin Nickel, Oil Rubbed Bronze, Black
We do not stock the deadbolt with 1/2 inch offset
301053 = 3/4 inch Offset - Fit doors from 3/4 to 1-1/4 inch thick
Guide: How to Install Georgian Deadlock and Latch
