Discontinued - Possible Substitutes : 305023, 305031, 304998

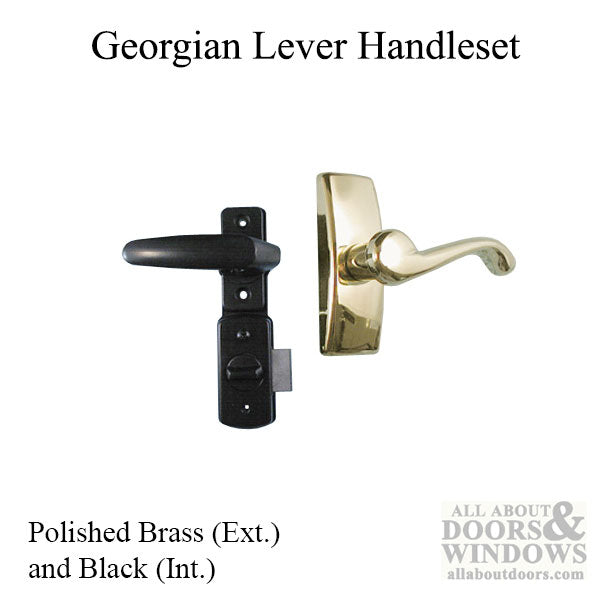

COMBINATION Georgian LEVER WITH Inside DEADBOLT; NO KEY on outside.
Replaces old style Pella storm door handle with slide lock.
Color / Finish: Polished Brass Lever Handle Outside and Black Deadbolt Inside
Door thickness: 3/4 to 1-1/4 inch Door

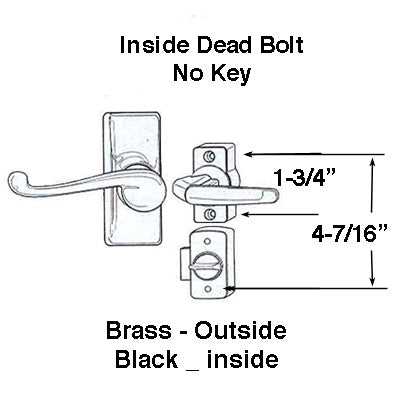

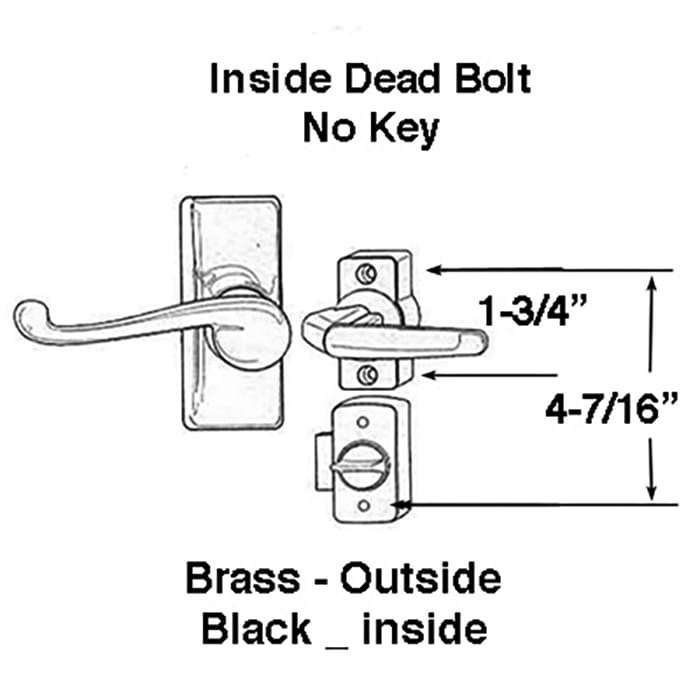

Screw Holes: Standard 1-3/4 screw holes for Lever Handle and Dead bolt
Top to bottom screw holes at 4-7/16 inch
Handing: Reversible for left and right hand doors; Deadbolt can be installed above or below handle.
SPECIAL BORE: This is Designed for standard 3 hole pattern and the bottom sheet metal screw goes into the door from the inside only.

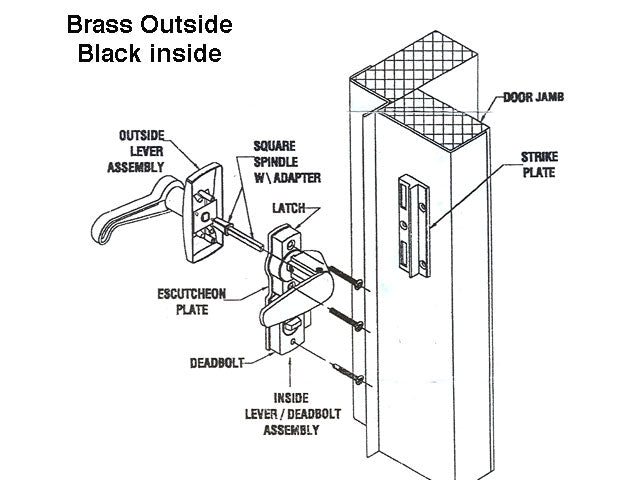

Guide: How to Install Georgian Deadlock and Latch
COMBINATION Georgian LEVER WITH Inside DEADBOLT; NO KEY on outside.
Replaces old style Pella storm door handle with slide lock.
Color / Finish: Polished Brass Lever Handle Outside and Black Deadbolt Inside
Door thickness: 3/4 to 1-1/4 inch Door
Screw Holes: Standard 1-3/4 screw holes for Lever Handle and Dead bolt
Top to bottom screw holes at 4-7/16 inch
Handing: Reversible for left and right hand doors; Deadbolt can be installed above or below handle.
SPECIAL BORE: This is Designed for standard 3 hole pattern and the bottom sheet metal screw goes into the door from the inside only.
Guide: How to Install Georgian Deadlock and Latch
