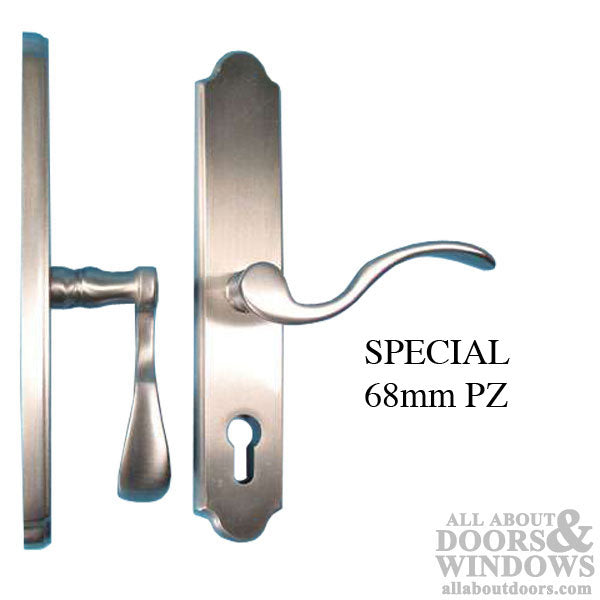

Germania, Lara 68mm Active Handleset 2-1/4 Door, RH - Satin Nickel
Part Number: 40117-SNDiscontinued SPECIAL SIZE: NOT STANDARD - 68MM Handle to Cylinder Spacing.Spring Box
LIMITED to EXISTING Inventory

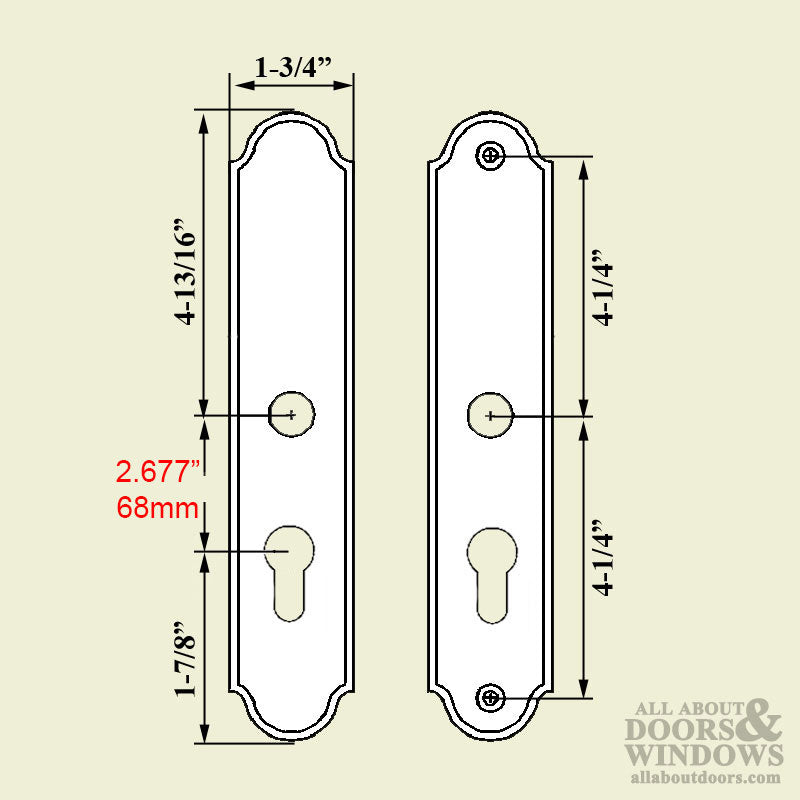

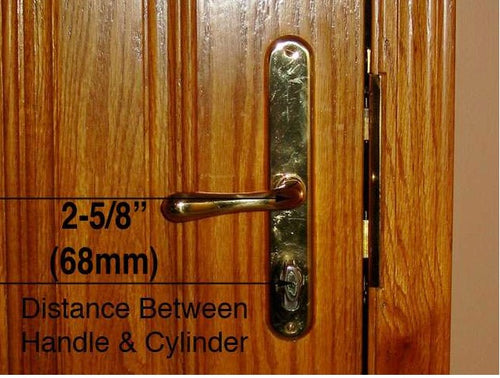

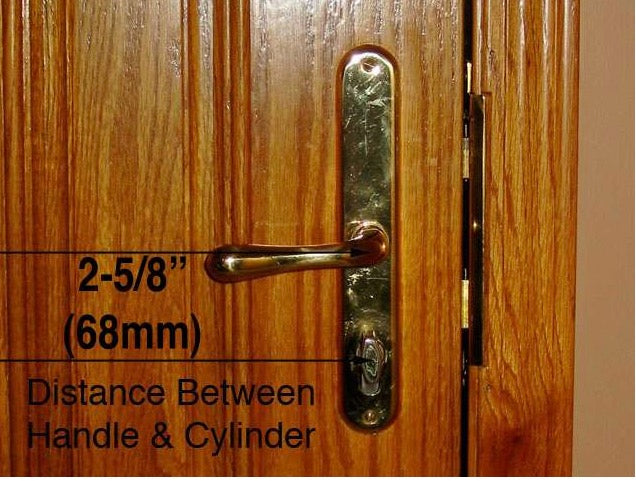

Handle PZ: 2-5/8 inch (68mm) spacing from center of Handle to center of Thumburn (key)
Germania Handle with Lara Back Plate.
Lever Handleset with 2-5/8 inch ( 68mm) holes spacing for Handle to keylock,
Cylinder Type: Euro, standard 90 degree.
Overall Cylinder Length:Depends on Door Thickness
Keyway: Schlage SC-1, 5 pin
Spindle Diameter: 5/16 inch (8mm)

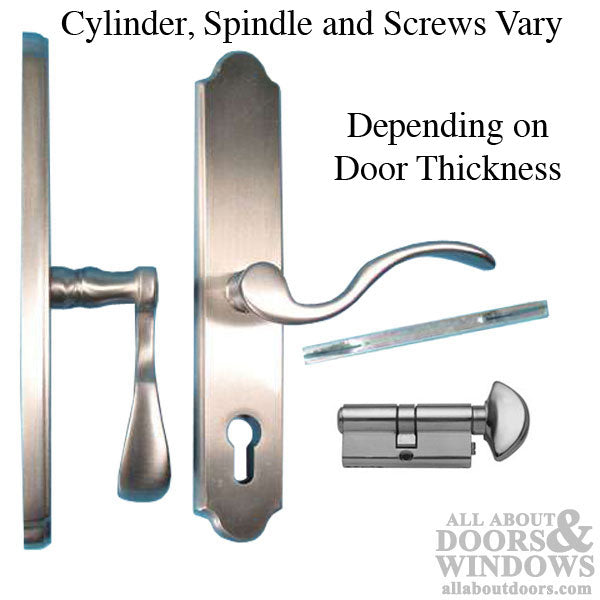

Will fit various door thickness, but may require longer screws and Cylinder
LIMITED to EXISTING Inventory
Handle PZ: 2-5/8 inch (68mm) spacing from center of Handle to center of Thumburn (key)
Germania Handle with Lara Back Plate.
Lever Handleset with 2-5/8 inch ( 68mm) holes spacing for Handle to keylock,
Cylinder Type: Euro, standard 90 degree.
Overall Cylinder Length:Depends on Door Thickness
Keyway: Schlage SC-1, 5 pin
Spindle Diameter: 5/16 inch (8mm)
Will fit various door thickness, but may require longer screws and Cylinder
