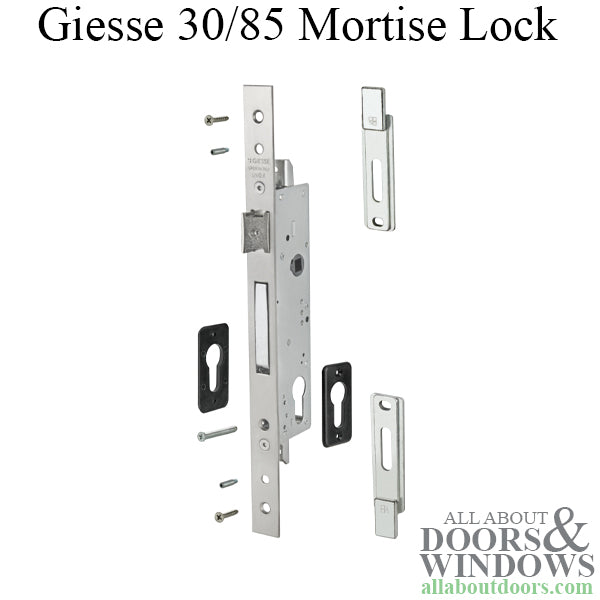

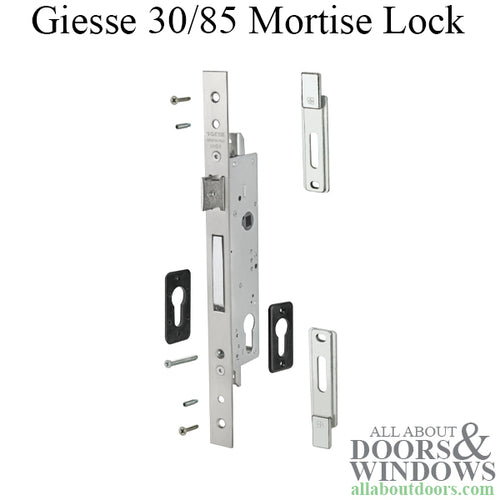

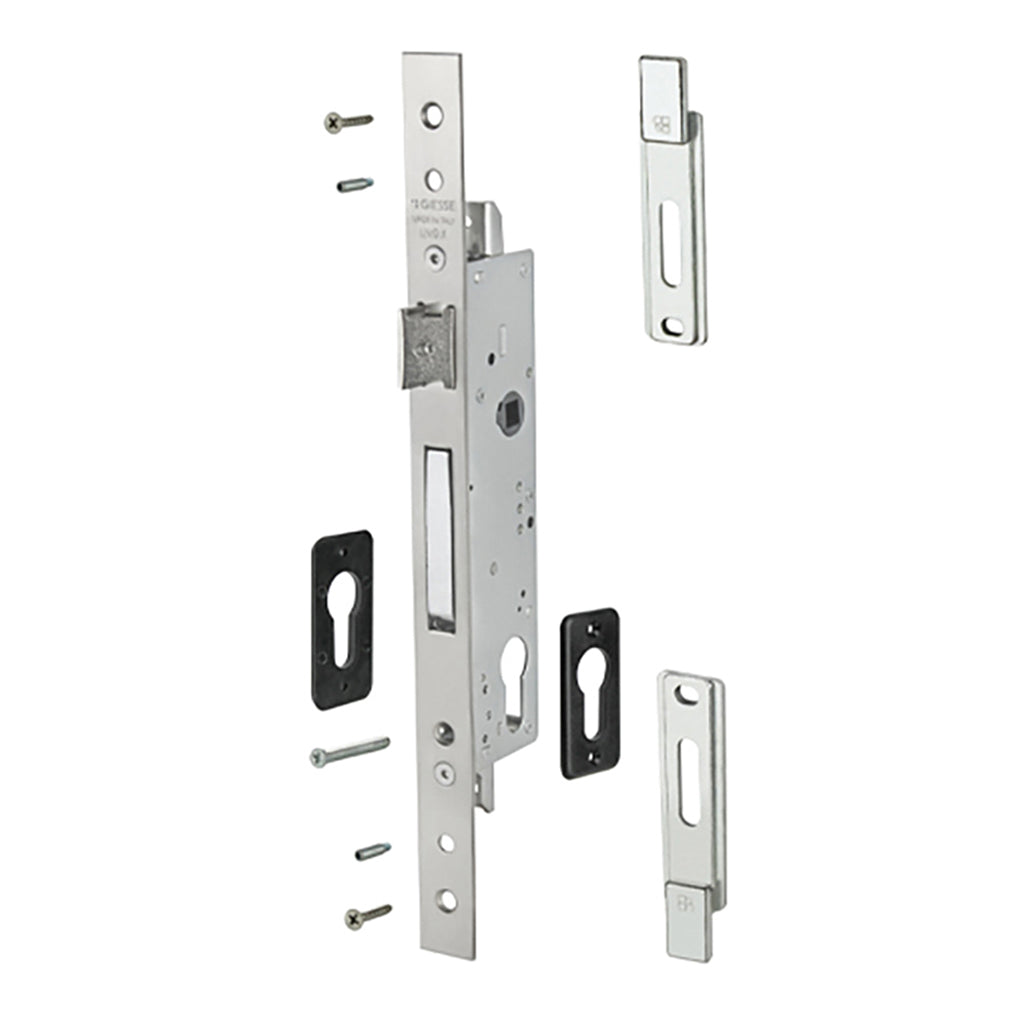

Giesse Terrace and Balcony door mortise lock with 1-3/16 inch backset and a flip down deadbolt. This lock does not have  upper and lower rods, it uses brackets

Application:  Balcony and Terrace door lock

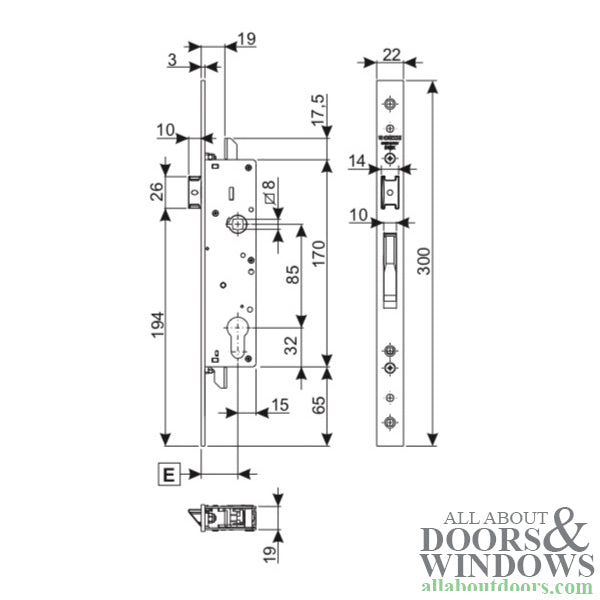

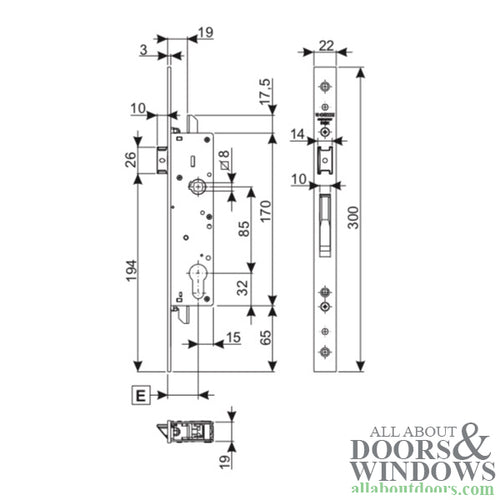

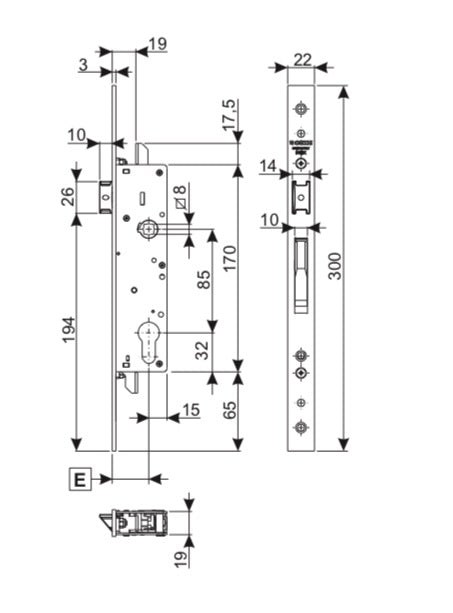

Backset: 1-3/16 inch (30mm) 1.18
Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.346
Faceplate Width: 7/8 inch  (22mm) 0.866
Faceplate Length: 11-13/16 inch (300mm) 11.81
Functions: Central lock, slip-on version for aluminum stiles, with adjustable spring latch and tilting bolt, ready for rod connection for top/bottom fastening mechanism.

Compatible with European cylinders, has a burglar-proof tilting bolt

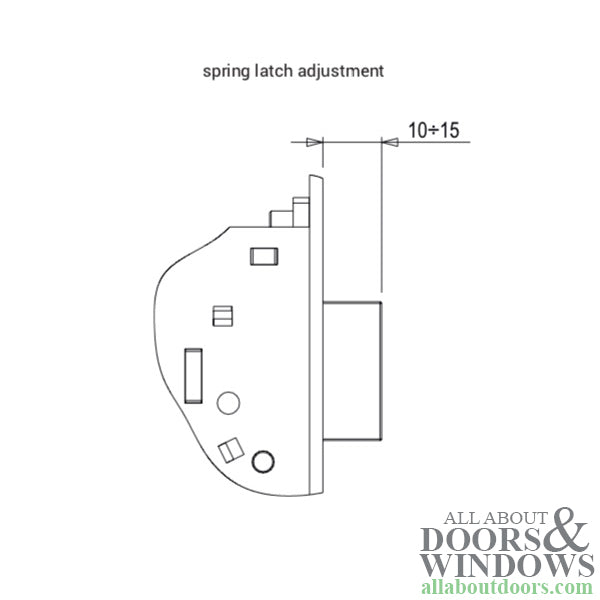

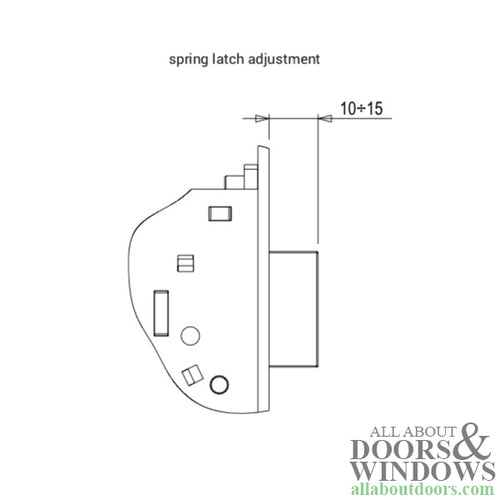

Reversible spring latch (RH or LH), adjustable from 10 to 15 mm.
Bolts operated with the cylinder.
Spring latch operated with the cylinder and with the 8 mm handle spindle.
Cylinder handle C/C distance 85 mm.
Bolt with thickness of 10 mm and minimum protrusion of 24 mm.
Spring latch with 10 to 15 mm protrusion.

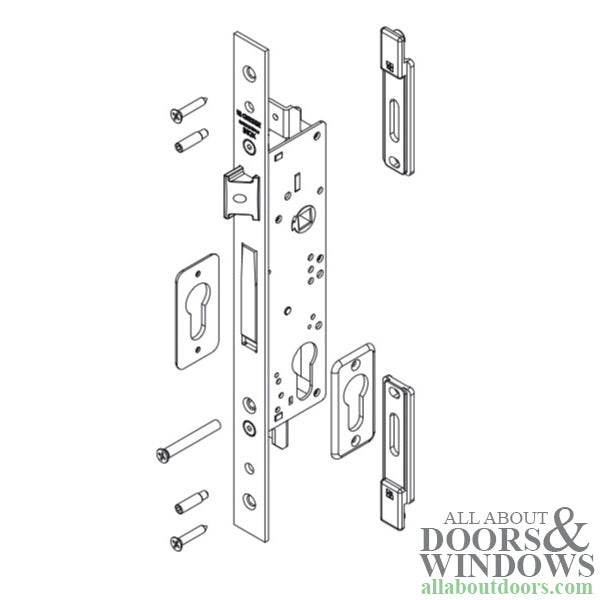

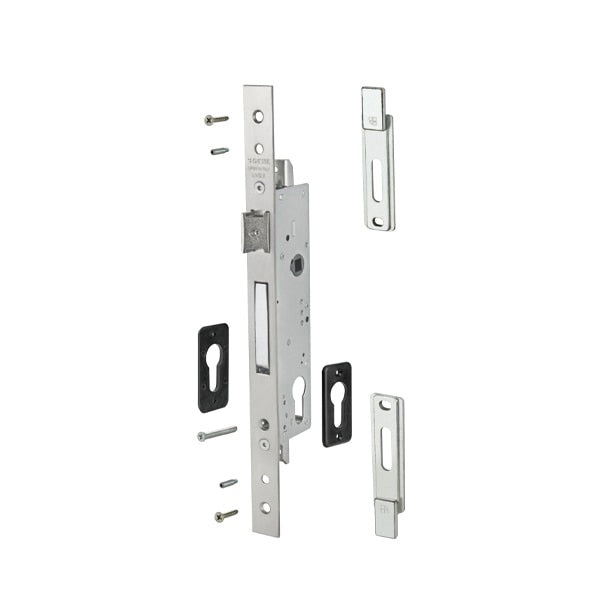

The pair of two-way adapters supplied with the lock, for connecting to the polyamide rod, enables making top bottom locking at several points.
Stroke is 15.5 mm.
The adapters for connecting to the rod have connecting pins size 8 mm.

Materials
Lock cover plate and case plate in zinc plated steel, Flat front in stainless steel
Spring latch and bolts in nickel-plated steel
Rod connection adapters in zamak
Polyamide cylinder machining cover studs
Pins for fixing adapters and screw for fixing cylinder in zinc plated steel
Lock fixing screws in stainless steel
