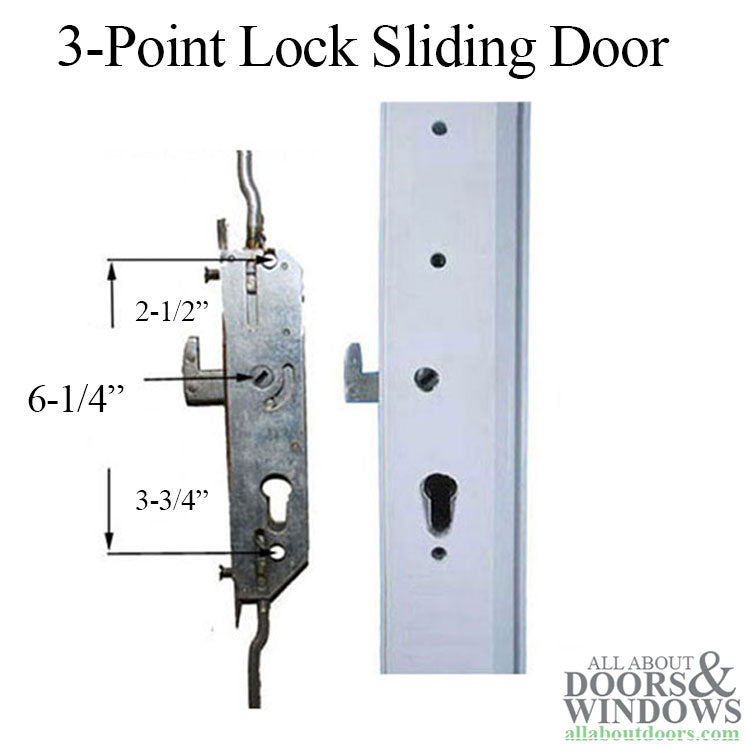

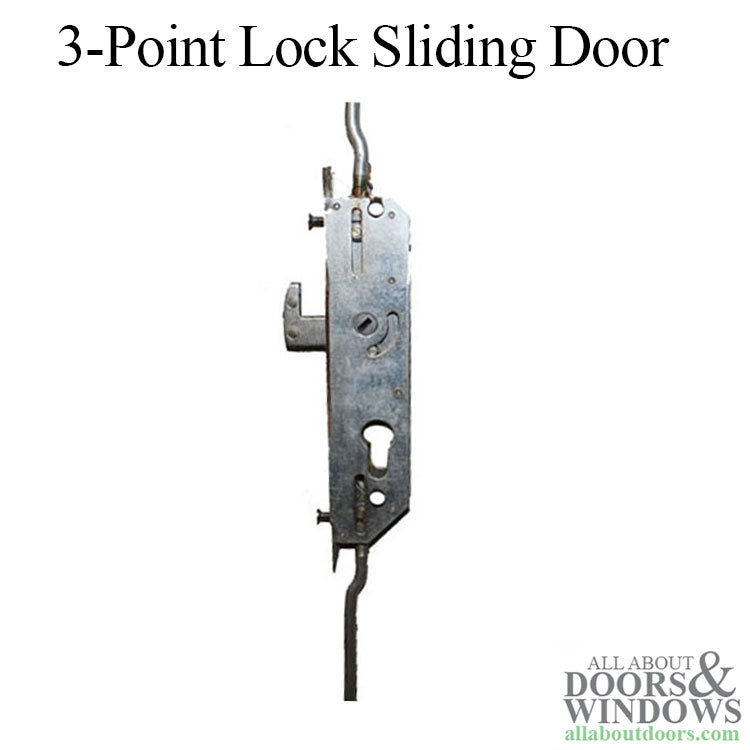

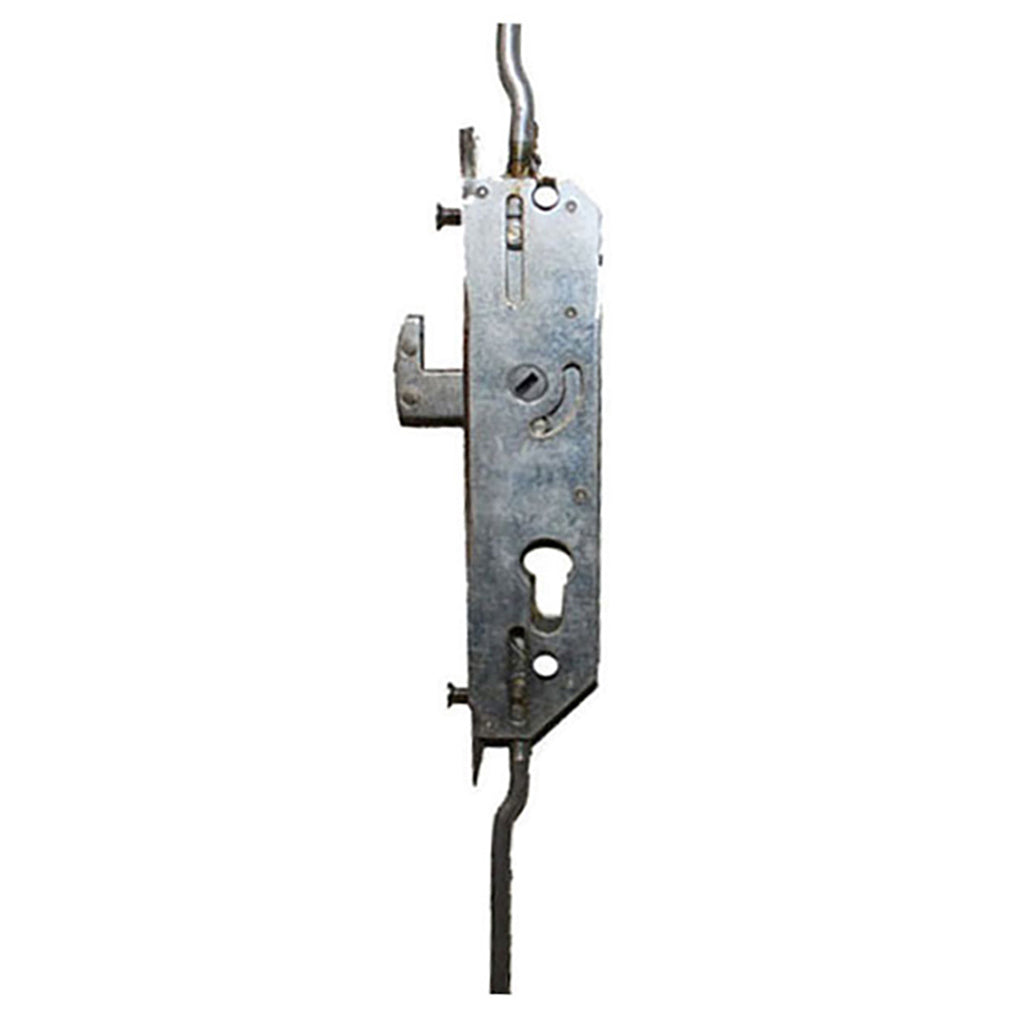

Great Lakes Window Sliding Glass Patio Door with 3-point lock
This sliding door with multi-point lock, one hook at handle and two vertical locking rods has been discontinued.
We have a replacement Option with Minor Modifications
Current Replacement Option - Lock Option with 1/2" Recessed faceplate
15186 lock with 1/2" Recess Faceplate + 1/2" Raised Strike + 1-1/4" wide Olympus Handle + (2) 8 x 1-3/4" Flat head screws + (2) 1-3/4 Pan Head screws
Contact Office for installation details
Additional Information GLW Vinyl Sliding Door with 3-point lock

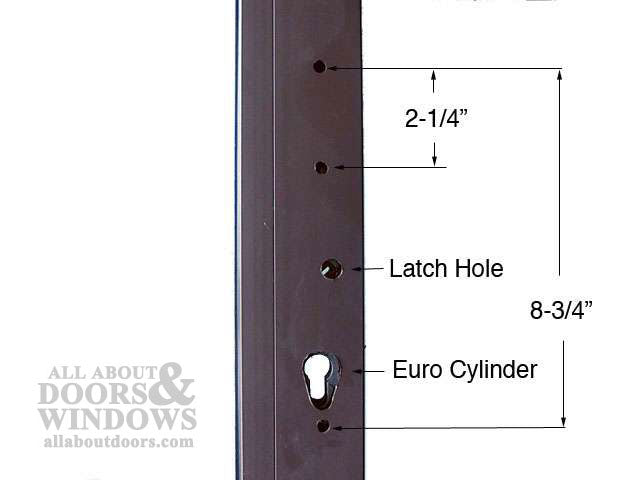

* Original door was 2 inches thick and had a 70mm Italian Euro / Profile cylinder.

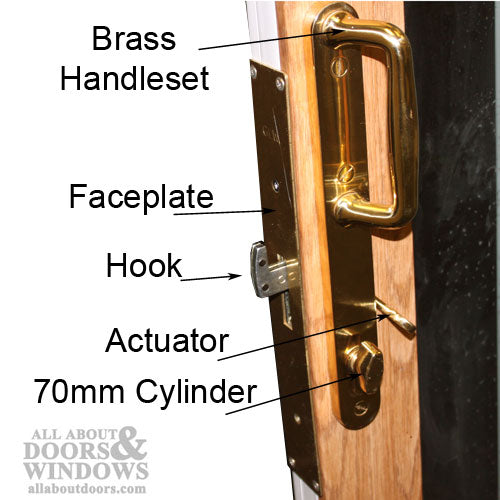

* Came with 3 different handles and the bore was different on all three.
* The solid brass handles were used with Keyed cylinder; Plated brass handles were available with or without keyed cylinder.

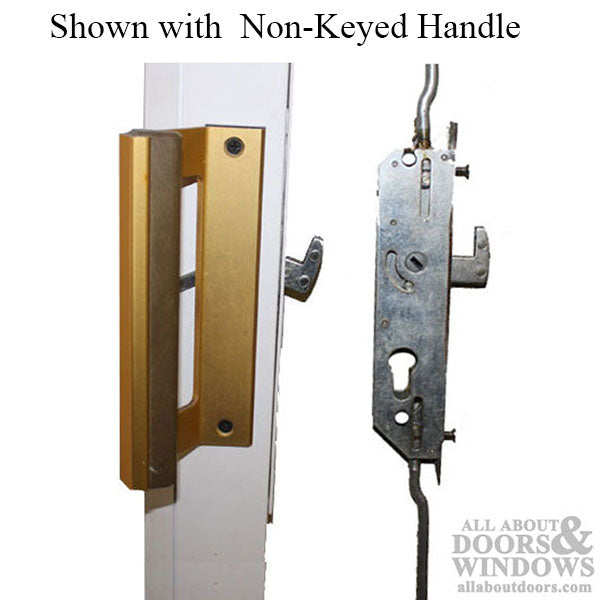

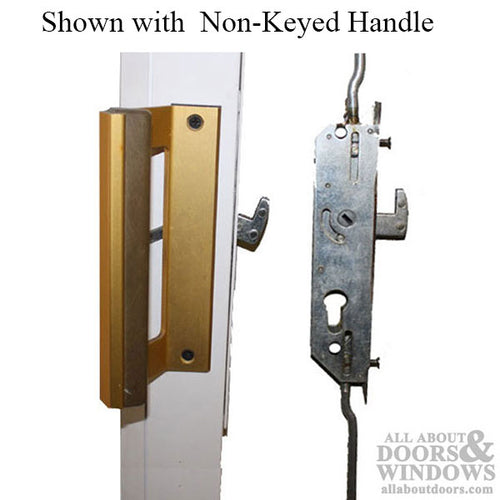

* Painted gold and wood handles were not available with key.
* Aluminum Lock Cover plate 1-3/4 x 11-3/4 inches 4 mounting holes
* Lock case backset; 1 inch (25.4mm)
* 34-1/2" Lower 1/4" Rod
* 47-3/4" Upper 1/4" Rod
<p class="p1"><font size="3">Great Lakes Window Sliding Glass Patio Door with 3-point lock</font></p>
<p class="p1"><font size="3">This Sliding Door with Multi-Point Lock, one hook at handle and two vertical locking rods. <span class="Apple-converted-space"> </span></font></p>
<p class="p2"><font size="3"><br></font></p>
<p class="p1"><font size="3">Application: Vinyl Sliding Door<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Lock case backset; 1 inch (25.4mm)<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Contents: Lock Case Only, No Rods<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Priced and sold each</font></p>
<p class="p2"><font size="3"><br></font></p>
<p class="p1"><font size="3">Original door was 2 inches thick and had a 70mm<span class="Apple-converted-space"> </span>Italian Euro / Profile cylinder.<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Came with 3 different handles and the bore was different on all three. <span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">The solid brass handles were used with Keyed cylinder; Plated brass handles were available with or without keyed cylinder.<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Painted gold and wood handles were not available with key.</font></p>
<p class="p2"><font size="3"><br></font></p>
<p class="p1"><font size="3">Everything is Old Stock from 90's , Some may be used and have minor rust on spring. <span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Discontinued and Limited to Existing Inventory</font></p>
