Multipoint Lock Worksheet

Need Assistance With A Multipoint Lock? Click Here!
Replace with Multipoint Lock Kit - Fill out worksheet and Contact Office

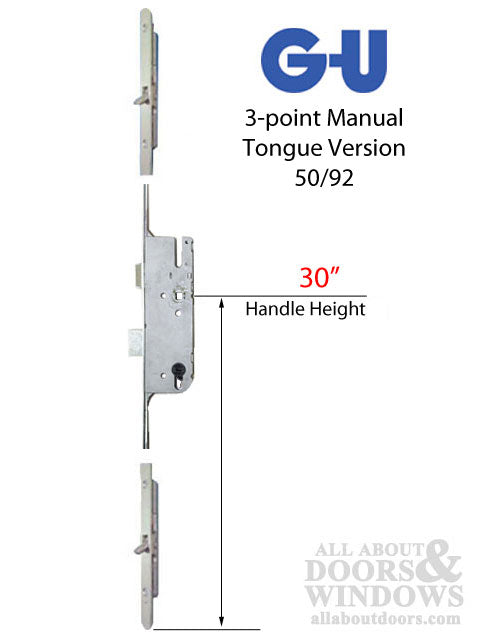

Old Style 3-point GU Tongue Latch Multipoint Lock
Used on KML / Andersen Doors.

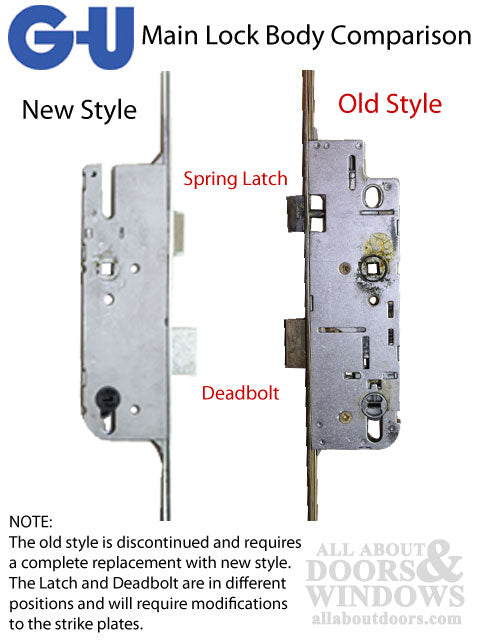

This Multipoint lock has been discontinued - it is replaced with a 3-point Tongue Latch Multi-point Lock Kit.
Key Below handle, Tongue Version Multi-point lock

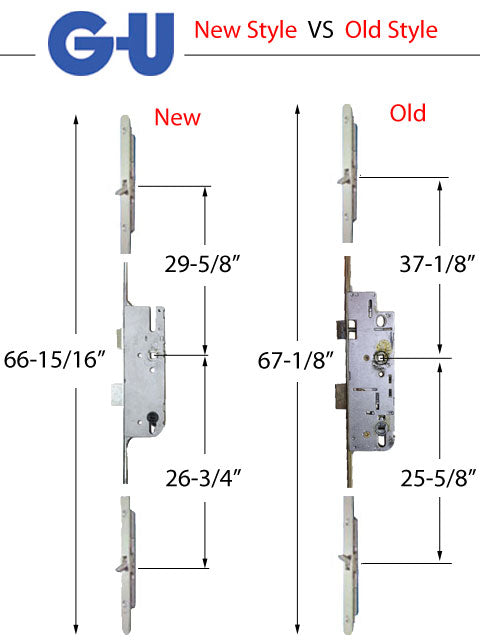

These Measurements are for the Discontinued lock:
Overall Length: 67-1/8 inch, with radius ends.
Handle Height: 30 inches, from bottom of radius faceplate.
Handle to top of face plate: 37-1/8 inch
Bottom Tongue: 25-5/8 inches
Top Tongue: 31-1/2 inches.
Backset: 2 inches (50mm)
Handle PZ Spacing: 3-5/8 ( 92mm) center of cylinder to center of handle
Key Cylinder Hole: Flat Tail piece, standard 5 pin American
Uses standard American version 5 pin cylinder with Flat Tail Piece.
Top of Spring latch to bottom of Deadbolt is 4-1/2 inches.

Replace with Multipoint Lock - Several Options
Call Office for details
Modification may be required.
Please see Article for Comparison and Installation details. (PENDING)

Article:
How to Change Handing of GU Multipoint Lock (Change Direction of Slope of Spring Latch)
