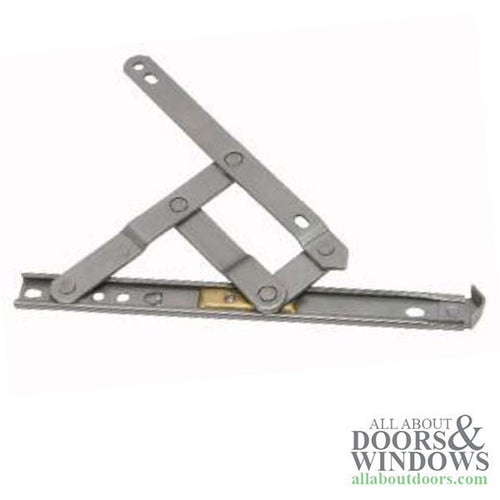

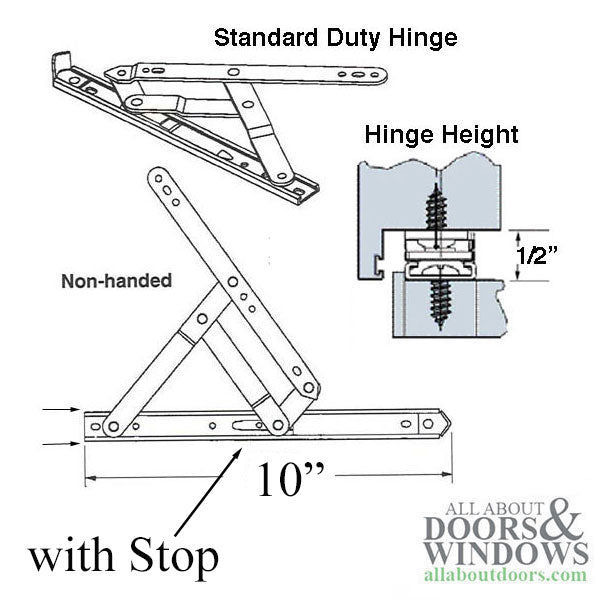

Anderberg 201 Series, Amesbury Truth 34.11.00.101 non-handed awning and casement 4 bar hinge
Application: Residential Awning and Casement windows
Hinge Type: Standard Duty 4 Bar
Call Size: 10 inch
Actual Track Width: 23/32 inch (18.16mm) 0.715
Actual Track Length: 10.22 inches (258.6mm)
Hinge Pocket Height: 1/2 inch (12.7mm) 0.500
Stop: YES
Max Sash Width: 32 inches
Max Weight: 65 pounds Casement & 23 pounds Awning
Degree of Opening: 55 Casement & Awning
Shoe: Brass, Adjustable
Adjustable Friction: Yes
Material: Stainless Steel

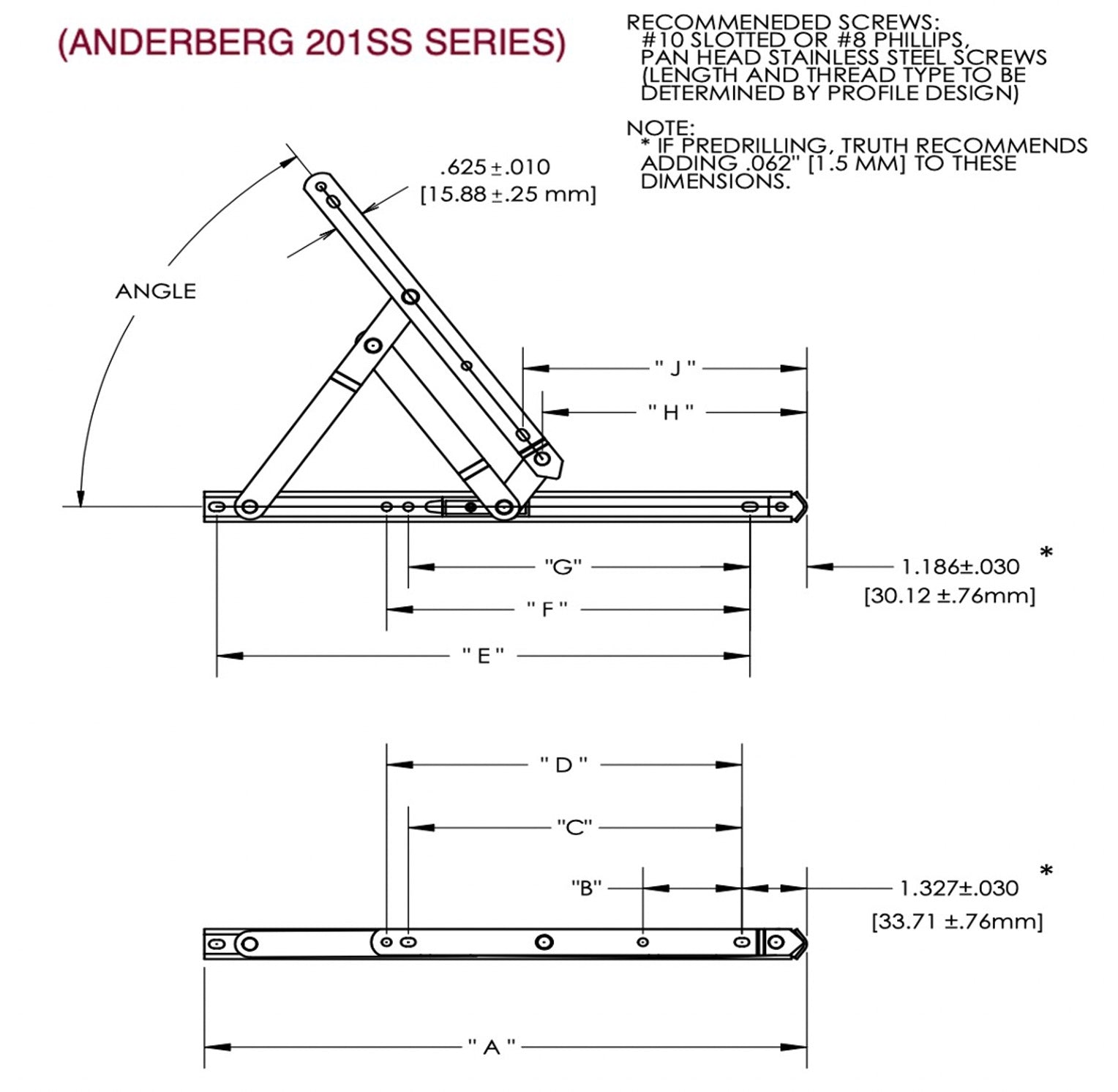

Measurements shown on Line drawing with Stop
B- 2.00
C- 5.75
D- 6.19
E- 8.78
F- 6.47
G- 6.03
H- 4.50
J - 4.99
Degree of Opening: 55°
Product Highlights
A wide range of lengths and thickness
4-bar hinges are certified to AAMA 904.1
4-bar hinges have been designed to be used primarily on vents with a lip on the outside edge
4-bar hinges are adaptable to both casement and projected window applications
Standard 4-bar hinges are for lighter windows no heavier than 40 pounds
Heavy duty 4-bar hinges are for commercial windows up to 200 pounds
201/301 Series hinges are manufactured with a black acetal plastic or brass shoe
Available in both steel or stainless steel
Note:
The 34.11.00.102.1 is a direct replacement for Truth # 34.18.00.100 Zinc plated steel hinge with yellow dichromate dip for protection against corrosion which has been discontinued.
Application: Residential Awning and Casement windows
Hinge Type: Standard Duty 4 Bar
Call Size: 10 inch
Actual Track Width: 23/32 inch (18.16mm) 0.715
Actual Track Length: 10.22 inches (258.6mm)
Hinge Pocket Height: 1/2 inch (12.7mm) 0.500
Stop: YES
Max Sash Width: 32 inches
Max Weight: 65 pounds Casement & 23 pounds Awning
Degree of Opening: 55 Casement & Awning
Shoe: Brass, Adjustable
Adjustable Friction: Yes
Material: Stainless Steel
Measurements shown on Line drawing with Stop
B- 2.00
C- 5.75
D- 6.19
E- 8.78
F- 6.47
G- 6.03
H- 4.50
J - 4.99
Degree of Opening: 55°
Product Highlights
A wide range of lengths and thickness
4-bar hinges are certified to AAMA 904.1
4-bar hinges have been designed to be used primarily on vents with a lip on the outside edge
4-bar hinges are adaptable to both casement and projected window applications
Standard 4-bar hinges are for lighter windows no heavier than 40 pounds
Heavy duty 4-bar hinges are for commercial windows up to 200 pounds
201/301 Series hinges are manufactured with a black acetal plastic or brass shoe
Available in both steel or stainless steel
Note:
The 34.11.00.102.1 is a direct replacement for Truth # 34.18.00.100 Zinc plated steel hinge with yellow dichromate dip for protection against corrosion which has been discontinued.
