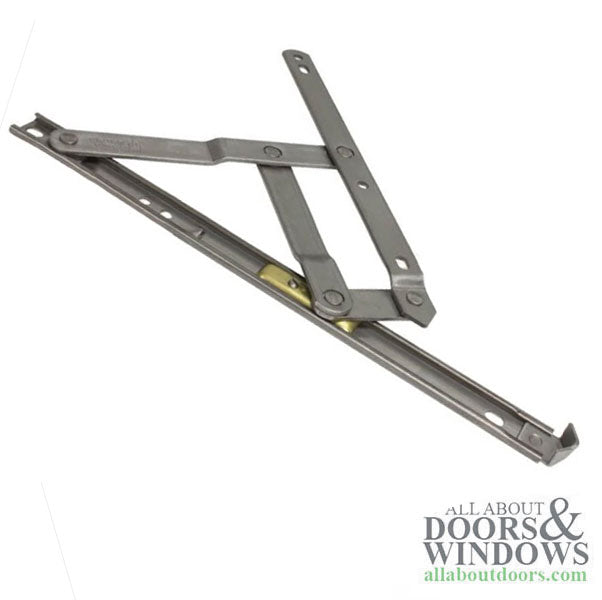

Anderberg 201 Series, Amesbury Truth 34.10.00.100 non-handed awning and casement 4 bar hinge

Application: Awning window
Hinge Type: 4 Bar
Stop: YES
Call Size: 12 inch
Actual Track Length: 12.22 inches
Track Width: 11/16 inch (23/32)
Hinge Pocket Height: 1/2 inch
Max Sash Width: 34 inches
Max Weight: 65 pounds Casement, 28 pounds Awning
Shoe: Brass, Adjustable
Adjustable Friction: Yes
Material: Stainless Steel
Sold Each, No Screws - Should Replace in Pairs

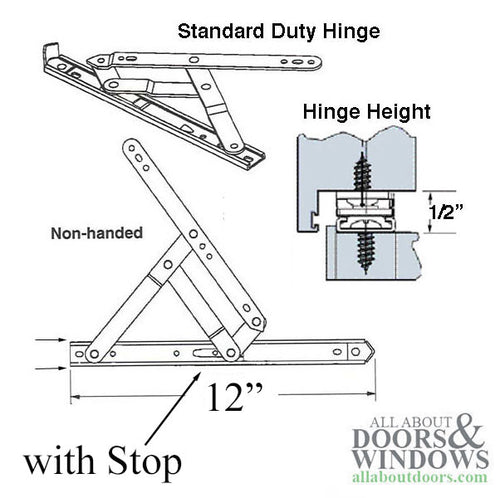

Measurements shown on Line drawing
A- 12.22 inches
B- 2.00
C- 6.75
D- 7.19
E- 10.78
F- 7.34
G- 6.91
H- 5.35
J- 5.75
Degree of Opening: 55°

Product Highlights
A wide range of lengths and thickness
4-bar hinges are certified to AAMA 904.1
4-bar hinges have been designed to be used primarily on vents with a lip on the outside edge
4-bar hinges are adaptable to both casement and projected window applications
Standard 4-bar hinges are for lighter windows no heavier than 40 pounds
Heavy duty 4-bar hinges are for commercial windows up to 200 pounds
201/301 Series hinges are manufactured with a black acetal plastic or brass Adjustable shoe
Available in both steel or stainless steel
