HLS7 16mm Active Tongue-Shootbolt Gear, 45/92, Tongue at 24.41", LH
Part Number: 2666480 Price: $257.95Hoppe HLS Series 7 (one motion retracts deadbolt with turn of handle)
Active Bottom Gear for Tongue with Shootbolt
Handing: Left Hand

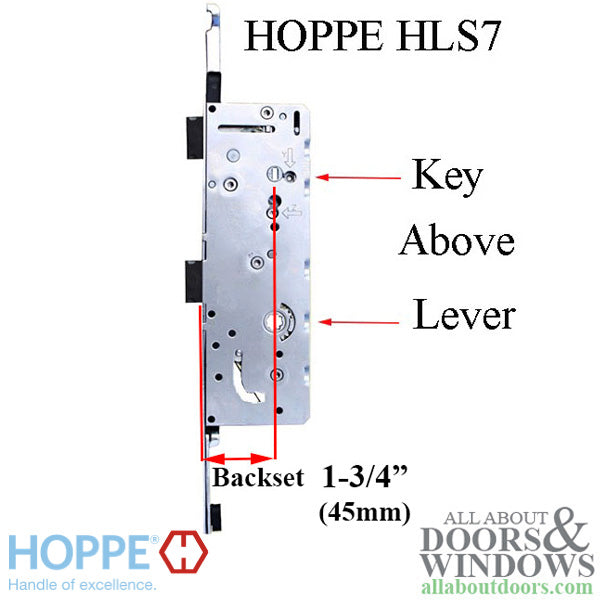

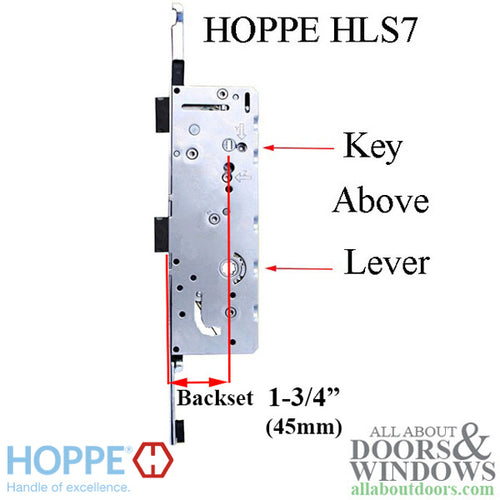

Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height(HH): 36 inches (914mm)

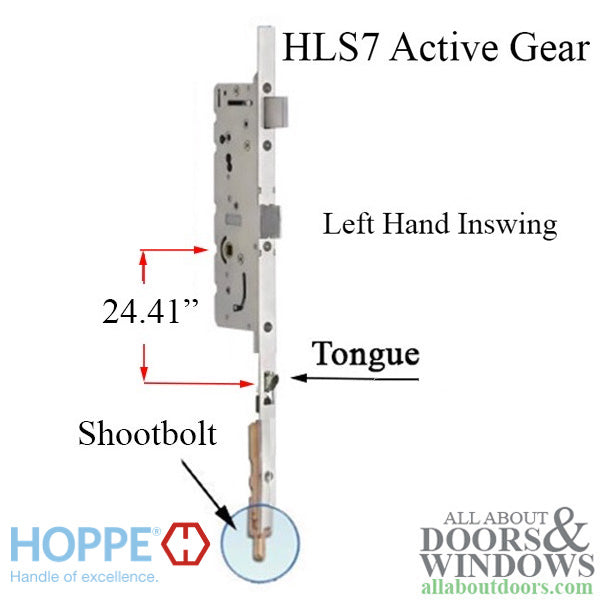

Bottom Tongue Position: 24.41 (620mm)
Maximum Cutoff: - Not Available
Number of Screws: 5
NOTE:
This is the bottom 1/2 of MP Lock system - Top extension is determined by door height and Tongue Position
Active Bottom Gear for Tongue with Shootbolt
Handing: Left Hand
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height(HH): 36 inches (914mm)
Bottom Tongue Position: 24.41 (620mm)
Maximum Cutoff: - Not Available
Number of Screws: 5
NOTE:
This is the bottom 1/2 of MP Lock system - Top extension is determined by door height and Tongue Position
