HOPPE 71 - 85-1/2 inch Tongue Multipoint Lock, 45mm backset Discontinued - See Replacement Options
Part Number: 499021599 Price: $0.00Replace with 4990219

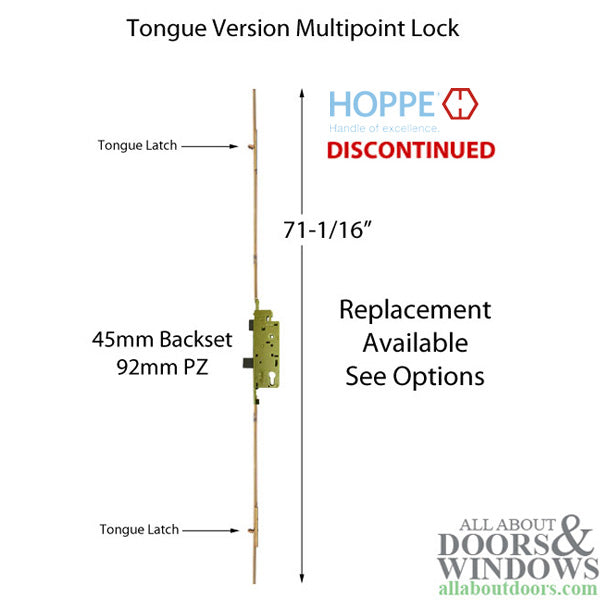

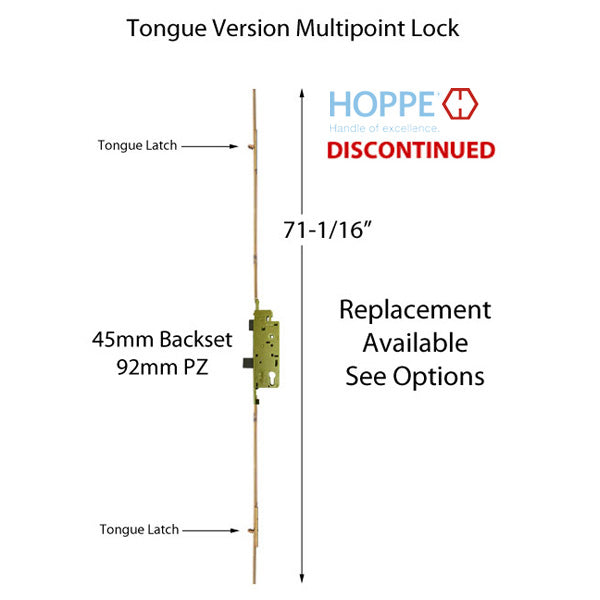

This is a 2 piece Tongue Version Multipoint Lock made by HOPPE.
It features 2 Tongue Latch locking devices.
One is located 29-1/2" above the center of the Handle Cylinder
The other is located 26" below the center of the Handle Cylinder
This lock has been Discontinued and is no longer available for purchase.
It must be replaced.

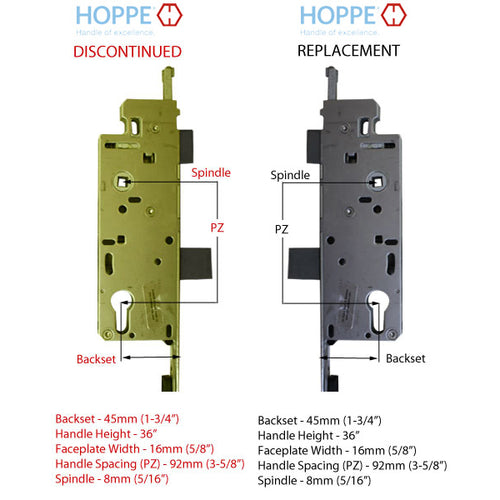

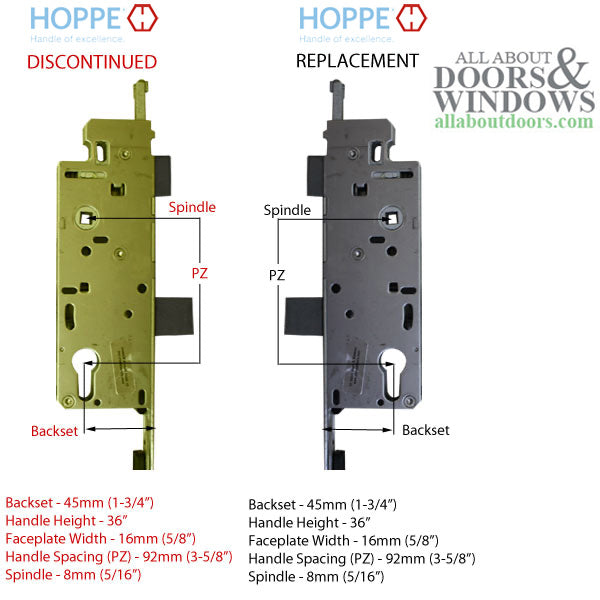

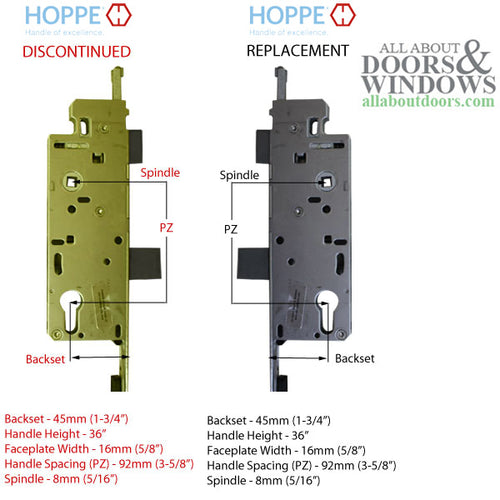

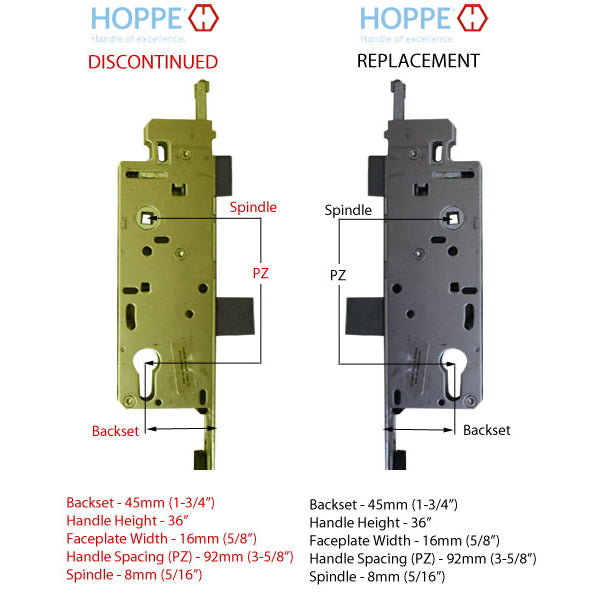

Discontinued Lock Measurements:
Overall Length: 71-1/16" to 85-1/2"
Faceplate Width: 16mm (5/8")
Backset: 45mm (1-3/4")
Handle Height: 36"
Handle Spacing (PZ): 92mm (3-5/8")
Top Tongue Position: 29-1/2" above center of Handle Cylinder
Bottom Tongue Position: 26" below center of Handle Cylinder
We have developed a Tongue Version Replacement Kit for the above mentioned discontinued lock. (See Replacement Options)
Please check your measurements carefully to confirm you have the correct lock.
Replacement Options:
4990219 - Tongue Version Replacement Kit.
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
