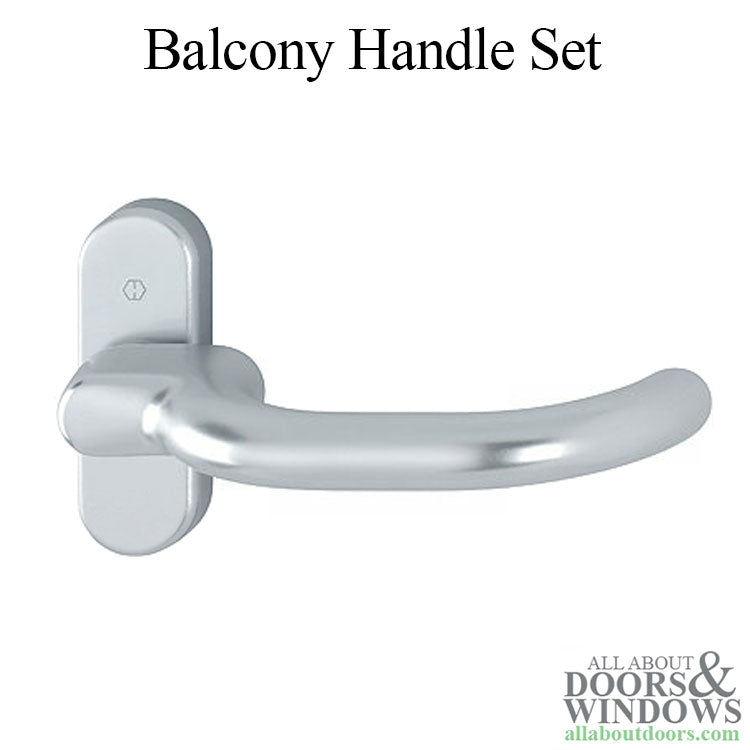

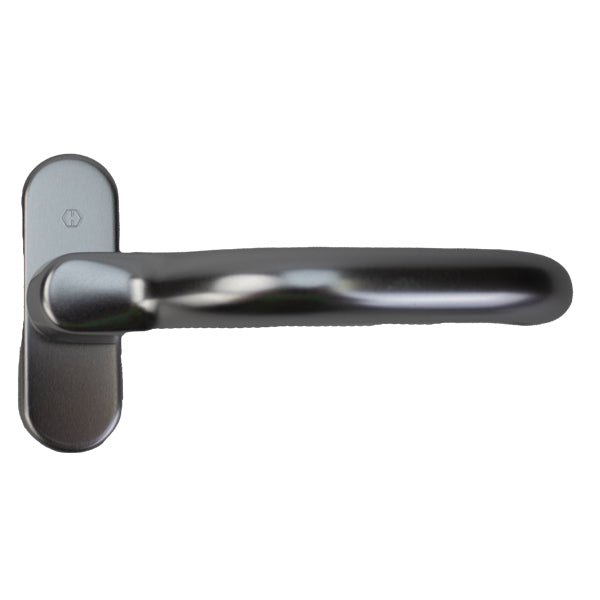

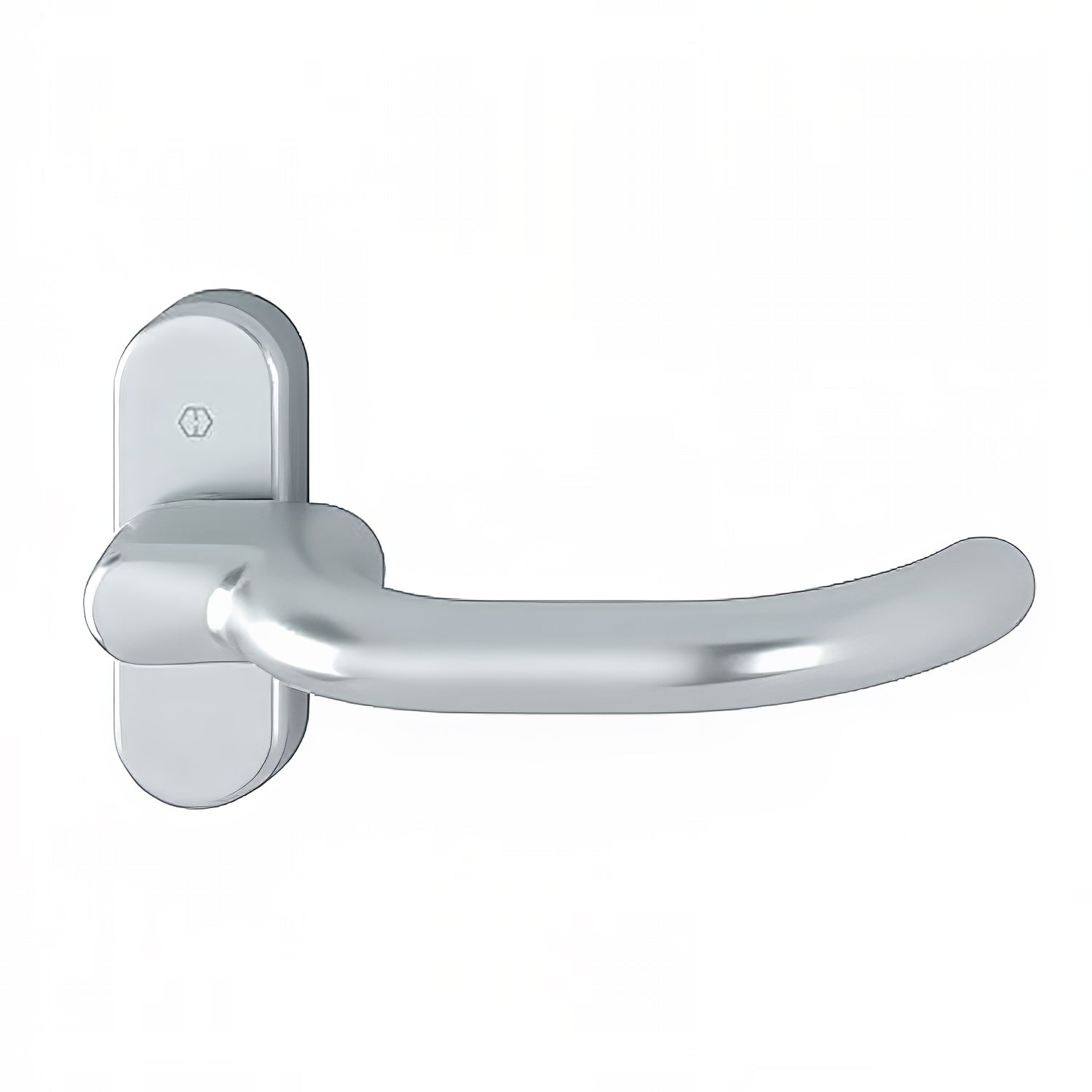

HOPPE Aluminum Rosette Door Handle Set

Non-Keyed Levers for Balcony and Terrace Doors

The handle is designed to screw into the door or window panel. It does not screw through the door, or else it will hit the locking mechanism.

Compatible with doors 50mm–59mm (1-15/16 in. to 2-3/16 in.) thick, or with the purchase of a longer or shorter spindle, could be adapted to fit your application. Please see Related Items below for more spindle options; contact customer service to verify suitable fit.

Specifications:

• Application:  Door handle set / Handle to Handle
• Brand:  HOPPE
• Model Name:  Paris
• Model Number:  138G/49
• Door Thickness: 50-59mm (will fit other thickness with longer or shorter spindle, sold separately)
• Connection:  HOPPE Solid Pin Spindle

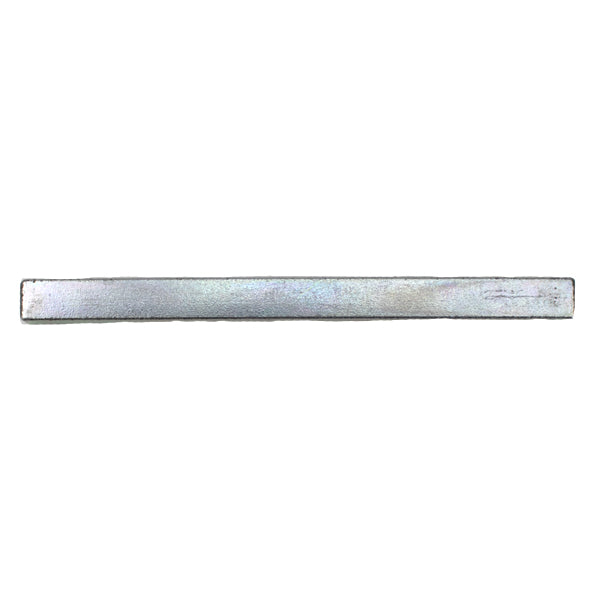

• Spindle Dimensions:  5/16 inch × 5/16 inch × 4-1/8 inch (8×8×104mm)
• Screw Hole Spacing:  1.97 inch (50mm)
• Screw Fastening Feature:  Concealed, for multi-purpose screws
• Cover:  Partial cover cap
• Bearing:  Cranked door handles fixed/rotatable, return springs, maintenance-free plain bearings
• Handle Material:  Zamak
• Color/Finish:  Aluminum Silver F1

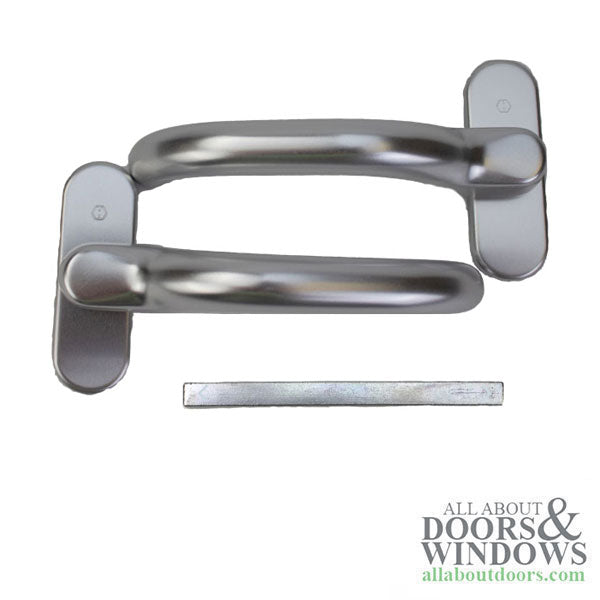

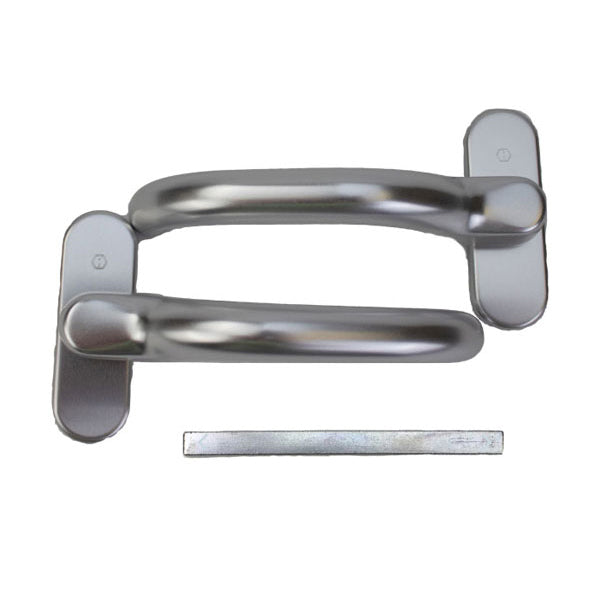

Includes:

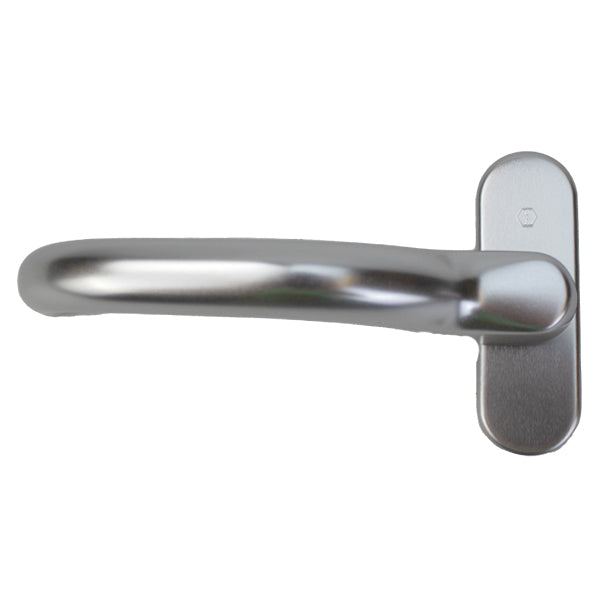

• Interior Handle
• Exterior Handle
• Spindle

Screws not included.

Note:  Pull up on inside lip, spin to expose screw holes.
