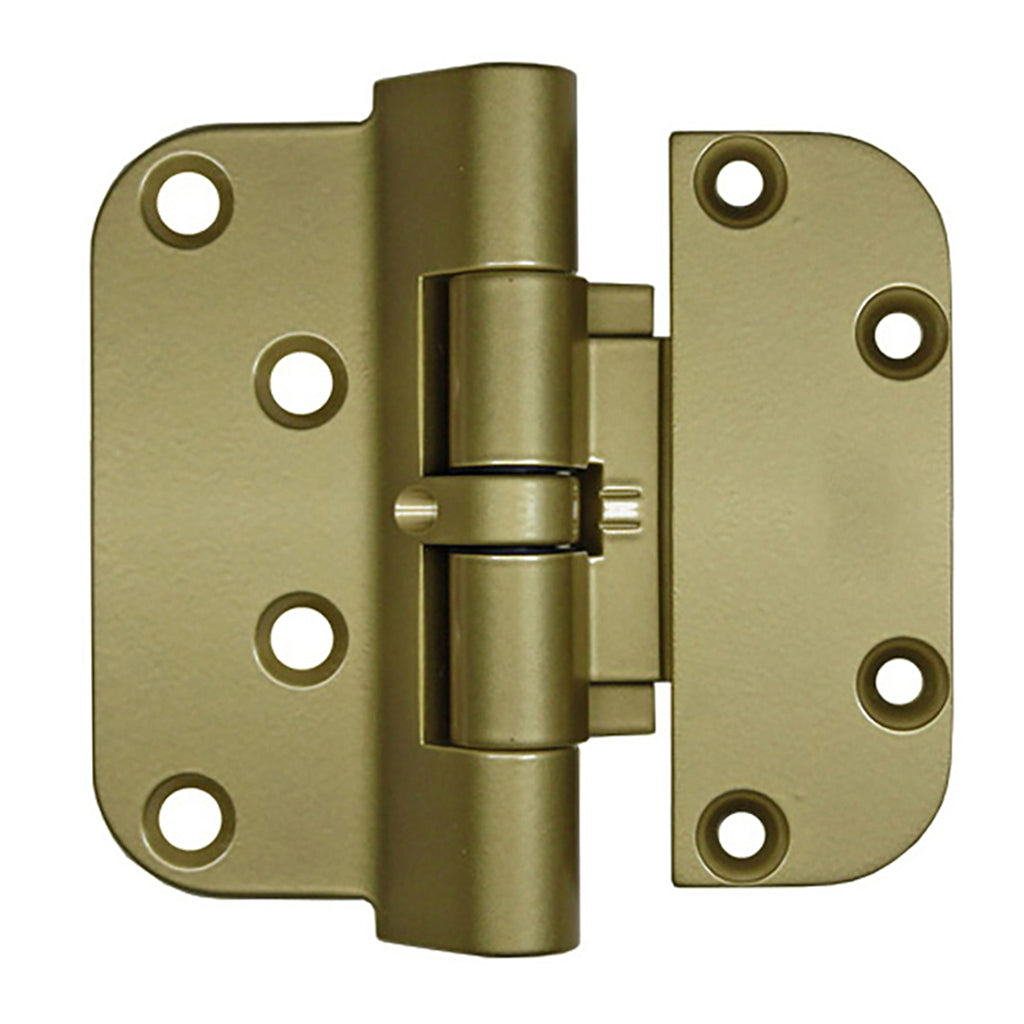

Hoppe F1713, 2009 Set Hinge, LHI / RHO - Gold

Hoppe New 2009 Ultimate Adjustable Hinge

This item has been discontinued and is limited to existing inventory

* Adjusts both vertically (Set Hinge) and horizontally (Guide Hinge) by +/- 1/8" (+/- 3mm) for a perfect swing without costly repairs or carpentry work

* Large 3/16" hex head screws make adjustments effortless, and prevent the stripping that can occur on comparable products with Phillips head or smaller hex head adjustment screws

* All Set Hinges are equipped with non-removable pins for security, making HOPPE hinges the ideal solution for both inswing and outswing doors

Material: Aluminum

Hinge Type: Set for Vertical Adjustment

Hinge Style: NRP - Non Removable Pin - Hinges does not come apart

Color / Finish: Gold

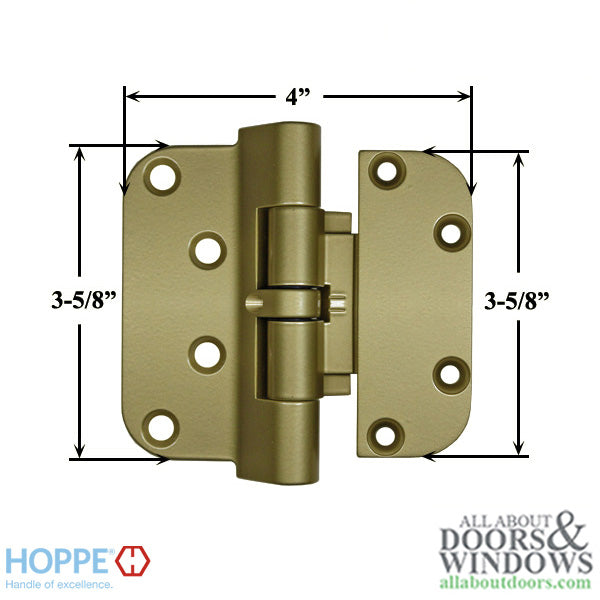

Size: 4 inches Wide by 3-5/8 tall (Set additional images)

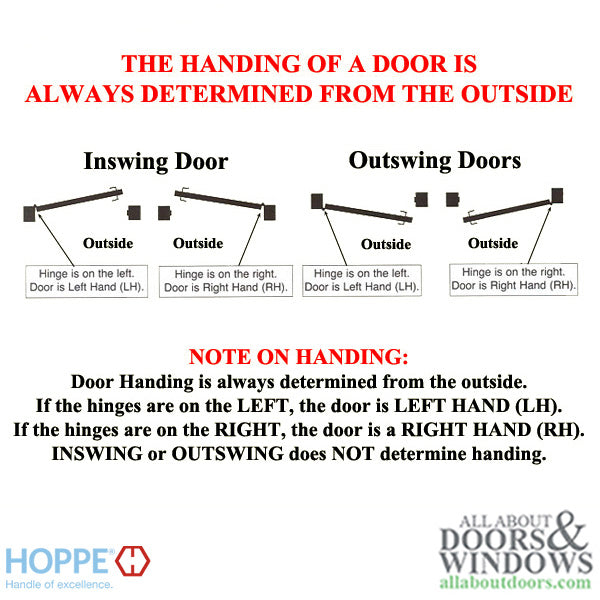

Handed: Yes - LHI (Left hand inswing) RHO (Right hand outswing)

Opposite Handling: 3033924

Guide Hinge: 3033852

NOTE:

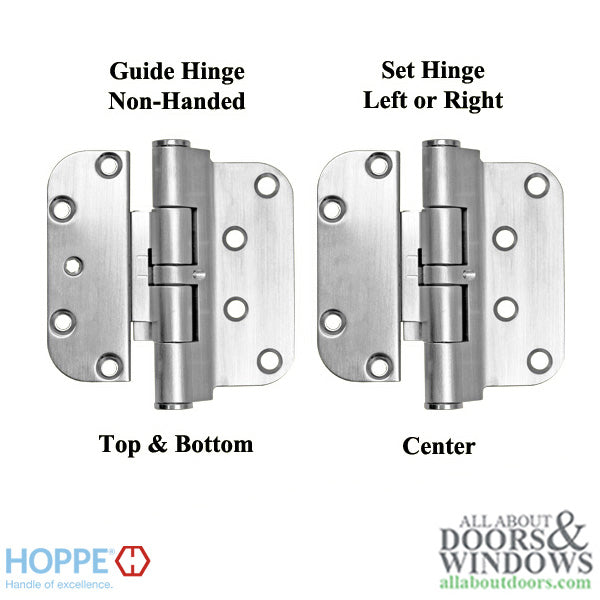

A 3 hinge door will have 1 set hinge (middle) and 2 guide hinges( top & bottom)

Screws are not included with hinges. Must be purchased separately

Each hinge requires 8 screws

4x #10 x 1-1/4" for door panel hinge leaf

3x #10 x 3/4" for jamb side hinge leaf

1x #10 x 2-1/4" for jamb side hinge leaf

RESOURCES:

Guide to Adjusting HOPPE Hinges

Installation Guide for HOPPE Hinges

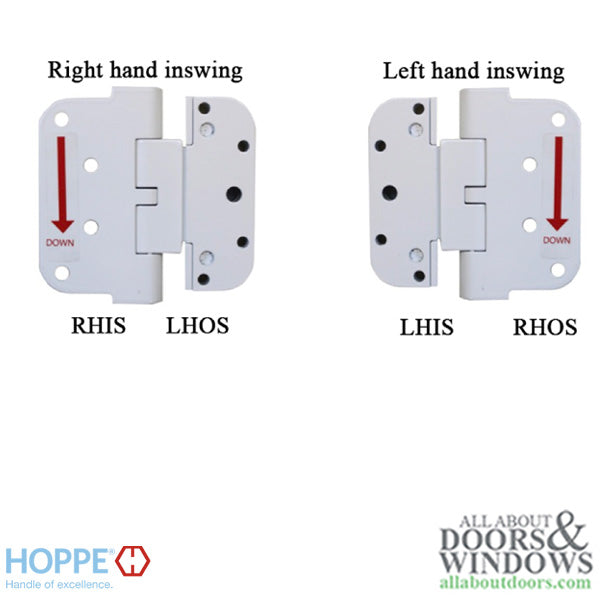

RHIS - Right Hand Inswing

RHOS - Right Hand Outswing

LHIS - Left Hand Inswing

LHOS - Left Hand Outswing
