HOPPE Top Extension for the HLS2000 - It does not include the bottom assembly with Gearbox

Compatible only with the HLS2000 Series

Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

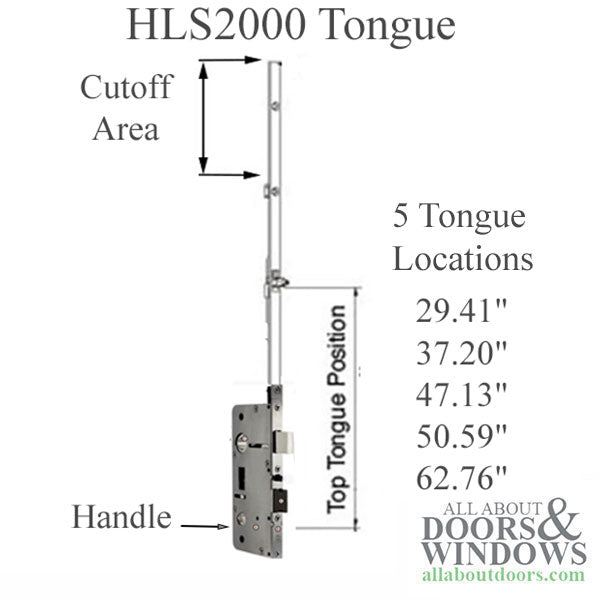

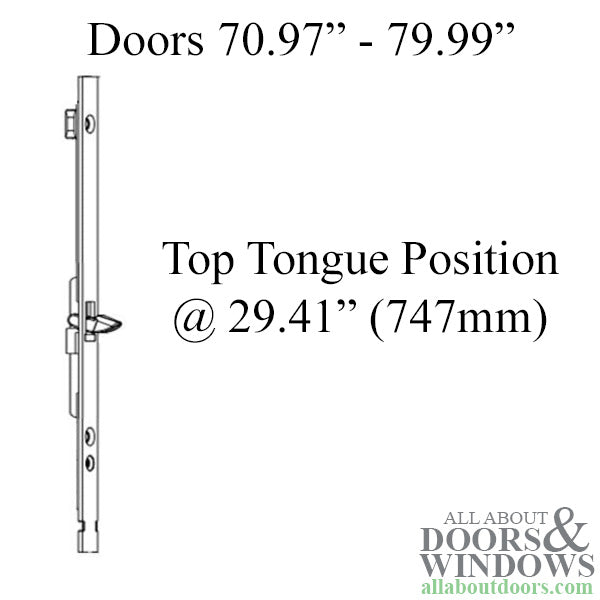

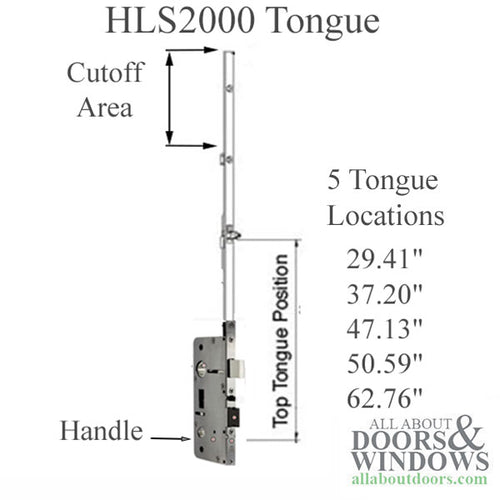

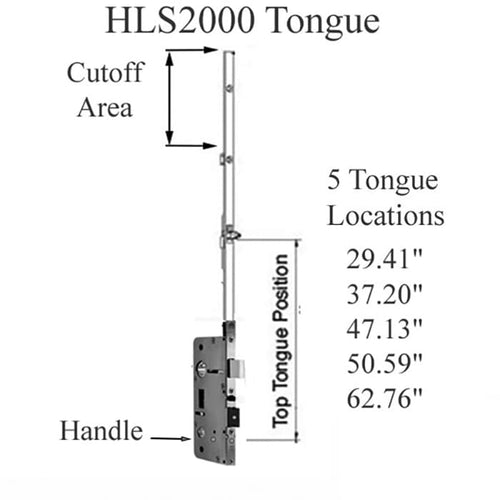

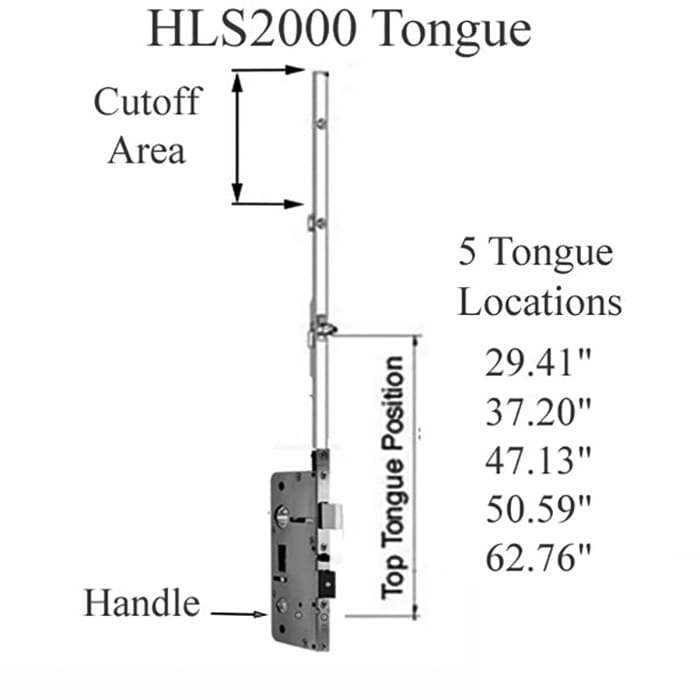

Top Tongue Position:  29.41 inches (747mm)

Extension Length: 38.27 inches (972mm)

Overall Door Height: 70.99 to 79.99 inches (1802-2031mm)

Maximum Cutoff: 9.02 inches ( 229mm)

Material: Stainless Steel

Number of Screws: 5

Additional Information:

When both Upper and Lower assemblies are connected fits doors from 70.99 to 79.99  inches tall with 36 inch handle height.

The top may be cut a maximum of  9.02 inches, to adjust for different door heights.

IMPORTANT NOTE: This upper extension only fits the HLS2000 multipoint lock
