Hoppe HLS7 Tongue Active Gear, 45/92, Tongue @ 29.65", Left Hand

ALL HLS 7 have the same backsets & Are Handed for Left or Right hand doors
Handing can be changed if needed
Hoppe Series: HLS 7 (one motion retracts deadbolt with turn of handle)

Hoppe Version: Tongue

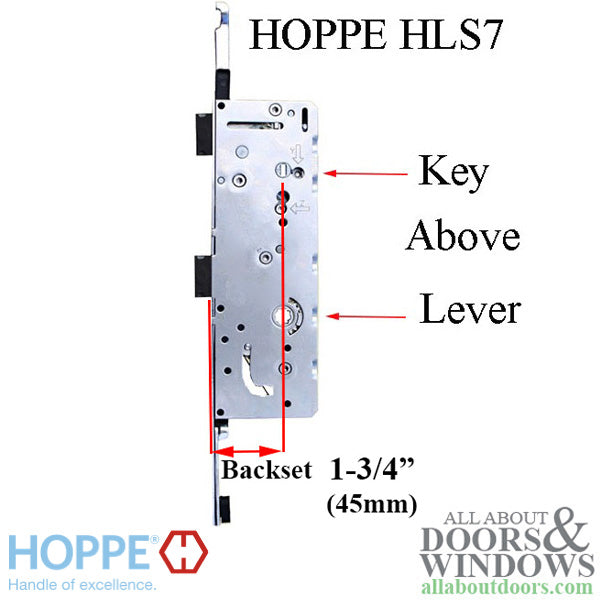

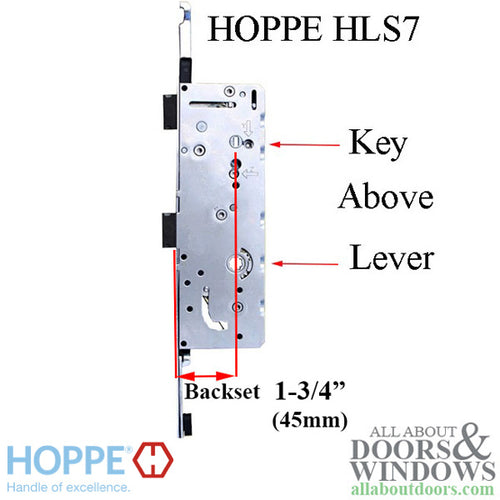

Backset: 1-3/4 inch (45mm) - Only one available
Handing: Left Hand
Spindle Hub Diameter: : 5/16 inch (8mm)
Spindle hub has a blocker and uses 1/2 spindles attached to handle set
Handle Height: 36 inch

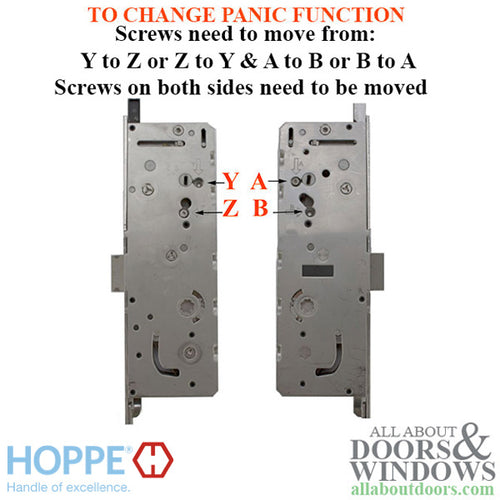

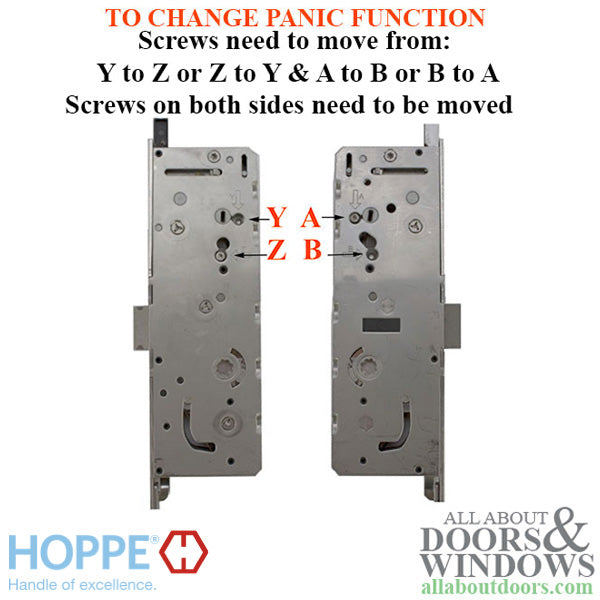

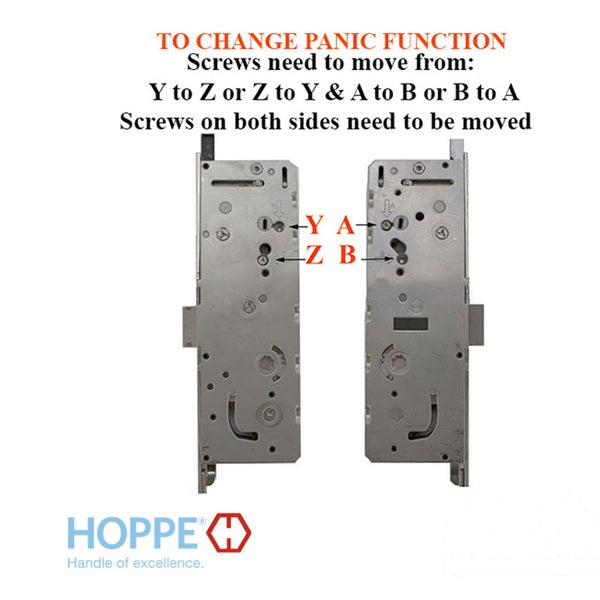

This Multipoint Lock has a Panic release function on the inside.
From inside to exit the locked door, push down on lever and the deadbolt and latch will retract.

Operation of Lock

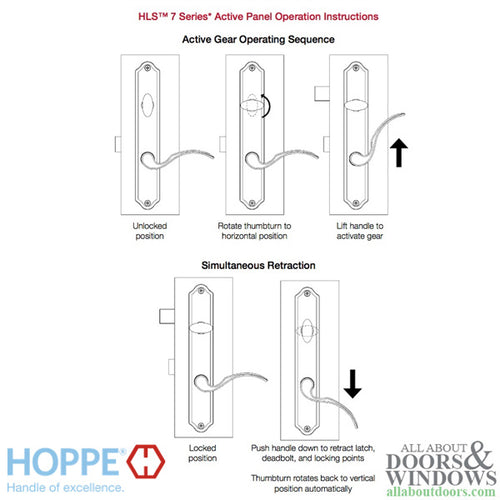

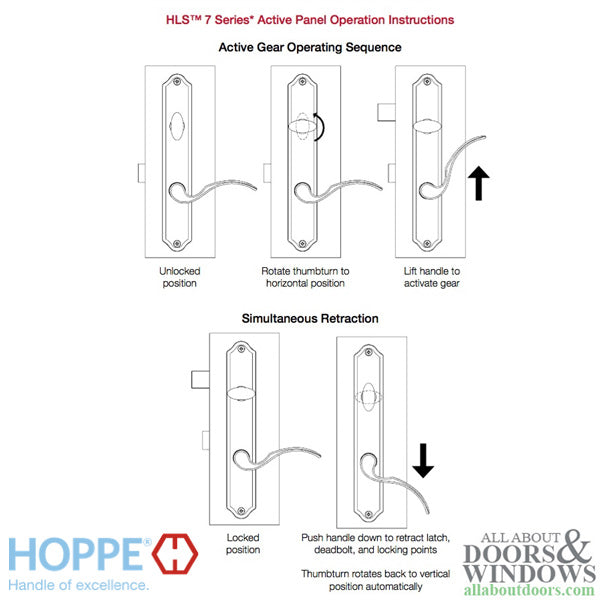

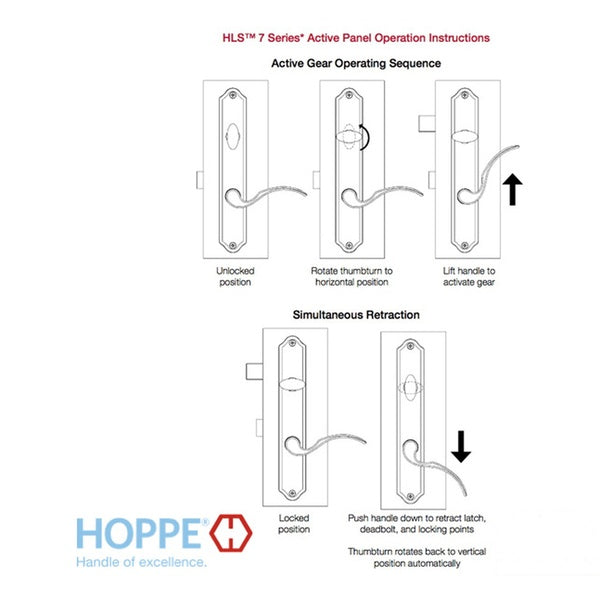

To Lock door
1. Turn thumb turn to horizontal position or key to locked position
2. Lift handle and deadbolt will extend (outside is locked)

To Unlock door from Inside
1. Depress Lever,  latch and deadbolt will retract. Thumbturn rotates back to vertical position automatically

To Unlock door from Outside
1. Insert key and turn
2. Depress lever to open door

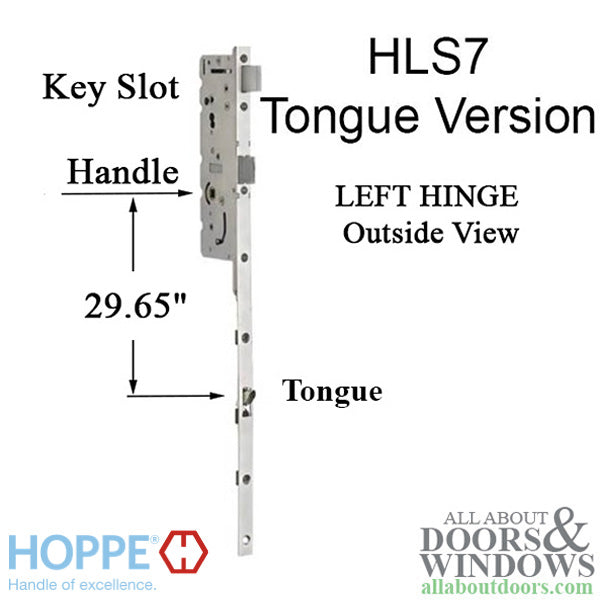

NOTE 1: This is the bottom 1/2 of MP Lock system -  Top extension is determined by door height and Tongue Position
