Hoppe HLS9250 16/25/92 Swinghook Assembly- 1" Backset
Use the arrows or swipe left to view all images for this product
Hoppe HLS9250 16/25/92 Swinghook Assembly- 1" Backset
Part Number: $240.08Hoppe HLS9250 Swinghook Assembly for narrow stile doors.

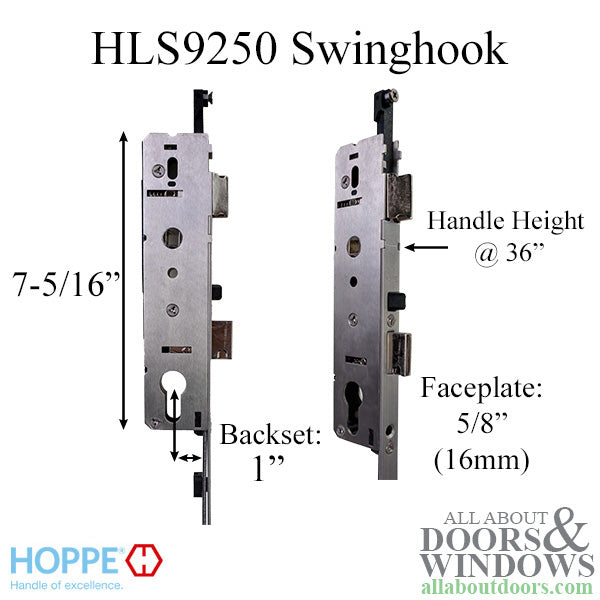

Gearbox Length: 7-5/16"
Backset: 1 inch (25mm)
Faceplate: 5/8" (16mm)

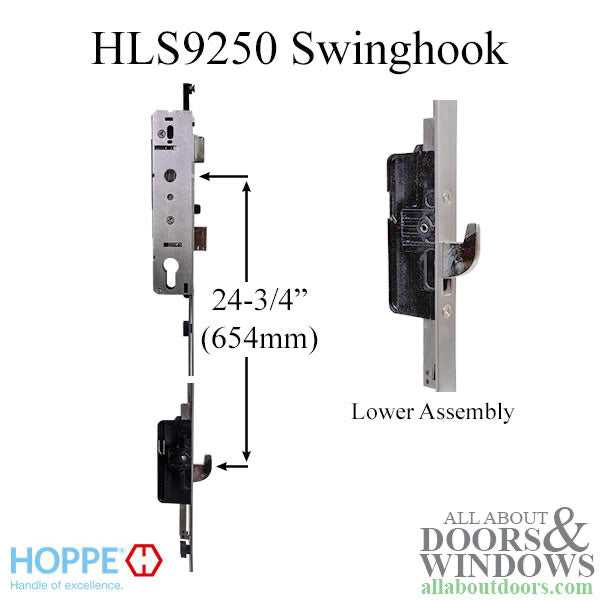

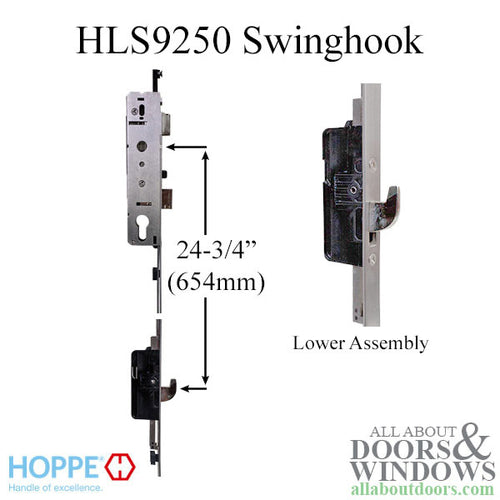

Handle to Swinghook Distance: 24.41 (620mm) 24-3/4" Center of Hook
Handle Height: 36 inch (914mm)
Handle Hub: 5/16 inch (8mm) Square
Handle to Cylinder PZ: 3-5/8 inch (92mm)
Country of Origin: USA
Priced and sold each.
