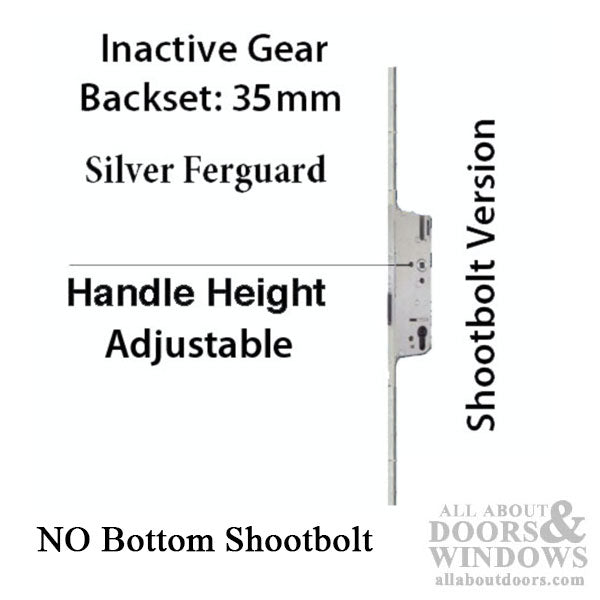

G-U Inactive Multipoint Lock Shootbolt Assembly, Adjustable Handle Height for passive door.
(Main Assembly only, does NOT include top or bottom Shootbolt)

Series: Europa, Key below Handle
Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/8 inch (35mm)
Handle to Cylinder PZ: 3-5/8 inch (92mm)
Function: Shootbolt for inactive Door, 2 point Lock
Handle Height: Adjustable, Standard is 35 Inches (889mm)
Cylinder Type: American with Flat Tailpiece
Length: 72.047 inches (1830mm)
Faceplate Finish: Silver Ferguard
Spindle Size: 5/16 inch (8mm)

NOTE:

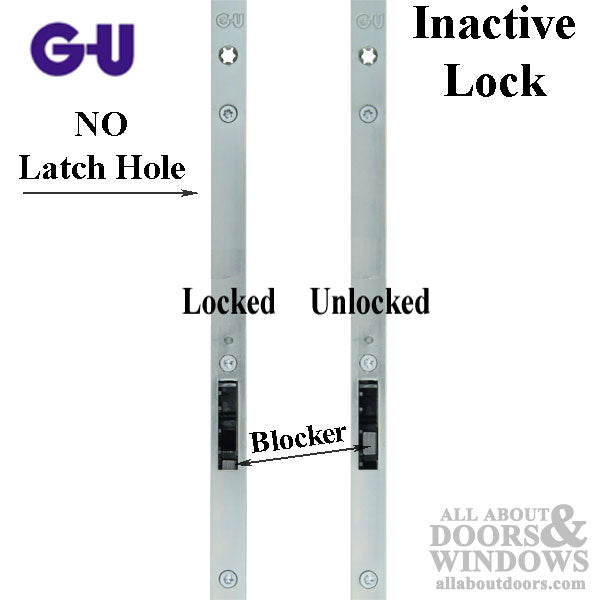

This lock does not have a receptacle for a spring latch and must be used with an Astragal
Active door deadbolt enters receiving hole in face of inactive lock but only when inactive handles have been lifted and shootbolts engaged.
When handles of inactive lock are turned up and shootbolts engaged, the mechanism in the receiver hole lifts up allowing the deadbolt to fit inside.
Unless passive door is shut and shootbolts engaged, active door cannot be locked.

Related G-U Multipoint Lock Parts:

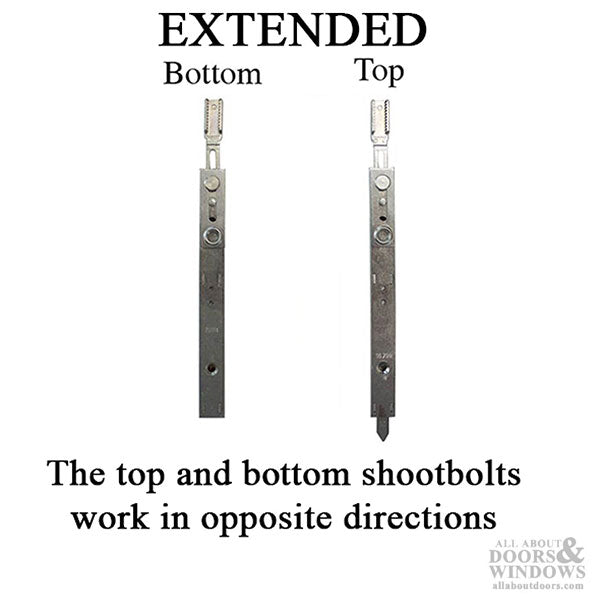

G-20416-00-0-1: Top Shootbolt, Reversing Gear - Silver (contact office)
G-20415-00-0-1: - Bottom Shootbolt - Silver (contact office)
40325: Middle Extension, 19.685 inches (500mm) Doors over 81-1/2 inches
9-34442-00-0-0: Brass Sleeve / Shootbolt Socket Strike - Brass
